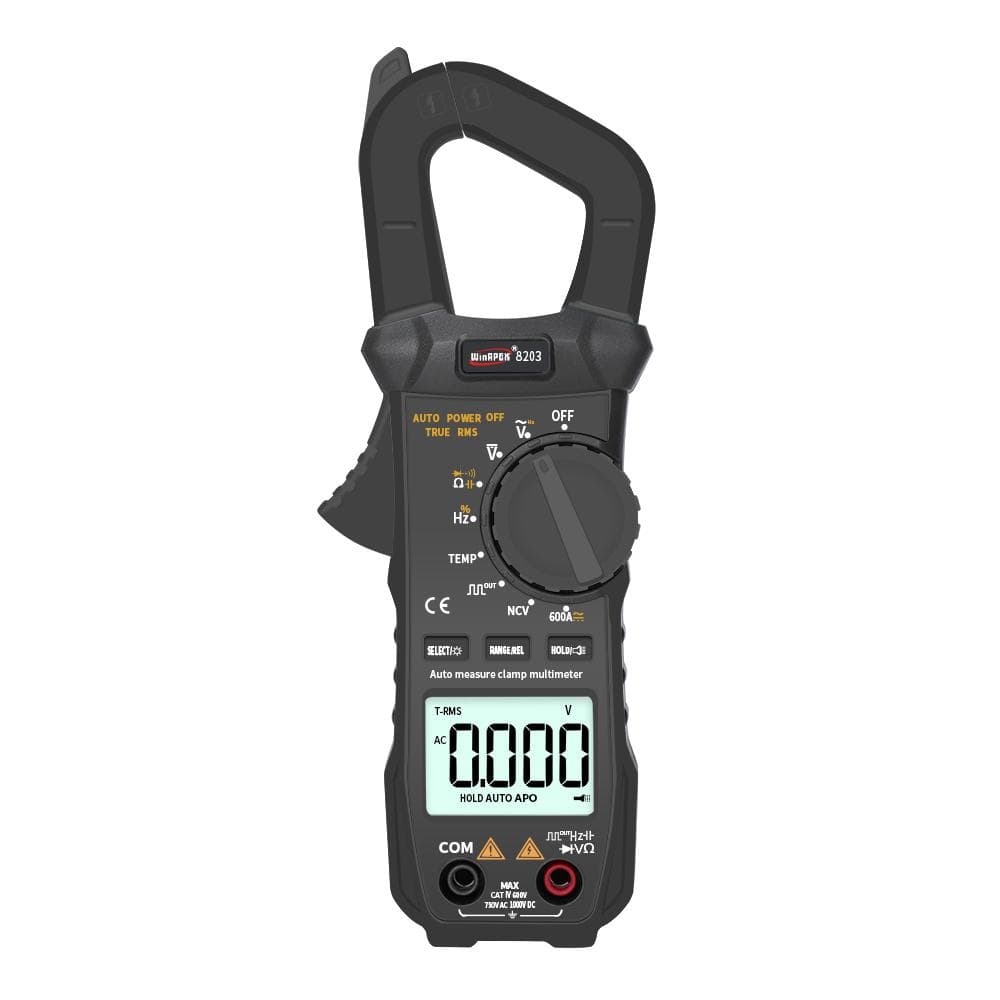

WinAPEX Portable Pocket Multimeter 6000 Counts True RMS Digital Clamp Meter 8203

About this item

• This is a pocket-sized 3 5/6-digit automatic digital meter. It has stable performance, high accuracy, high reliability, clear reading and overload protection. Features: Mini and portable, easy to use and operate. Accurate and real-time measurement of RMS values of various voltage waveforms without distortion. Effectively eliminates the effects of lead resistance distributed capacitance or interference signals. The clamp unit measures vertically through the center of the hole. Driven by AAA 1.5V battery (not included), the instrument adopts large LCD display screen and adopts boost power source. Even at the edge of 2.3V low battery, it can ensure the high brightness of backlight and flashlight. The instrument s backlight can be turned on and off automatically after 15 seconds. It is a perfect tool for laboratories, factories, radio enthusiasts and families. Function: AC-DC voltage, AC current (AC current 8202/AC-DC current 8203), resistance, capacitance, frequency, diode, buzzer, true RMS, NCV, square, TEMP, flashlight. Specifications: Material: ABS Color: black Model: 8202, 8203 (optional) Display: LCD Maximum display: 5999 (3 5/6) bit automatic polarity display Measurement method: double integral A/D conversion Sampling rate: about 3 times per second Over range display: the highest position shows OL Working environment: (0~40) celsius , relative humidity less than 80% Battery: 2 * AAA battery (not included) LCD size: 33 * 23mm / 1.3 * 0.9in DC voltage range: 6V/60V/600V/1000V 6000 counts: 6V/60V/600V: +/-(0.5%+3) 1000V: +/-(0.8%+10) DC voltage resolution: 0.001V/0.01V/0.1V/1V AC voltage range: 6V/60V/600V/750V 6000 counts: 6V/60V/600V: +/-(0.8%+3) 750V: +/-(1.2%+10) AC voltage resolution: 0.001V/0.01V/0.1V/1V AC current range: 6A/60A/600A 6000 counts: +/-(2%+30) AC current resolution: 0.001A/0.01A/0.1A The difference between 8203 and 8202: 8203 can measure DC current DC current range: 60A/600A 6000 counts: +/-(2%+30) DC current resolution: 0.01A/0.1A Resistance range: 600 Ohm /6k Ohm /60k Ohm /600k Ohm /6M Ohm /40M Ohm 6000 counts: 600 Ohm : +/-(0.8%+5) 6K Ohm /60K Ohm /600K Ohm /6M Ohm : +/-(0.8%+3) 40M Ohm : +/-(2.5%+3) Resistance resolution: 0.1 Ohm /1 Ohm /10 Ohm /100 Ohm /1K Ohm /10K Ohm Capacitance range: 60nF/600nF 6000 counts: 60nF/600nF 6mF/30mF: +/-(5%+3) Capacitance resolution: 10pF/100pF/1nF/10nF/100nF Frequency range: 10Hz/100Hz/1KHz/10KHz/100KHz/1MHz/10MHz 6000 counts: +/-(0.1%+3) Frequency resolution: 0.01Hz/0.1Hz/1Hz/10Hz/100Hz/1KHz/10KHz Temperature measurement range: (-20-1000) celsius /(0-1832) Fahrenheit 6000 counts: (-20-1000) celsius : +/-(1.0%+5) less than 400 celsius ; +/-(1.5%+15) more than 400 celsius (0-1832) Fahrenheit : +/-(0.75%+5) less than 750 Fahrenheit ; +/-(1.5%+15) more than 750 Fahrenheit Temperature measurement resolution: 1 celsius /1 Fahrenheit Square wave output: YES NCV: YES Full unit symbol: YES Backlight manual/Auto off: YES True RMS measurement: YES Flashlight lighting: YES Item size: 176 * 67mm / 6.9 * 2.6in Item weight: 300g / 10.6ounce Package size: 205 * 115 * 42mm / 8.1 * 4.5 * 1.7in Package weight: 330g / 11.6ounce Package List: 1 * Digital Clamp Meter 1 * Temperature Probe 1 * Pair of Test Pen 1 * Bag 1 * Use Manual
