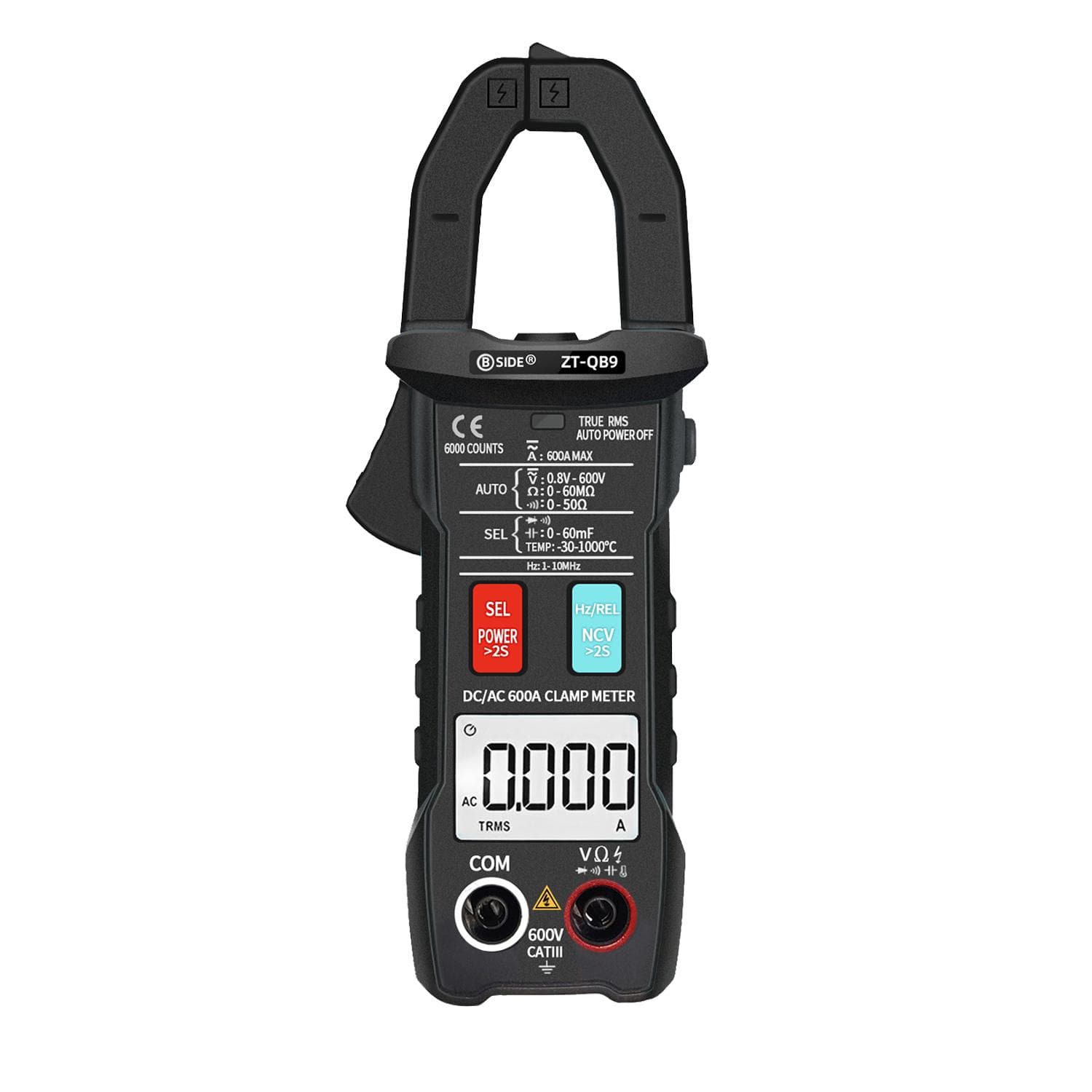

BSIDE 6000 Counts Digital Clamp Meter True RMS Multimeter Clamp Ammeter AC DC Voltage Current Meter black

About this item

• Including the function of measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, inrush current, diode and continuity test, NCV voltage test and more, the true RMS clamp meter is compact, high accuracy, and easy to use. Features: Multifunctional Clamp Meter: can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, inrush current, diode and continuity test, and NCV voltage test. Measuring Range: 600V AC/DC voltage, 600A AC/DC current, 60M Ohm resistance, 60mF capacitance, and -30~1000 celsius temperature. Data Hold: hold the measured data for conveniently checking or observing data. Backlight Function: 1.53-inch LCD screen with backlight ON/OFF switchable for display data clearly. 26mm Jaw Opening: jaw opening of 26mm to measure current without touching or interrupting the circuit. Power Supply & Auto-off: powered by 2pcs 1.5V AA battery(NOT included), and the clamp meter will automatically powers off after 15 minutes of inactivity. Accessories: comes with a pair of test leads and temperature probe for convenient measurement, and a black zipper pouch for storing the clamp meter. High Reliability & Efficiency: CAT III 600V safety level, with good reliability and high precision, really practical for electrical equipment testing and maintenance. Specifications: Material: ABS Safety Rating: CAT III 600V ? Display Count: 6000 Range Control: Auto range Sampling Rate: 3 times/second True RMS: Yes Data Hold: Yes Low Battery Indicator: Yes Auto Power-off: 15 minutes Jaw Opening: 26mm DC Voltage Range: 6.000V/60.00V/600.0V DC Voltage Resolution: 0.001V/0.01V/1V AC Voltage Range: 6.000V/60.00V/600.0V AC Voltage Resolution: 0.001V/0.01V/1V DC Current Range: 60.00A/600.0A DC Current Resolution: 0.01A/0.1A AC Current Range: 60.00A/600.0A AC Current Resolution: 0.1A/0.1A Resistance Range: 6.000k Ohm /60.00k Ohm /600.0k Ohm /6.000M Ohm /60.00M Ohm Resistance Resolution: 0.001k Ohm /0.01k Ohm /0.1k Ohm /0.001M Ohm /0.01M Ohm Capacitance Range: 6.000nF/60.00nF/600.0nF/6.000uF/60.00uF/600.0uF/6.000mF/60.00mF Capacitance Resolution: 0.001nF/0.01nF/0.1nF/0.001uF/0.01uF/0.1uF/0.001mF/0.01mF Frequency Range: 6.000Hz/60.00Hz/600.0Hz/6.000kHz/60.00kHz/600.0kHz/6.000MHz/10.00MHz Frequency Resolution: 0.001Hz/0.01Hz/0.1Hz/0.001kHz/0.01kHz/0.1kHz/0.001MHz/0.01MHz Temperature: -30~1000 celsius (-22~1832 Fahrenheit ) Temperature Accuracy: 1 celsius (1 Fahrenheit ) Diode: Yes Continuity: Yes Working Temperature & Humidity: 0~40 celsius , less than 75%RH Storage Temperature & Humidity: -20~60 celsius , less than 80%RH Power Supply: 2 * 1.5V AA battery (NOT included) Item Size: 172 * 64 * 32mm / 6.77 * 2.52 * 1.26in Item Weight: 161g / 5.68oz Package Weight: 340g / 11.99oz Package Size: 21.3 * 10.2 * 4.6cm / 8.39 * 4.02 * 1.81in Packing List: 1 * Clamp Meter 2 * Test Lead 1 * Temperature Probe 1 * Storage Bag 1 * Manual (English)
