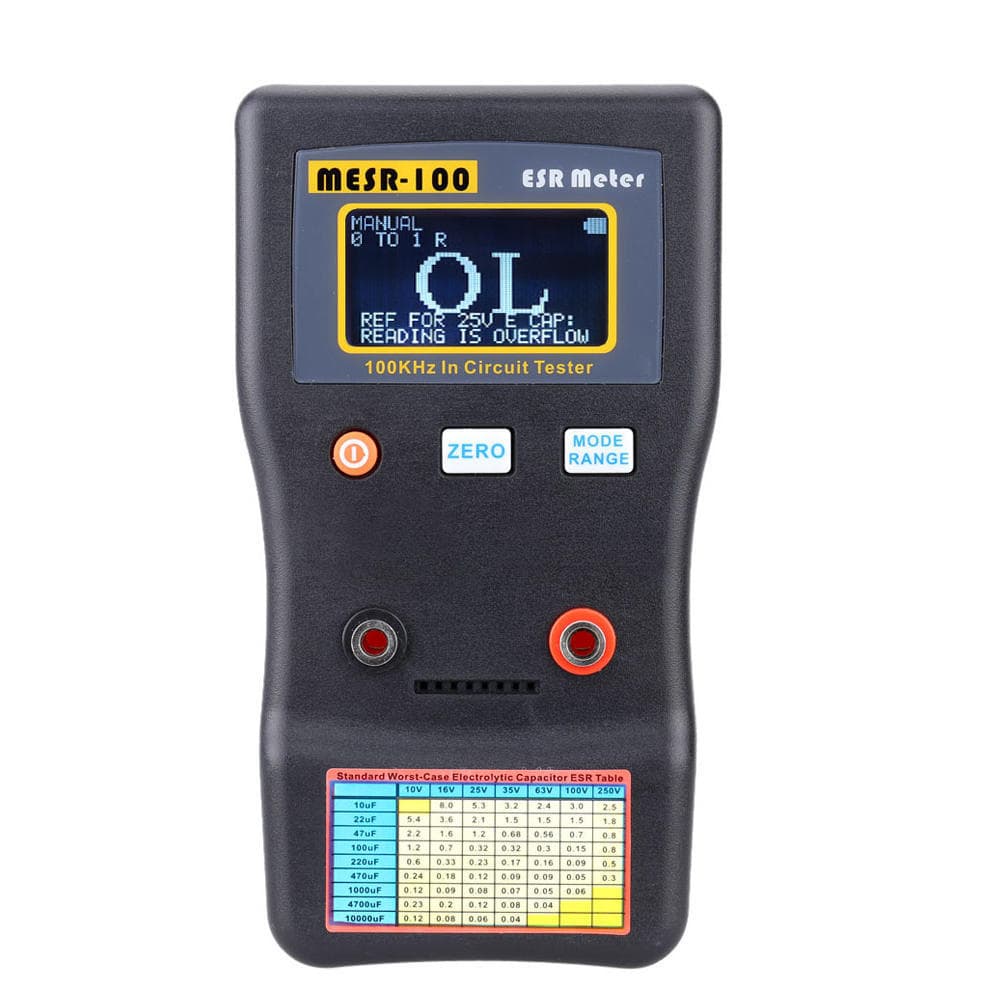

MESR-100 ESR Capacitance Ohm Meter Professional Measuring Capacitance Resistance Capacitor Circuit black & yellow

About this item

• This MESR-100 V2 auto-ranging capacitor ESR and low Ohm meter measuring range from 0.001 to 100.0R, support in circuit testing. Using true 100 KHz sine wave to measure the ESR value, which is equal to the testing method of capacitor manufacturer. Features: It is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C). The impedance become small, and we can then measure the true series resistor value. Using this theory, we can measure the capacitor is bad/ damaged or good in condition. Our ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test.? During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not. Dual terminal, for fast and easy inspect general capacitor or resistor, a printed ESR table for fast check.? Specifications: Color: Black Range ? ? ? ? Accuracy(After zero, ? ? Refresh Time(Manual Mode)? ? ? ? ? ? ? tested with 1,10,100R ? ?Auto mode take 0 to 2s, more time? ? ? ? ? ? ? resistor) ? ? ? ? ? ?depends on capacitance value. 0.000 to 1.000R ?1%+2Digit ? ? ? ? ? ? ~0.4s 1.000 to 10.00R ?1%+1Digit ? ? ? ? ? ? ~0.4s 10.00 to 100.0R ?2%+1Digit ? ? ? ? ? ? ~0.4s Accuracy: Up to 1% (detail on above table)? Wide Measurement Range: more than 1uF High Resolution: 4 digit, or 0.001Ohm @ 1 Ohm range Measuring voltage: less than ~40mV RMS (TESTING VOLTAGE) External Power: 5V micro USB Operating Current: 0.02A Battery: 2 * AA 1.5V Battery (not included) Battery Life time: more than 80 Hours Item Size: Approx 14.5 * 8 * 3cm / 5.7 * 3.1 * 1.2in Item Weight: Approx 139.6g / 4.9oz Package Size: Approx 17 * 9 * 5cm / 6.7 * 3.5 * 2.0in Package Weight: Approx 218g / 7.7oz Package List: 1 * Capacitance Meter 2 * Test Clips 1 * User Manual
