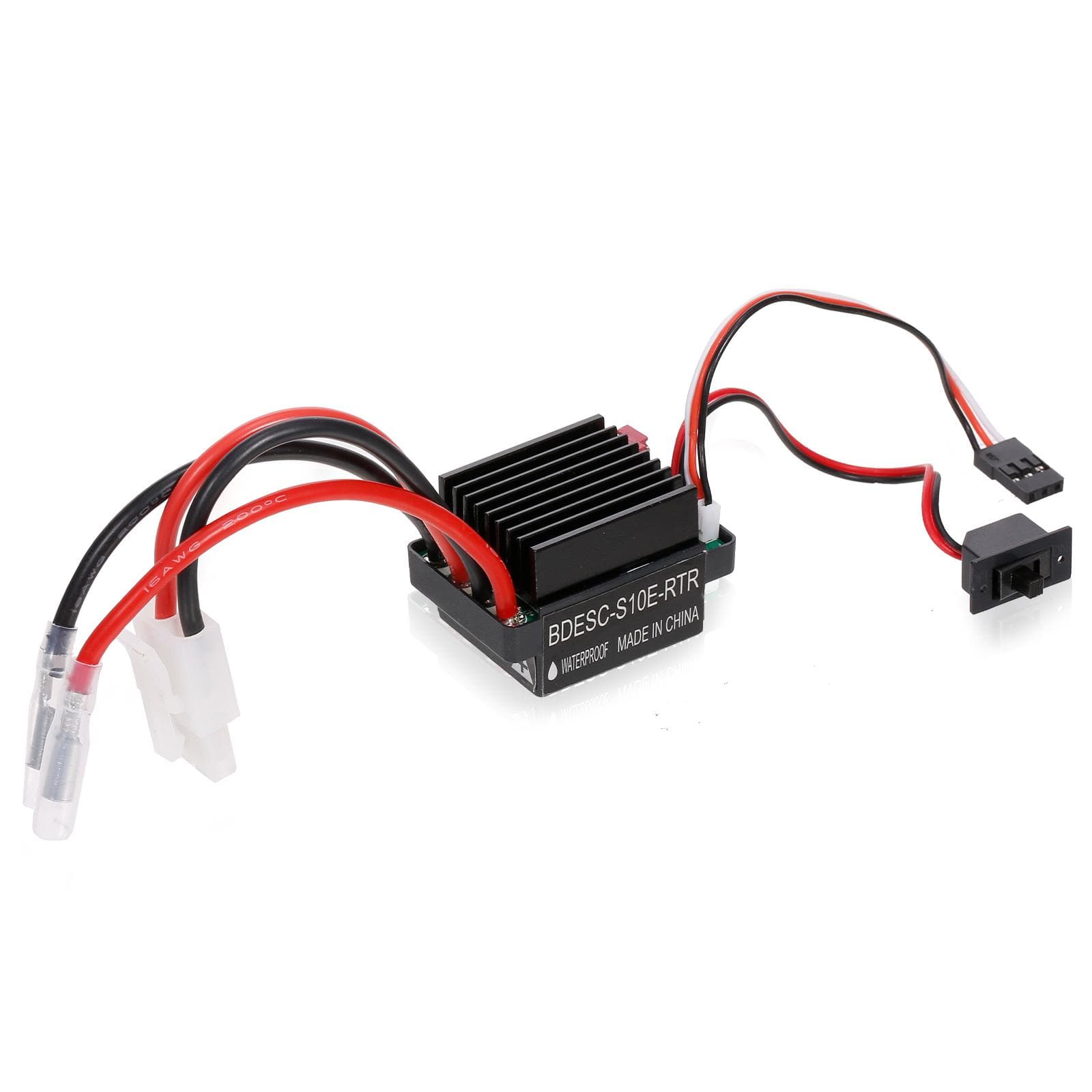

320A ESC Brushed Forward Reverse Electric Speed Controller with Brake Waterproof Support 2-3S multicolour

About this item

• This 320A ESC with the brake function, waterproof, support 2S-3S lithium battery, support forward, backward.  Feature: 320A two-way electronic speed controller with brake (with waterproof function). Support battery: lithium battery 2-3 groups (7.4V-11.1V). Current parameters: 320A forward, 160A backward, 270A braking, continuous current: 80A. BEC output: voltage 5V, current 2A. Heat dissipation efficiently, size: 43mm (length) * 29mm (width) * 27mm (height), (Including the heat sink part). Weight: 41g. Find the center position automatically, high-frequency drive system, suitable for car and ship models. Replacement for HSP Redcat Traxxas Tamiya RC Car. Specifications: Item: 320A brush ESC Current parameters: 320A forward, 160A backward, 270A braking, continuous current: 80A BEC output: voltage 5V, current 2A Waterproof: Yes Battery interface: Tamiya Suitable motor: 380, 540, etc ESC support: 2S-3S lithium battery Size: 43mm (length) * 29mm (width) * 27mm (height) Note: *This ESC, with 3S (12.6V), can only work with a motor no greater than 380. With 2S (8.4V), only work with a motor no greater than 540. *Turn on the power switch of the ESC, the motor beeps, and then turn on the transmitter power, the motor will emit a do~la~mi sound, which proves that the remote control signal has been successfully connected to the ESC. * There could be some deviations due to manual measurement or slight color difference owing to photographing condition. Thank you for your understanding. Package Information: Package size: 10.5*7.5*3.5cm Package weight: 44g Plastic Package Packing List: 1* 320A brushed ESC
