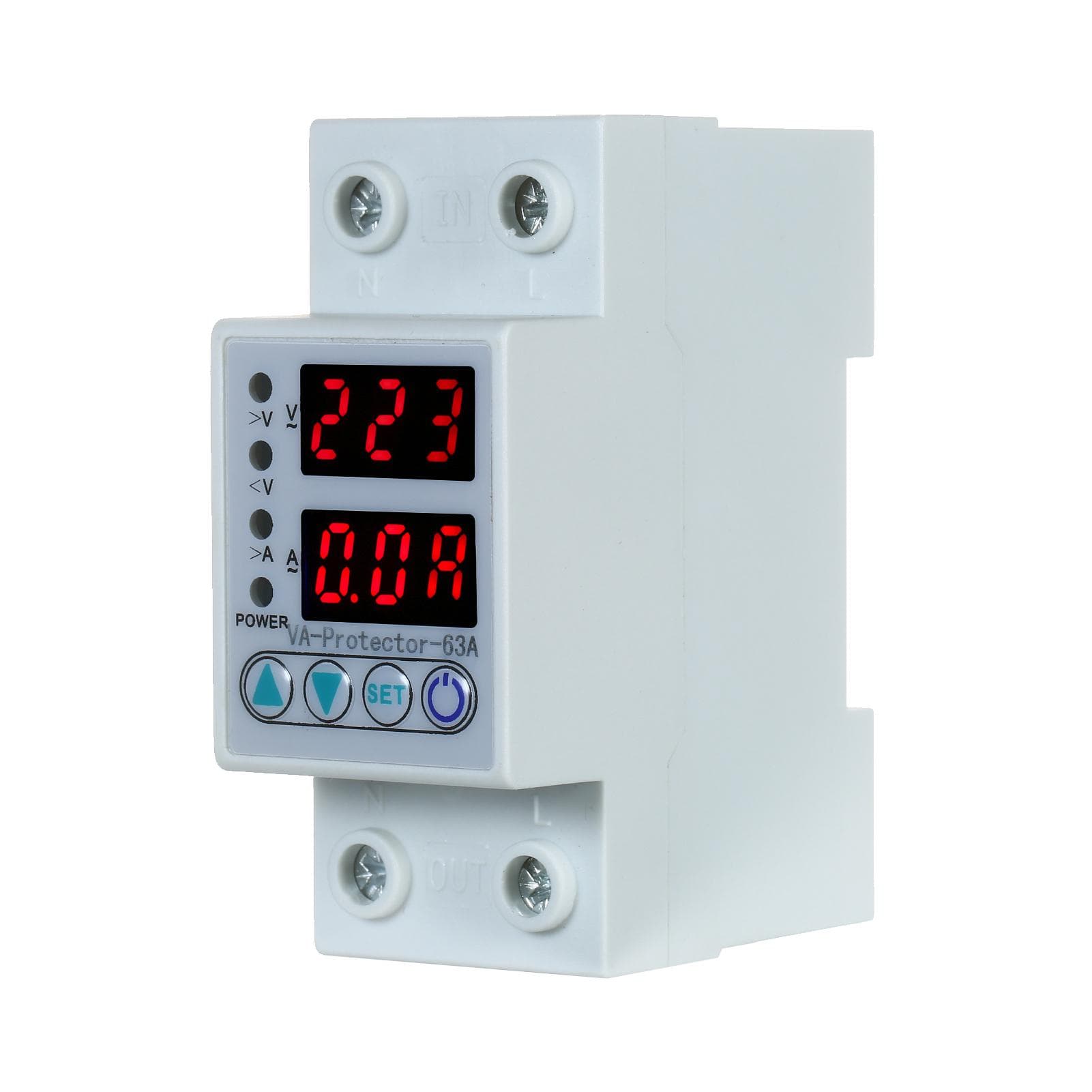

63A 220V Din Rail Adjustable Over Voltage and Under Voltage Protective Device Protector Relay Over white

About this item

• The double LED display adjustable voltage current protector is suitable for single-phase AC 220V, 50/60Hz, rated working current 63A.? It is mainly used for residential household box entry or over-voltage, under-voltage or over-current protection of distribution lines for single-phase electrical equipment. Its main feature is when the circuit has over-voltage or under-voltage, over-current problems, the product can cut off the power supply instantaneously to protect the electrical equipment from being damaged, besides,the protector can automatically turn on the power supply when the circuit voltage returns to the normal. ?The over-voltage, under-voltage and over-current values of this product can all be set up by yourself and can be adjusted on the basis of local practical condition. Features: Voltage & Current Protection -- Cut off the power when the circuit has over-voltage,under-voltage or over-current.? Protect your home electrical equipment from being damaged. Automatic Reconnect -- Turn on the power supply when the circuit voltage and current returns to the normal. Adjustable -- Over voltage value range 230V-300V, under voltage value range 140V-210V, over current value 1-63A. Fault recovery delay time adjustable from 1-600 seconds Double LED Display --?Two seleprate digital LED display can display the real voltage, current independently for easier and clearer reading, can be used as a voltmeter and ammeter. Customizable -- The over-voltage, under-voltage and over-current values of this product can all be set up by yourself and can be adjusted on the basis of local practical condition. Specification: Rated Supply Voltage: AC 220V Operation Voltage Range: AC 80V-400V (Single Phase) Rated Frequency: 50/60 Hz Electric Current ( more than A)Setting Range: 1-63A Over Voltage ( more than U) Setting Range:? 230-300V Under Voltage ( less than U) Setting Range:? 140-210V Error: 2 more than U and less than U Trip Delay: 0.5S Reset / Start Delay: 1s-600s Voltage Measurement Accuracy: 1percent Rated Insulation Voltage: 400V Output Contact: 1NO Electrical Life: 10^5 Mechanical Lift: 10^6 Protection Degree: IP20 Installation: Din Rail Item Size: 85*65*37mm/3.35*2.56*1.46in Packing List: 1 * Voltage and AMP Protector 1 * User Manual
