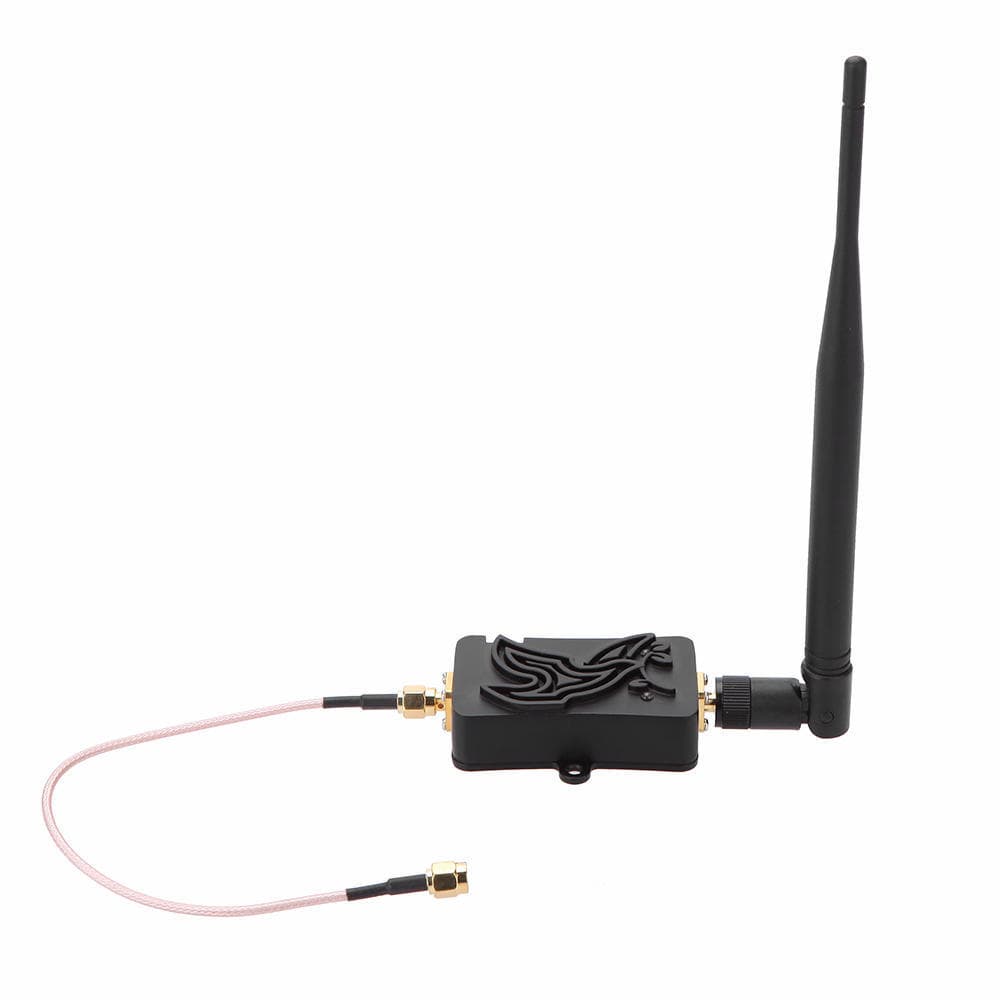

4W 4000mW 802.11bgn Wifi Wireless Amplifier Router 2.4Ghz WLAN ZigBee BT Signal Booster with

About this item

• This 2.4 GHz WLAN signal booster is designed for IEEE 802.11bgn wireless LAN applications. It adopts the direct sequence spread spectrum(DSSS) and orthogonal frequency division multiplexing(OFDM) technology of WLAN communication. The product is compatible with timedivision duplexing(TDD) method of WLAN and using rapid microwave detection technology to provide high linearity amplification. The signal booster can work with most WLANWiFi devices, BT, ZigBee and increase the signal strength, therefore a larger WLAN coverage and more stable transmission rate. Features: 20X the power, improving the link quality and coverage of certified WLAN devices. 2.5dB ultralow noise. Wide 616V operating input range. Working with certified IEEE 802.11bgn wireless LAN devices. Simply plug and play, no software is required. Specifications: Frequency range: 2.42.5GHz Operating voltage: 616V Receiving gain: 10dB+1 Transmission gain: 13dB+1 Input trigger power: 3dBm(min), 20dBm(max) Max output power(P1dB): 36dBm(4W) EVM: 3percent @28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz DC supply current: 435mA @ Pout 28dBm 9V Noise figure: less than 2.5dB TXRX switch time delay: less than 1us LED indicator: Transmitter: green, receiver: red Operating ambient temperature: 40celsius 70celsius Operating humility: Up to 95percent rel. humidity Item size: 8.2 * 5 * 2.1cm 3.22 * 1.96 * 0.82in (L * W * H) Item weight: 181g 6.39oz Package size: 21 * 12.5 * 5cm 8.26 * 4.92 * 1.96in (L * W * H) Package weight: 381g 13.43oz Applications: Wireless LAN 802.11bgn access point clients. Based on the 2.4GHz WLAN wireless base stations. Based on the 2.4GHz WLAN wireless bridges. Indoor distribution systems (multiplay) in the combiner. Based on ZigBee, BT protocol wireless devices. Installation Instructions: Step1: Disconnect the power supply to APRouter. Step2: Detach the antenna from your certified wireless APRouter. Step3: Connect RG316 cable (included) to the booster and APRouter. Step4: Connect the antenna to the other end of the booster. Step5: Connect the power supply to the booster first and subsequently the APRouter. Package List: 1 * 4W signal booster 1 * Power adapter 1 * 20cm RG316 cable 1 * 5dBi antenna 1 * User manual (English)
