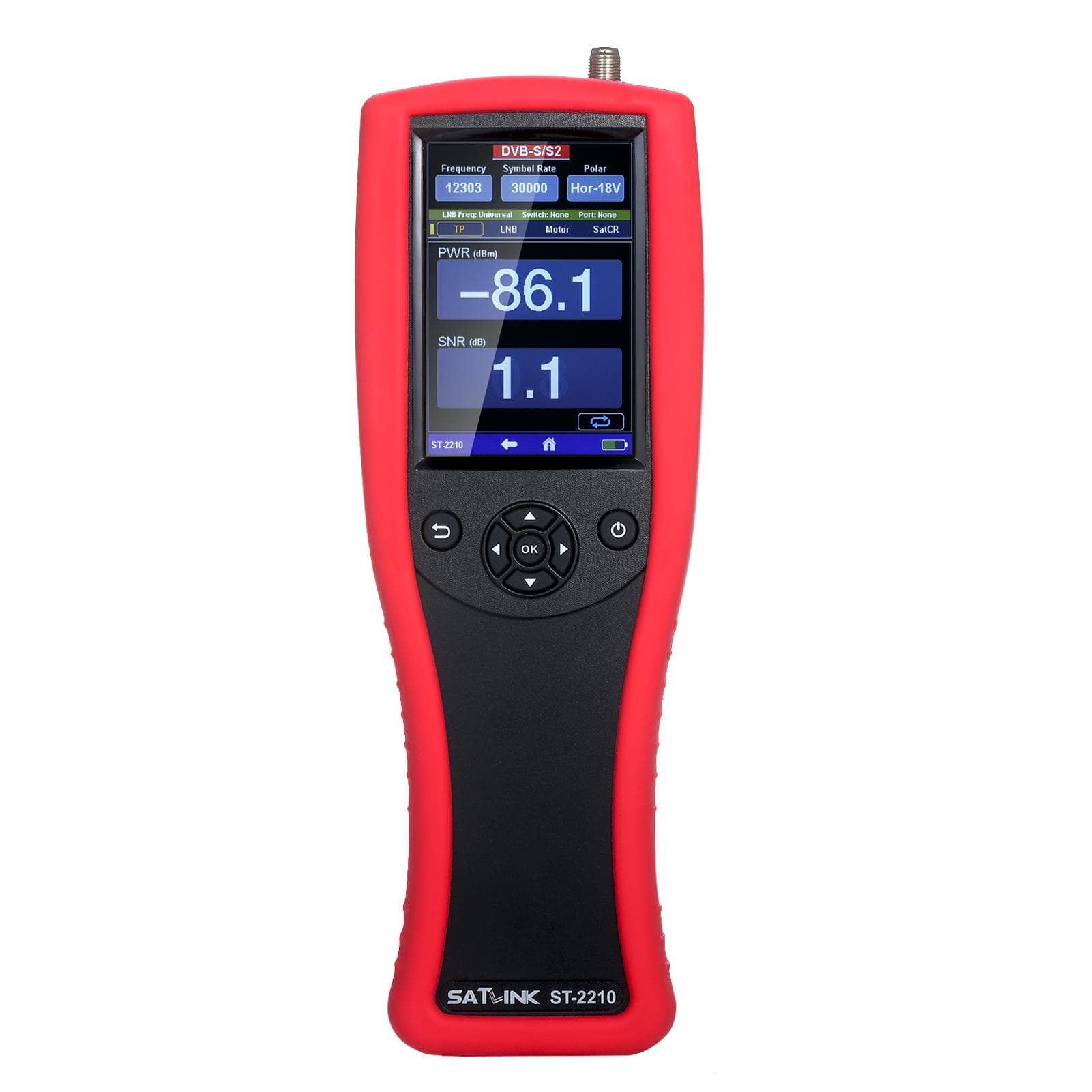

Satellite Finder 3.95inch TFT Touch-screen Satellite Signal Meter Digital Satellite Signal Finder EU Plug black

About this item

• Made of durable shell and selected electronic components, this sensitive satellite finder is very reliable and accurate in signal detecting. Features: [Portable Design] Proper size & comfortable grip & hand strap, convenient to carry. [3.95-inch Touch-screen] Large high-definition TFT capacitive touch-screen, easy to operate and clear to read values. [Backlight Function] LCD screen with backlight function for displaying values clearly even in the dark. [2000mAh Li‐Ion Battery] Large capacity lithium battery, long lasting; support power display, suitable for carrying out. [Menu Instruction] Easy to use, including Sat/TP Select, Signal Monitor, Channel Info, Spectrum Display, Sat/TP Editor, System Setup and About. [System Capabilities] Fully DVB-S2 compliant. • Digital meter for signal strength and quality • Constellation analyzer • Spectrum analyzer • Sound and Light Alarm for Locking Signal • Auto Calculate Azimuth, Elevation and Polarize • Support MER, BER and SNR • Support DisEqc 1.0/1.1, 0/22kHz Tone • Support Motor function • Upgrade software and database by PC Specifications: Material: ABS Color: Black Power Supply: 7.4V 2000mAh Li-ion battery Plug: EU / US (Optional) Transmission Standard: DVB-S2 Connector Type: F Type Input Impedance: 75Ω Input Frequency: 950~2150MHz Signal Input Level: -65~-25dBm Band Switch Control: 22KHz Demodulation Type: QPSK / 8PSK Symbol Rate: 2<Rs<45Mband(SCPC/MCPC) LCD Type: 3.95-inch TFT Screen Connector Port: Micro USB Item Size: Approx. 26*8.5*3cm / 10.24*3.35*1.18in Item Weight: Approx. 367g / 12.95oz Package Size: Approx. 29.3*17.5*5.8cm / 11.54*6.89*2.28in Package Weight: Approx. 865g / 30.51oz Note: Be sure to read this user's manual before starting your operation. Packing List: 1 * Digital Satellite Finder 1 * Silicone Protective Shell 1 * Adaptor 1 * Hand Strap 1 * CD (User's Manual) (English)
