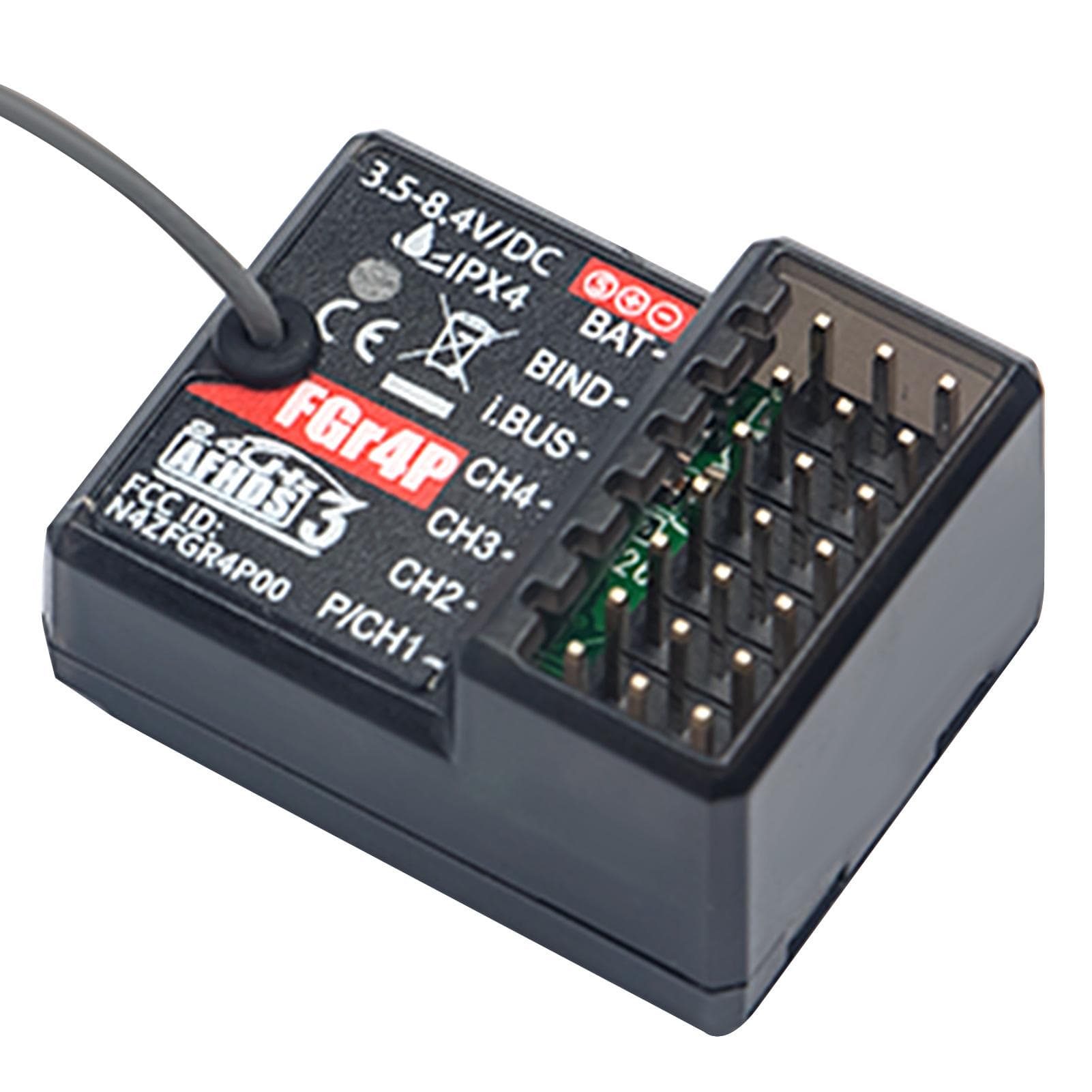

FlySky FGR4P 2.4GHz 4CH AFHDS 3 RC Receiver PWM/PPM/I.bus/S.bus Output for FSG4P Transmitter RC Car black

About this item

• Features: The FGr4P uses AFHDS 3(Third Generation Automatic Frequency Hopping Digital System). It uses a single antenna with two-way transmission capabilities and is designed to be compact and easy to install. It can output standard PWM, i-BUS, and PPM. Suitable for AFHDS3 system remote controller. Ultra-small size and ultra-lightweight, effectively save space and reduce item's weight-bearing. Any problem, please contact our store without hesitation. Honor to serve you. Specification: Product Model: FGr4P PWM Channel: 4 Wireless Frequency: 2.4GHz Wireless protocol: AFHDS 3 Range:> 200m (ground) Antenna type: single antenna (150mm) Power: 3.5-8.4V RSSI: Supported Data port: PWM / PPM / i.bus / s.bus Temperature range: -10 ℃ — + 60 ℃ Humidity range: 20% -95% Online Update: Yes Size: 29 * 22 * 16.2mm Weight: 8g CH 1-CH 4: Connects the servos, power supply, or other components i-BUS: for channel expansion or connect sensors BIND: For bind cable Battery: Connect the battery Binding: 1. Insert the binding cable into the receivers bind port 2. Plug the power cable into any other port, and the receivers LED will start to flash quickly indicating that it has entered bind mode 3. Put the transmitter into bind mode; (See the transmitters instruction manual for more information) 4. Binding is successful when the receivers LED will stop flashing Remove the power and bind cables from the receiver. 5. Reconnect the power cable to the receiver 6. Check to make sure that the transmitter and receiver are working as expected, if there are any issues or unexpected operation follow the steps above to bind again. Package information: Package size: 8 * 5 * 3cm Package Weight: 10g Polybag package Package list: 1*FGr4P receiver; 1*Binding cable
