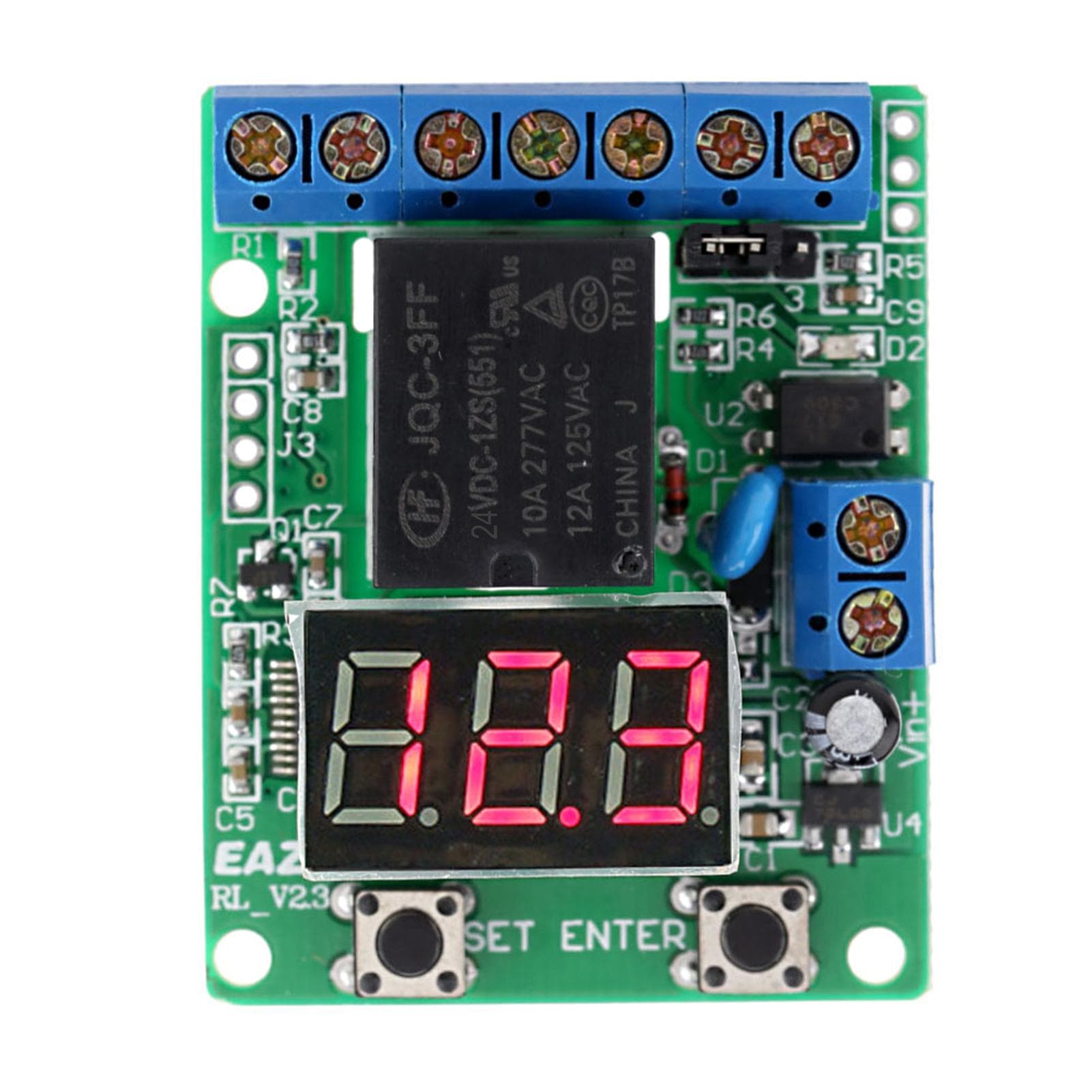

Ts1.2 Time Relay Controller Relay Module Relay-operated Controller Time Relay Module DC24V 0.1~999 DC24V green

About this item

• Features: 8 trigger modes can be set, to achieve trigger start, trigger restart, signal maintenance running, trigger reset (watchdog function), force stop and other functions. Timing Range: 0.1 seconds~999 minutes adjustable.(three range adjusting among 0.1~99.9sec., 1~999sec., and 1~999min.) Relay can be closed first and then opened, it can be also opened first and then closed. cycles 0~9999 times. ( 0 means infinite cycles). The pre-set parameters can be saved after power off. A set of conversion (normally opened and normally closed). Specifications: Type: DC12V/ DC24V (Optional) Material: PCB Operating Power: DC12V(10~18V), DC24V(18~28V) Contact Load: 10A/277V AC or 10A/30V DC ? Contact Resistance: less than 100m Ohm (1A 6VDC) Electricity Durability: more than 100,000 (10A-250VAC) Mechanical Durability: 10 millions Operating Temperature: -40~85 celsius Item Size: 50 * 40 * 20mm / 1.97 * 1.57 * 0.79in Item Weight: 27g / 0.95oz Package Weight: 30g / 1.06oz Package Size: 5 * 4 * 2cm / 1.97 * 1.57 * 0.79in Packing List: 1 * Module
