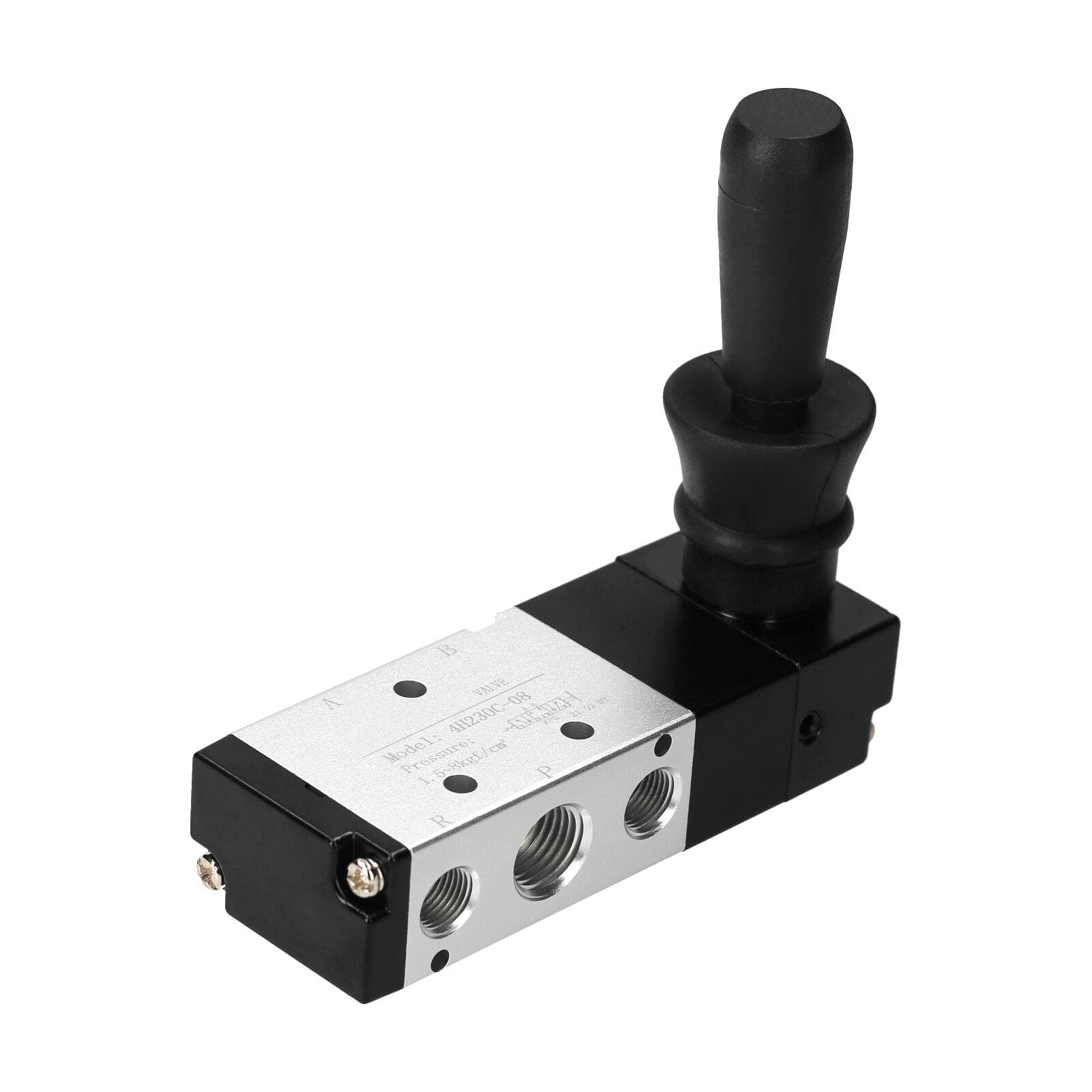

Pneumatic 3/8 PT 5 Way 3 Position Air Hand Lever Operated Valve Pneumatic Valve Manual Air Type B

About this item

• Strict selction of each part including the material and other spare parts, fine processing of thread and coil fulfill the high quality of pneumatic valve. Features: Type: 5 way 3 position. Port Size: air inlet (P)= PT 3/8, air outlet (A B)= PT 3/8, air exhaust (R S)= PT 1/4. Working Pressure Range: 1.5~8kgf/ cm2. Working Temperature: -20~70 celsius . Sensitive handle lightsome to change direction, stable to push and pull. Valve body made of high precision aluminum alloy with high hardness and long service life. Each thread is finely processed, no burrs, smooth and easy to install. Specifications: Material: Aluminium Alloy Type: Optional Type A: 5 Way 2 Position; Air Inlet=Air Outlet=PT 1/4, Air Exhaust= PT 1/8 Type B: 5 Way 3 Position; Air Inlet=Air Outlet=PT 1/4, Air Exhaust= PT 1/8 Type C: 5 Way 3 Position; Air Inlet=Air Outlet=PT 3/8, Air Exhaust= PT 1/4 Swing Angle: Type A: +/-15 degrees Type B: +/-8.5 degrees Type C: +/-10 degrees Working Pressure Range: 1.5~8kgf/ cm2 Working Temperature Range: -20~70 celsius Working Medium: Air Item Size: Type A: 7.6 * 3.3 * 9.1cm / 3.0 * 1.3 * 3.6in Type B: 9.3 * 3.3 * 9.1cm / 3.7 * 1.3 * 3.6in Type C: 10.9 * 3.8 * 9.4cm / 4.3 * 1.5 * 3.7in Item Weight: Type A: 147g / 5.18oz Type B: 182g / 6.41oz Type C: 273g / 9.64oz Package Size: Type A: 7.9 * 7.0 * 3.6cm / 3.1 * 2.8 * 1.4in Type B: 10.0 * 8.0 * 4.0cm / 3.9 * 3.1 * 1.6in Type C: 15.5 * 8.5 * 5.0cm / 6.1 * 3.3 * 2.0in Package Weight: Type A: 159g / 5.60oz Type B: 200g / 7.06oz Type C: 307g / 10.81oz Package List: 1 * Pneumatic Valve
