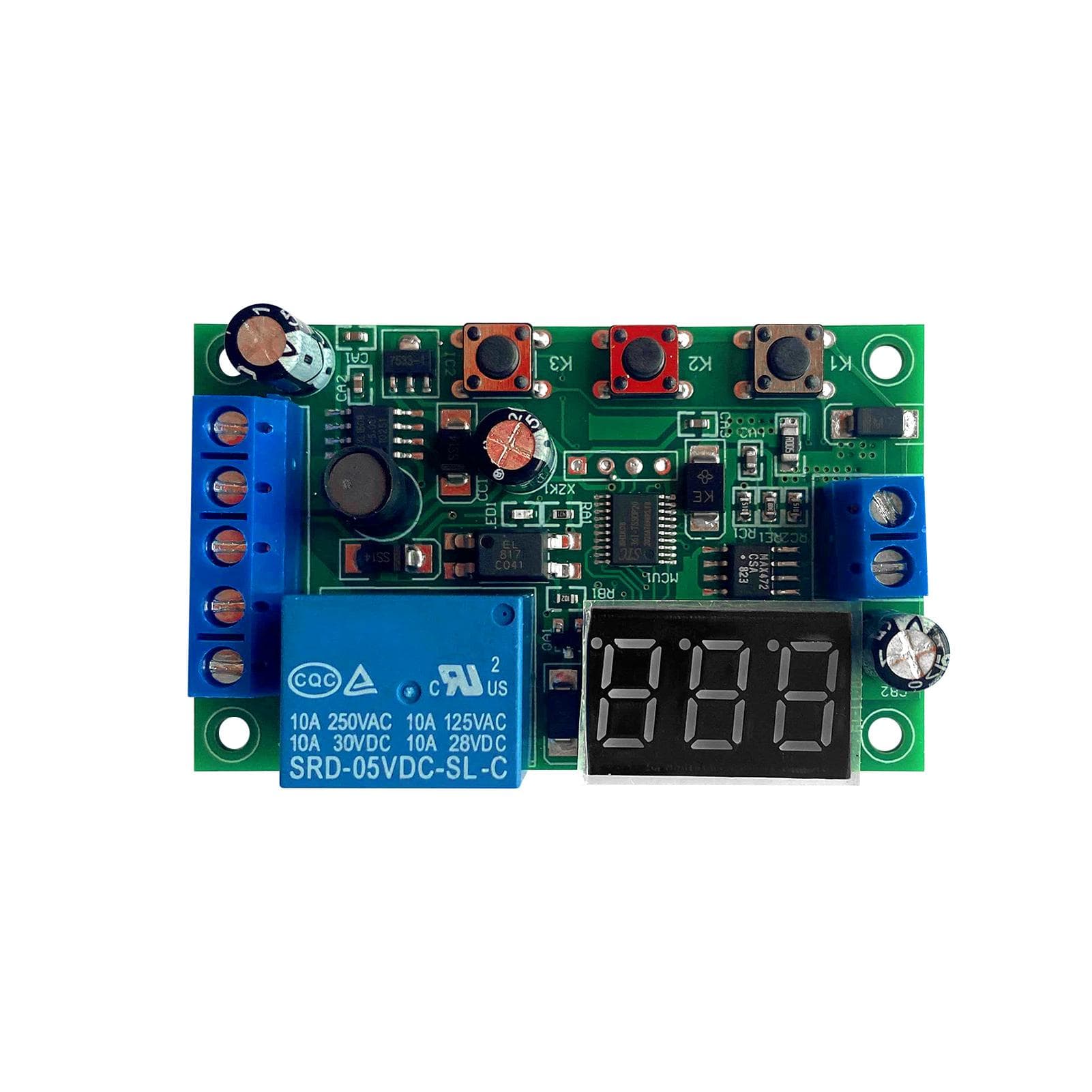

12V 0-10A DC Current Detection Module Current Sensing Detecting Delay Relay Control green

About this item

• This module can detect DC current in the range of 0-10A, the accuracy is 0.01A. Features: Detecting range: DC 0~10A; accuracy: 0.01A(10mA). Detect the current to control the relay then control the circuit on/off. Set delay time to prevent output shock so as to protect the circuit. With error calibration function. Can turn off the LED display to reduce power consumption. Functions Description: P-1: Over-current Detection: when the detecting current less than I1(low limit setting), the relay closes; more than I2(high limit setting), the relay opens. P-2: Under-current Detection: when the detecting current more than I2, the relay closes; less than I1, the relay opens. P-3: Close in the Range: when the detecting current is between I1 and I2, the relay closes; relay opens in other situation. P-4: Open in the Range: when the detecting current is between I1 and I2, the relay opens; relay closes in other situation. P-5: Error Calibration and Delay Time Setting: the relay would not operate. Buttons Description: K1: Modes Selection; K2: + K3: - Long press K1 for 2s into modes selection; short press K1 to select function and K2 to enter the mode. Note: After power on, the LED digits would pulse if the detecting current terminal is none. Specifications: Voltage: DC 12V Detecting Range: DC 0~10A Accuracy: 0.01A(10mA) Standby Current: Approx. 20mA Display: LED Digital Display Item Size: 65 * 40 * 18mm Package Weight: 29g / 1.04oz Packing List: 1 * DC Current Detection Module
