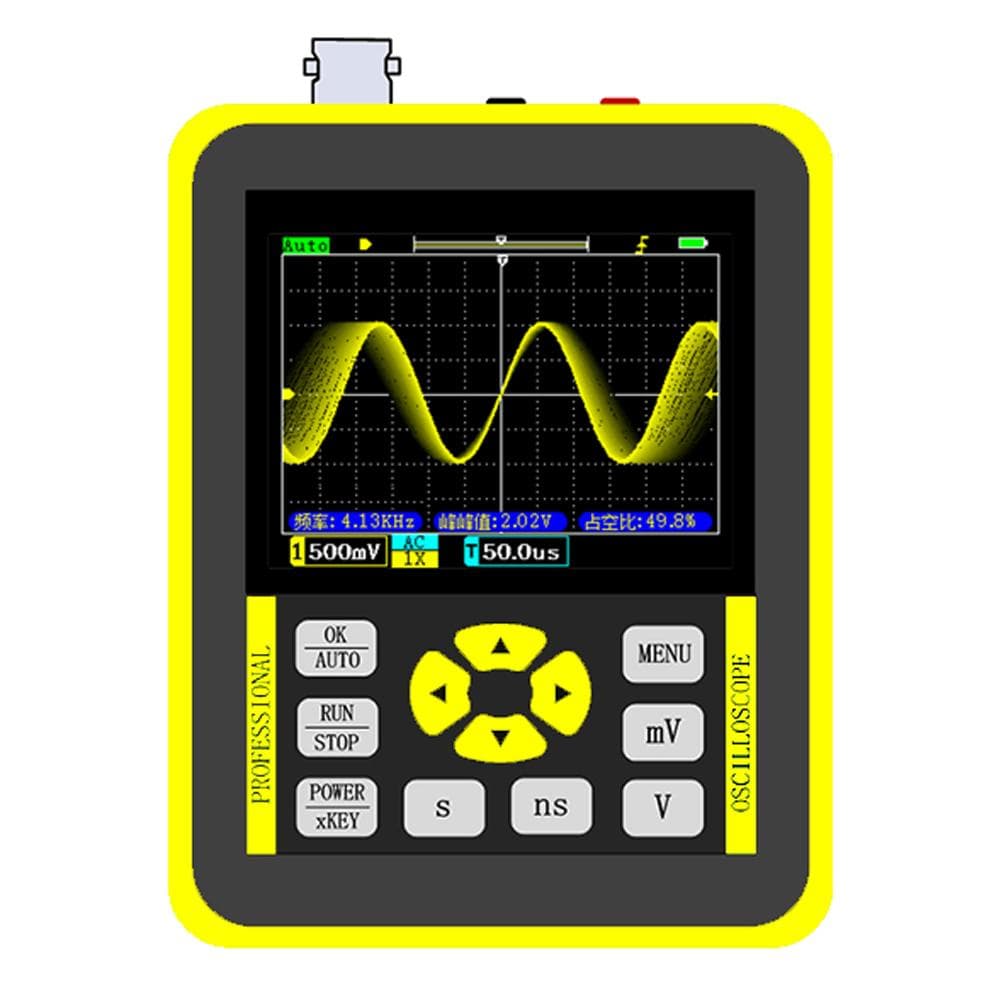

Handheld Mini Digital Oscilloscope with 2.4 Inches Color Screen 120M Bandwidth 500M Sampling Rate yellow

About this item

• This is a kind of quality oscilloscope, with 120M bandwidth and 500M sampling rate, more stable and with higher precisions. 14 measurement options available, Frequency, Peaks-to-Peaks, Duty cycle, Amplitude, RMS, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle. Support switch the output waveform: sine wave, square wave, triangle wave, etc. Widely application on mcu debugging, car repair, home appliance repair, DIY electronic competition, power-supply debugging, inverter, etc. You can have a try. Features: Resolution: Equipped with 320*240 resolution color display, with bright colors and high contrast, you can see the data clearly. Bandwidth and sampling rate: With 120M bandwidth and 500M sampling rate, more stable and with higher precisions. High bandwidth: Up to 120M bandwidth can easily cope with measurement tests in various fields. There are 14 measurement options available as follows: Frequency, Peaks-to-Peaks, Duty cycle, Amplitude, RMS, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle. Support switch the output waveform: sine wave, square wave, triangle wave, etc. FFT: FFT is used to convert time domain waveforms into frequency domain and is widely used in harmonic analysis and other fields. Support three display modes: logarithmic, linear, and music spectrum. Reference waveform: you can measure the waveform first, lock the current waveform on the screen, and the normally refreshed waveform will not be affected. Reference waveforms are useful for single-channel oscilloscopes. With reference waveforms, you can easily compare the waveforms of two channels. Complete trigger: Trig mode: Auto/Normal; Trigger types: Rise/Fall, Trigger level: Manual/Auto Vertical sensitivity and time base: The scope's vertical sensitivity is ranges from 10mV/div to 10V/div (1X ranges). The oscilloscope time base is ranges from 5ns to 10s. Waveform save: One-click to save the screen waveform, and also support delete or browse historical screenshots.. Connect to PC: The screenshot pictures can be exported to a computers via a USB connection. Video output: The 3.5mm headphone jack at the bottom can output AV video simulating signal, which can be connected to a TV or projector. Power-supply: built-in rechargeable lithium battery, 3.7V, 3000mAh large caparity, full-charged can provides long working time. Compact size: lightweight and portable, also can be used as a portable tool for on-site debugging. Widely applications: suitable for mcu debugging, car repair, home appliance repair, DIY electronic competition, power-supply debugging, inverter, etc. Specicifations: Name: Oscilloscope Model: DSO1511G Color: yellow, green (optional) Battery: 1 * 2.5V, 3000mAh battery (included) Channels: 1  Screen size: 2.4 inch  Measurement: 14 types  Resolution: 320*240  Bandwidth: 120M  Sampling rate: 500M Rise time: <3ns  Storage depth: 128Kbit  Impedance: 1MΩ  Time base: 5ns–10s Ver sensitivity: 10mV/div-10V/div Max voltae: ±40V(x1); ±400V(x10) Trigger mode: Auto/Normal Trigger type: rise/fall  Display mode: YT/Roll Persistence: None/1s / ∞ Coupling: Direct Current/Alternating Current AUTO: Support  Precision of V: ±2%  Reference: Support  Screenshot: Support  Single: Support  FFT: Support  Frequency: ±0.01% Generator: 0-2Mhz/2.5V  50%: Support  Language: CN/EN Recharging: USB TypeC-5V 1A/2A/5A Item size: 73 * 93 * 32mm / 2.87 * 3.66 * 1.26in Item weight: 166g / ounce Package size: 190 * 100 * 130mm / 7.48 * 3.94 * 5.12in Package weight: 500g / 1.10lb Packing List: 1 * Oscilloscope
