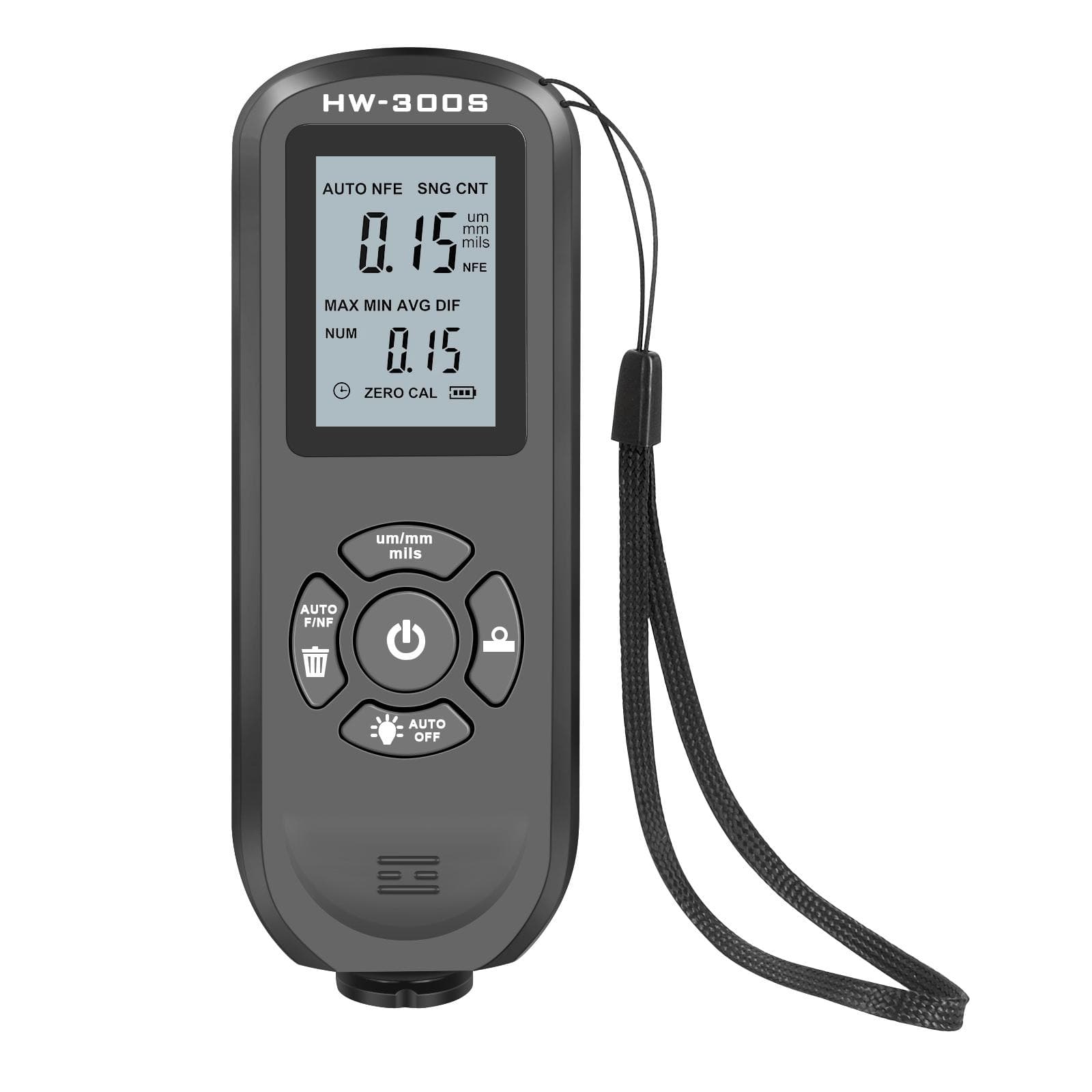

Car Paint Tester Coating Thickness Gauge with Digital LCD Backlight Display Coating Depth Detector Portrait black

About this item

• Features: This product has built-in magnetic induction and vortex double principle probe, can automatically identify the measured metal substrate, only need to be placed on the measured surface, can automatically calculate the thickness of the coating. With digital LCD backlight display, this car paint thickness meter can read data clearly in night or dark environment. The measurement unit can be switched between mm and mil to facilitate different measurement requirements. When measuring the thickness of the paint, the tester must be perpendicular to the test surface at 90 degrees . This portable coating thickness gauge can measure the thickness of non-metallic coating(such as paint, film, etc.) on metal substrate quickly, nondestructively and accurately. It is mainly used to measure the thickness of the vehicle s surface paint and other coating. Measurement step: Step 1. Prepare the parts to be tested. Step 2. Stay away from the metal object at least 2 cm, press the switch key to turn on. Note: it is suggested that the instrument should be zeroed with reference to zero calibration before testing. Step 3. The probe is placed vertically and quickly on the surface to be measured until the drop is heard, and the measured value is displayed on the screen, and then the probe is lifted at least 2 cm away from the part to be measured, and the next measurement can be carried out. Note: if the automatic shutdown function is turned on and there is no operation within 3 minutes, the instrument will automatically shut down. Specifications: Material: ABS Color: Orange, black (optional) Screen: Horizontal, vertical (optional) Measuring range: 0~2000um Precision: +/-(3percent +1um) Resolution: 0um~99.9um(0.1um) 100um~999um(1um) more than 1000um(0.01mm) Zero calibration:Support Statistics: Average, minimum, maximum, number Unit:um,mm,mils Minimum convex Radian: 5mm Minimum concave Radian: 25mm Minimum measured area: Diameter 20mm Minimum substrate thickness: 0.2mm Diameter 20mm Maximum measuring speed: 2 readings per second Power supply: 2 1.5V 7 battery (Not include) Operating environment Temperature:0 ~ 50 degrees C 20 ~ 90percent rh (non-condensed) Preservation environment Temperature:-10 ^ 60 degrees C 20 ^ 90percent rh (non-condensation) Size: 113mmX53mmX24mm weight: 80g Packing List: 1 * Thickness gauge 1 * Calibration piece 1 * Instructions
