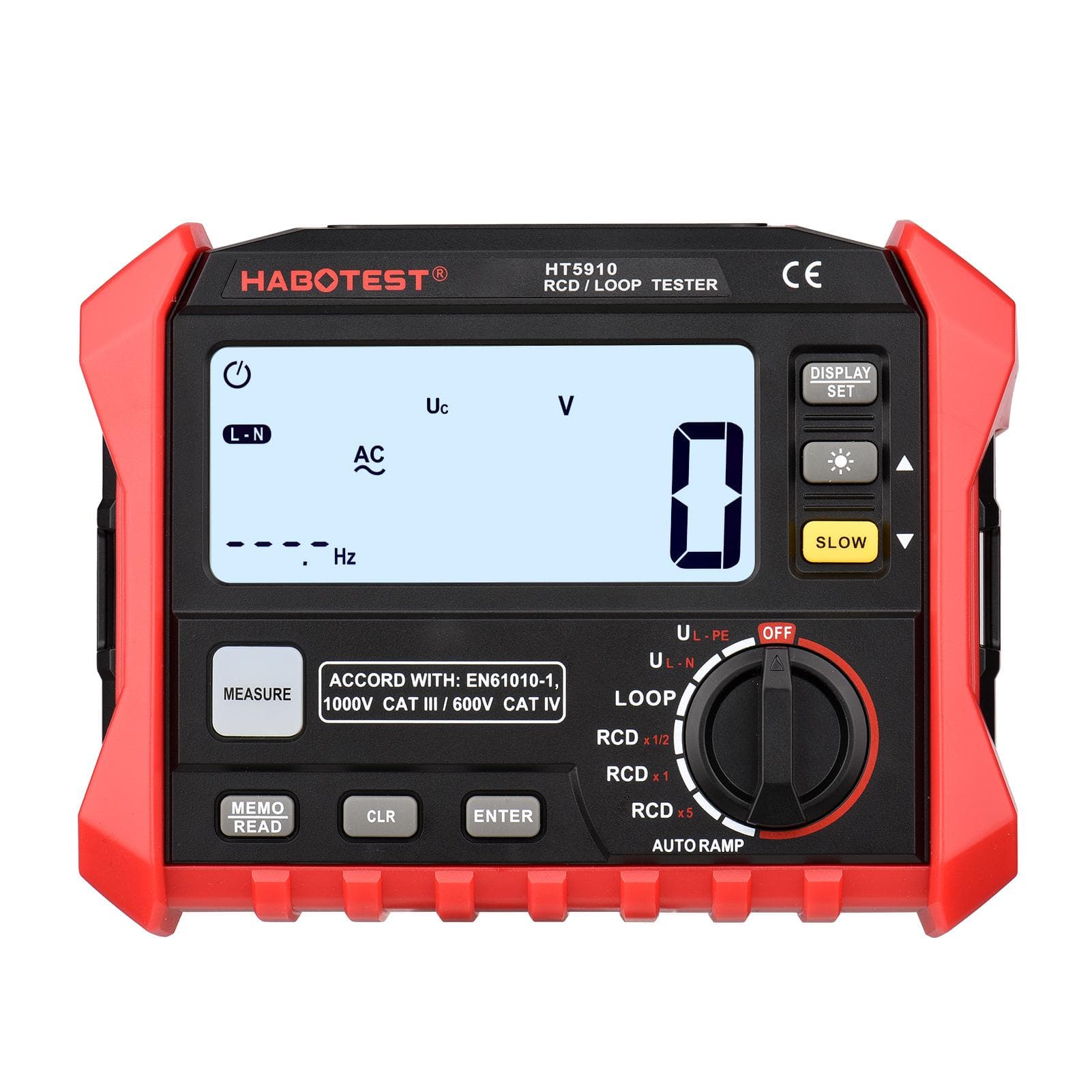

HABOTEST HT5910 4.7-inch LCD Digital Resistance Meter Leakage Switch Tester RCD/Loop Tester 1000

About this item

• Features: Multifunctional for measuring the trip current, trip time, loop resistance of switch leakage, and the voltage, frequency of on-line voltage, RCD(earth leakage switch), AUTORAMP(triggered current). Functional Features of the measurement of jump-off current, jump-off time, contact voltage, loop resistance. Up to 1000 sets of test results can be stored, convenient for further inquiry. Data stored in the host can be uploaded to a PC via the USB 2.0 interface. The compact portable resistance tester is easy to use and has stable performance. 4.7-inch LCD screen with backlight for conveniently checking the test result in the low lit condition. Powered by 6pcs 1.5V AA batteries(not included), with low battery indication. Perfect for the electricians to do testing, inspection, and repairing. Specifications: Material: ABS AC Phase: Voltage Measurement: 0~440V Frequency Measurement: DC, 45~65Hz Test Current Magnification: 0.5, 1, and 5 Fast/Slow Current Test Gears: 10, 30, 100, 300, 500mA Safety Level: CAT III 1000V, CAT IV 600 Max. Common Mode Voltage: 600V AC RMS Display Type: LCD display Range Selection: Fully automatic range Frequency Detection: Automatic Over-range Display: more than Power Consumption: 100mW Operating Temperature & Altitude: 0~40 celsius , 2000m Storage Temperature & Altitude: -20~70 celsius , 12000m Power Supply: 8 * 1.5V AA battery (NOT included) Item Size: 190 * 140 * 68mm / 7.48 * 5.51 * 2.68in Item Weight: 948g / 33.47oz Package Weight: 1544g / 54.47oz Package Size: 33.5 * 27 * 9cm / 13.19 * 10.63 * 3.54in Packing List: 1 * Tester 1 * Test Lead 3 * Clip 1 * USB Cable 1 * CD 1 * Storage Case
