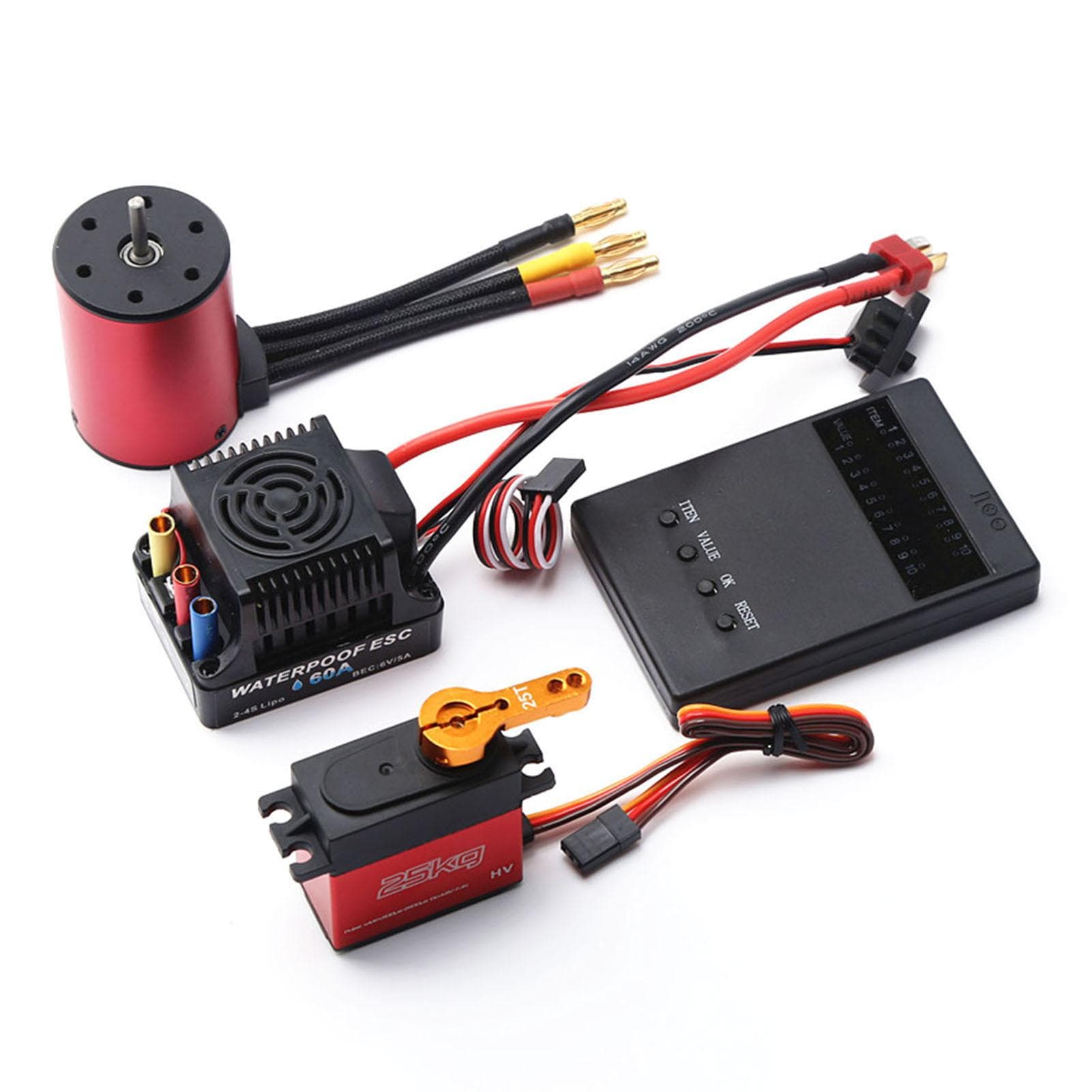

4300KV Brushless Motor 3650 Waterproof Motor with 60A Brushless ESC 2-4S Lipo 25KG Digital Servo 3100KV multicolour

About this item

• Features: The set includes a 4300KV brushless motor, a 60A ESC, 25KG digital servo and programming card, which is perfectly fit for the 1/8 1/10 RC car and is designed to provide both quality and performance at an affordable price. The ESC Features enhanced throttle response, excellent acceleration, strong breaks and throttle linearity. Supports program card to make adjustments. High purity copper windings maximize efficiency, a precision-balanced rotor, smoothness for best reliability and maximum RPM. Efficient and high-speed ball bearings, precision-engineered for maximum energy conversion. Multiple protection Features: Low voltage cut-off protection for lithium battery, Over-heat protection, Throttle signal loss protection, motor blocked protection. Specifications: Name: 3650 RC Brushless Motor and Brushless 60A ESC 3650 RC Brushless Motor: Watt: 850 Max RPM: 60000 Max Voltage: less than 8.4V Max Amps: 100A Rotor Poles: 4 Diameter: 36mm Length: 50mm Shaft Length: 15mm Shaft Diameter: 3.175mm Connector: 4.0mm Gold Brushless 60A ESC: Item Model: 60A Type: Brushless Voltage Level: Normal Continuous Current: 100A Burst Current(10s): 800A Suggested Battery Cell: 2-4S Lipo BEC Output: 6.0V/5A Item Size: 52 * 39 * 38mm 25KG Large Torque Digital Servo: 25KG Large Torque and High Speed Servo Operating Voltage: 4.8 ~ 6.8 DC Volts Dead Brand: 3mus Weight: 60g Motor Type: DC Motor Gear Type: Copper & Aluminum Working Frequence: 50-333Hz Operating Travel:180deg(PWM 500-2500mus) OR 270deg(PWM 500-2500mus) Size: 40 * 20 * 40.5mm Programming Card: Low voltage cut off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off Start mode:Medium, soft, strong Max brake force: 25%, 50%, 75%, 100% Max reverse force: 25%, 50%, 75%, 100% Neutral range: 6%, 9%, 12%, work state Package Information: Package Size: 12*8*4.5cm Package Weight: 284g Gift Box Package Packing List: 1*4300KV Brushless Motor 1* 60A ESC 1* 25KG Digital Servo 1* Programming Card
