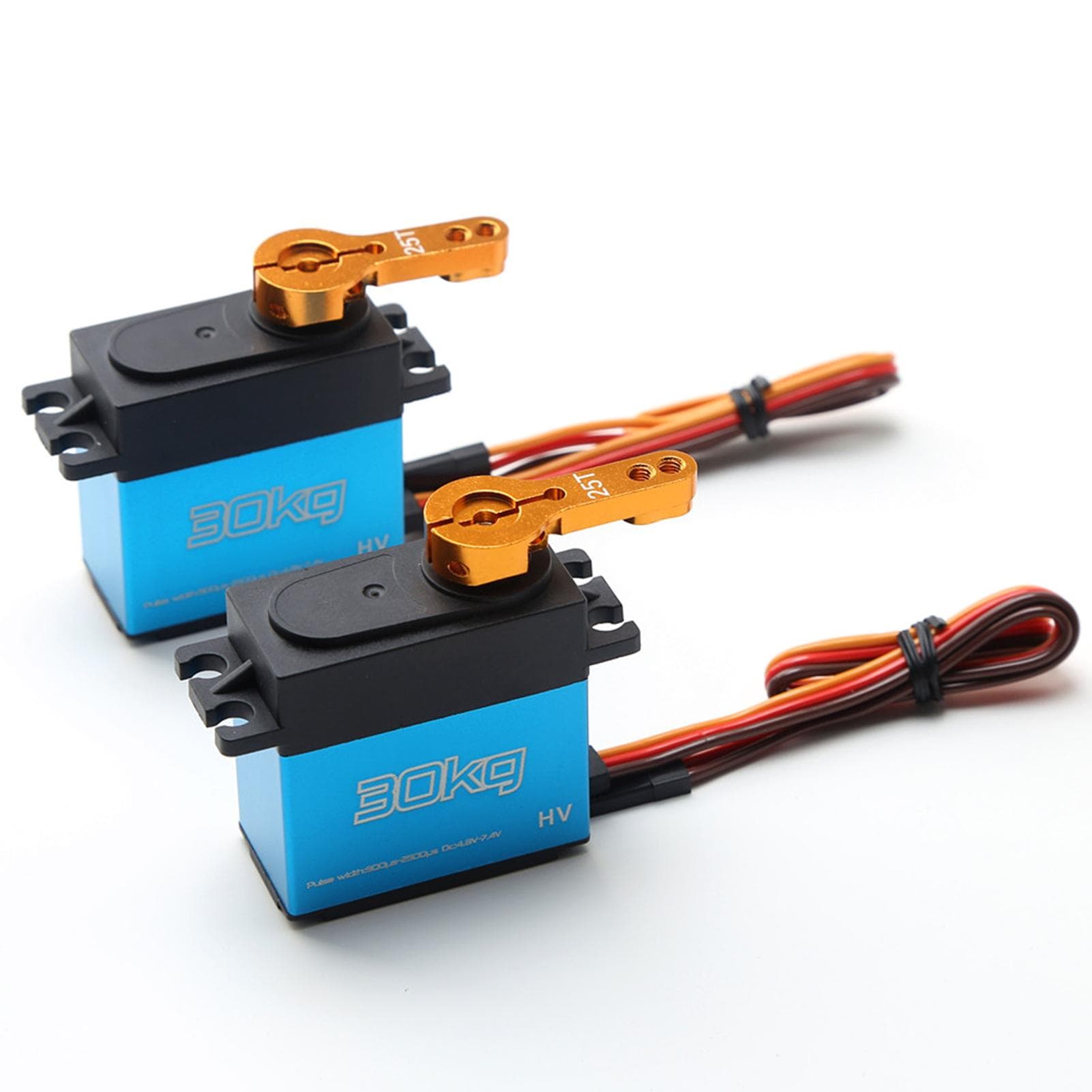

30KG Digital Servo 4pcs Metal Gear Servo Waterproof for 1/8 1/10 1/12 Scale RC Cars Robot Boat 2 pcs multicolour

About this item

• Features: Good performance digital?servo, suitable for remote control, RC car, robots. Operat Voltage: 4.8V - 7.4V, no load speed: 0.24sec/60 degrees - 0.17sec/60 degrees , peak stall torque: 29.5kg.cm - 32kg.cm. Size: 40.0*20.5*40.5mm, horn gear spline: 25T, Diameter: 5.9mm, gear type: 5 metal. A great choice for university professors and students who are interested in developing software for robot parts. Tailored for RC hobbyists to provide different experiences and delight. Warranty: If there are any problems, please contact our store in time. We will give you a satisfactory solution. Specifications: Item: Digital Servo 30KG Servo 180 Degree: Apply Environmental Conditon: 1. Storage Temperature Range: -30 degrees C~80 degrees C 2. Operating Temperature Range: -25 degrees C~70 degrees C Standard Test Environment: 1.Temperature Range: 25 degrees C~70 degrees C 2. Humidity Range: 65%+/-10% Mechanical Specification: Size: 40.0*20.5*40.5mm Weight: 69g+/-2g Gear type: 5 Metal Limit angle: 360 degrees Bearing: 2BB Horn Gear Spline: 25T, Diameter: 5.9mm Horn Type: Plastic, POM Connector Wire: 320mm+/-5mm Motor: Carbon Brush Motor Electrical Specification: Operat Voltage: 4.8V - 7.4V No Load Speed: 0.24sec/60 degrees - 0.17sec/60 degrees Runnig Current: 140mA - 200mA Peak Stall Torque: 29.5kg.cm - 32kg.cm Stall Current: 2600mA+/-10% - 3400mA+/-10% Working Voltage Range: 4.8 - 7.4V Control Specification: Command Signal: Pulse Width Modification Amplifier Type: Digital Controller Pulse Width Range: 500~2500usec Neutral Position: 1500usec Running Degree: 180 degrees +/-3 degrees (When 500~2500usec) Dead Band Width: 5 usec Rotating Direction: Counterclockwise (When 1000~2000usec) Package information: Package Size: 9*9*7cm Package Weight: 324g Static Bag Package Packing List: 4*30kg Digital Servo 4* 25T Arm
