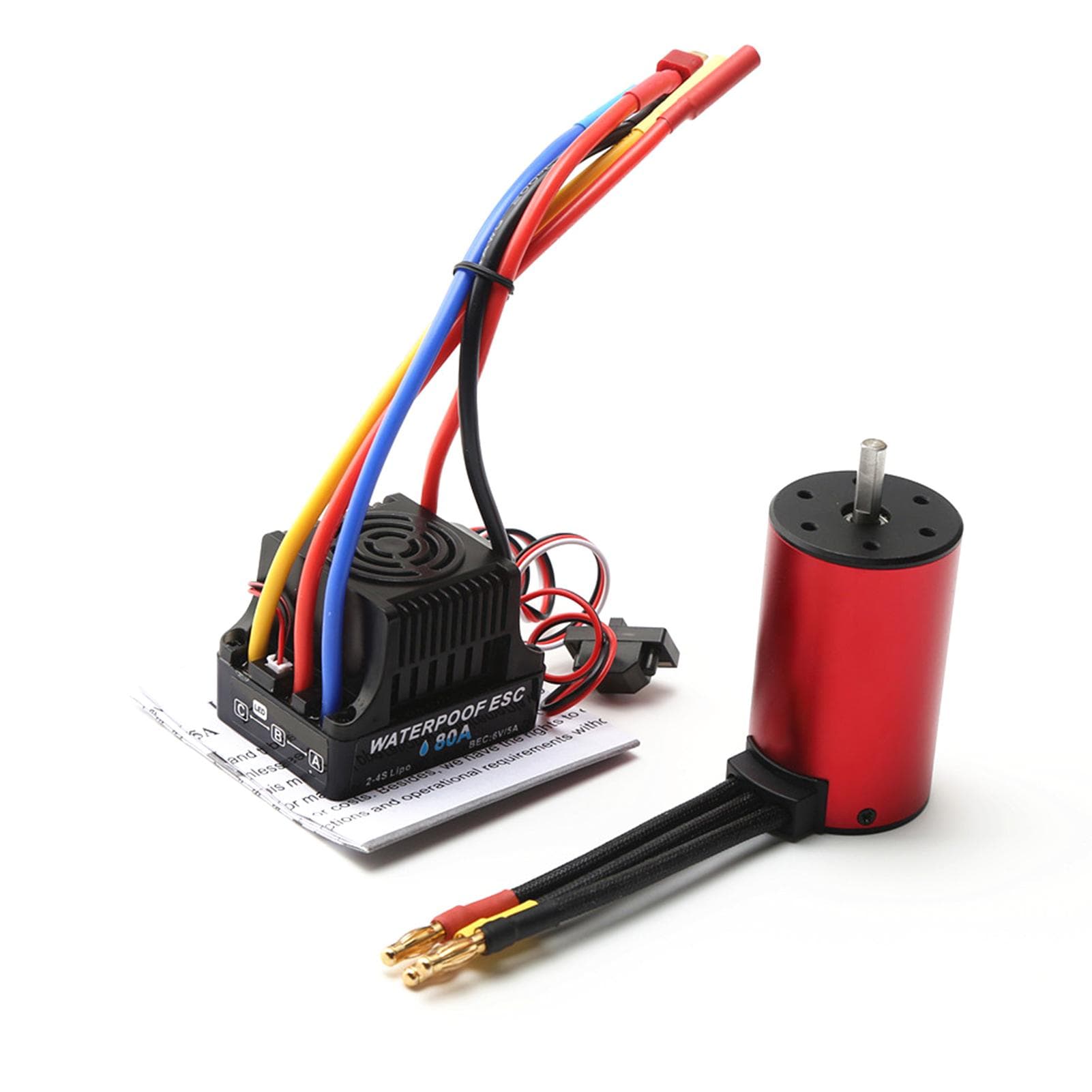

S3660 3100KV Brushless Motor Waterproof Motor 80A ESC Replacement for Traxxas WLtoys RC Car Tamiya 3800KV multicolour

About this item

• Features: 4 Pole 12 Slot Hi-torque Motor Design. High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings. Maximizes Efficiency, High RPM ABEC5 Oversized Bearings. Universal fit, for 1:8 1:10 2S RC car, 3S RC racing car. Stator-Super Thin (0.35mm) Laminations. Precision balanced rotor, smoothness for best reliability and maximum RPM. Specifications: Name: Brushless Motor KV(RPM/Volt): 3100KV Watt: 1200 Max RPM: 50000 Max Voltage: less than 12V Max Amps: 100A Rotor Poles: 4 Diameter: 36mm Length: 60mm Shaft Length: 17mm Connector: 4.0mm Gold Weight: 222g Shaft(mm): 3.175 Name: 80A ESC Cont.Current/Burst Current: 80A/480A Motor Type: Sensorless Brushless Motor For 2S Lipo or 6 cells NiMH : 1. On-road: 3670/3660-Size or smaller motor with the KV less than 3000KV 2. Off-road: 3670-size or smaller motor with the less than 3000KV For 3S-4S Lipo or 9 cells NiMH: 1. On-road: 3660-Size or smaller motor with the KV less than 3000KV 2. Off-road: 3660-size or smaller motor with the less than 3000KV Suitable Car: 1/10 1/8 RC Car Resistance: 0.0005ohm Battery: 2-4S Lipo/4-12Cells NiMH BEC Output: 6V/5A (Switch mode) Size: 53*37*38mm Package Information: Package Size: 8*4*5cm Package Weight: 329g General Box Package Packing Listing: 1* 3100KV Brushless Motor 1* 80A ESC
