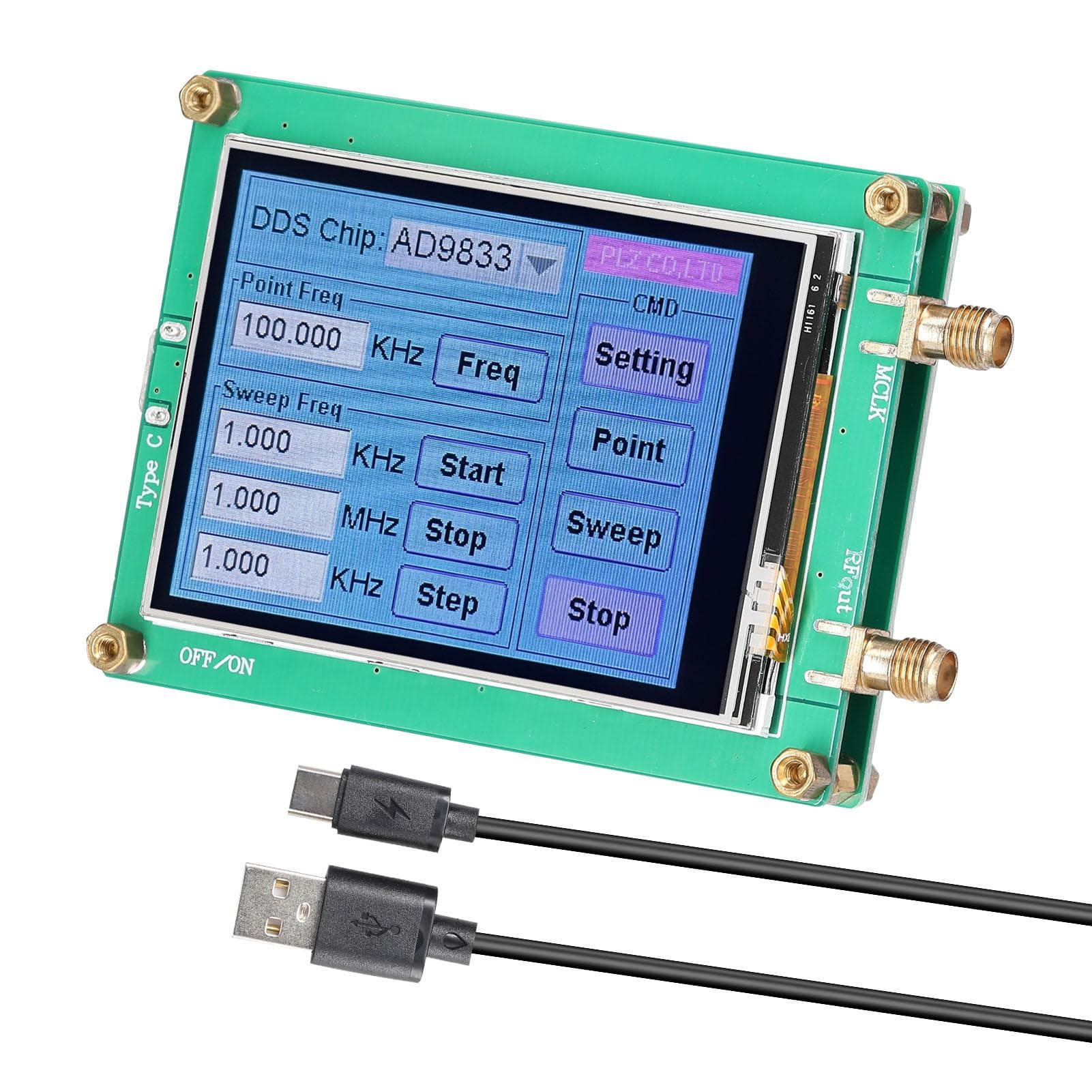

Touching Screen DDS Module Signal-Generator 10Bit DAC Sinewave Squarewave Triangularwave Signal multicolour

About this item

• This product is a direct digital frequency synthesizer (DDS) with a built-in 10-bit DAC, low power consumption, and with a 28-bit frequency register. It can realize high-performance sinewave and trianglewave output, and can achieve 0.004 Hz resolution when the clock rate is 1MHz. Features: The module is powered by 5V Type-C, the user can select the desired chip, set the desired point frequency, sweeping starts frequency, sweeping stop frequency, and the sweeping-step frequency. You can set the clock reference frequency and change the output waveform signal. When connecting to an external clock, you need to input the corresponding external clock frequency. In Waveform, you can output Sine (sinewave) signal, Square (squarewave) signal, Triangular (triangularwave) Signal. In the main interface, you can select Point (point frequency) output mode, Sweeping (sweeping frequency) output mode, and Stop (stop) output mode. The module supports PC control, and the PC control operation is the same as the full-screen touching screen operation. The plug-and-play operation is simple and easy to carry, and it can also realize point frequency and sweeping frequency work, and full touching screen operation. Specifications: Name: Signal Generator Material: printed circuit board Power supplys: DC5V DAC resolution bit: 10 Output frequency ranges: less than 3MHz Output amplitude: about 0.6Vpp sinewave and triangular waves; about 3Vpp square waves Output impedance: 200ohm Output interface: SMA Output channel: 1 channel Item size: 103 * 63 * 17mm / 4.06 * 2.48 * 0.67in Item weight: 89g / 3.14ounce Package size: 125 * 103 * 40mm / 4.92 * 4.06 * 1.57in Package weight: 116g / 4.09ounce Packing List: 1 * Signal Generator 1 * Type-C Cable
