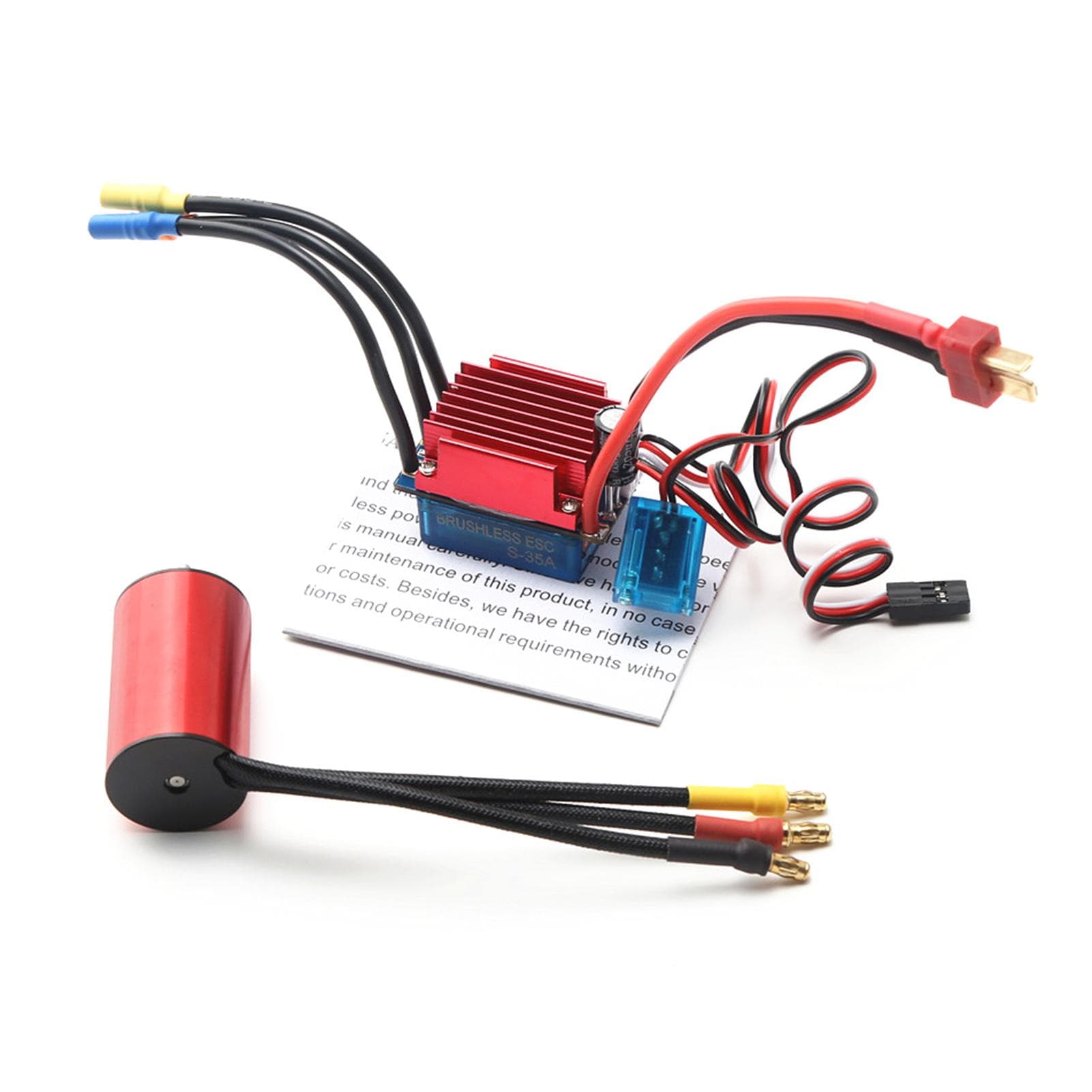

S2440 2440 Brushless Motor 4600KV 35A Brushless ESC Electric Speed Controller Replacement for 4600kv red

About this item

• Features : 4 Pole 12 Slot Hi-torque Motor Design. Stator-Super Thin (0.35mm ) Laminations. High Quality : CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings. Universal fit, for all 1 :16,1 :18 2S RC car. Precision balanced rotor, smoothness for best reliability and maximum RPM. Excellent start-up, acceleration and linearity Features. Plenty of programmable items, suitable for various of chassis, tires and racing tracks. Multiple protection Features : Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection. ? Specifications : Name : 2440 RC Motor Color : Red KV (RPM/Volt ) : 4600KV Watt : 400 Max RPM : 50000 Max Voltage : less than 8.4V Max Amps : 47A Rotor Poles : 4 Diameter : 24mm Length : 39.5mm Shaft : 2.3mm Shaft Length : 12mm Connector : 3.5mm Gold Weight : 70g ESC : Constant Current : 35A Burst Current : 120A (10S ) Power Supply : 2-3S LiPo Battery / 4-6S NiMh Battery BEC : Linear Switch 5V 1A Package Information : Package Size : 9.5 * 8 * 6.5cm Package Weight : 119g General Box Package Packing List : 1* S2440 Brushless Motor 1* S35A Brushless ESC
