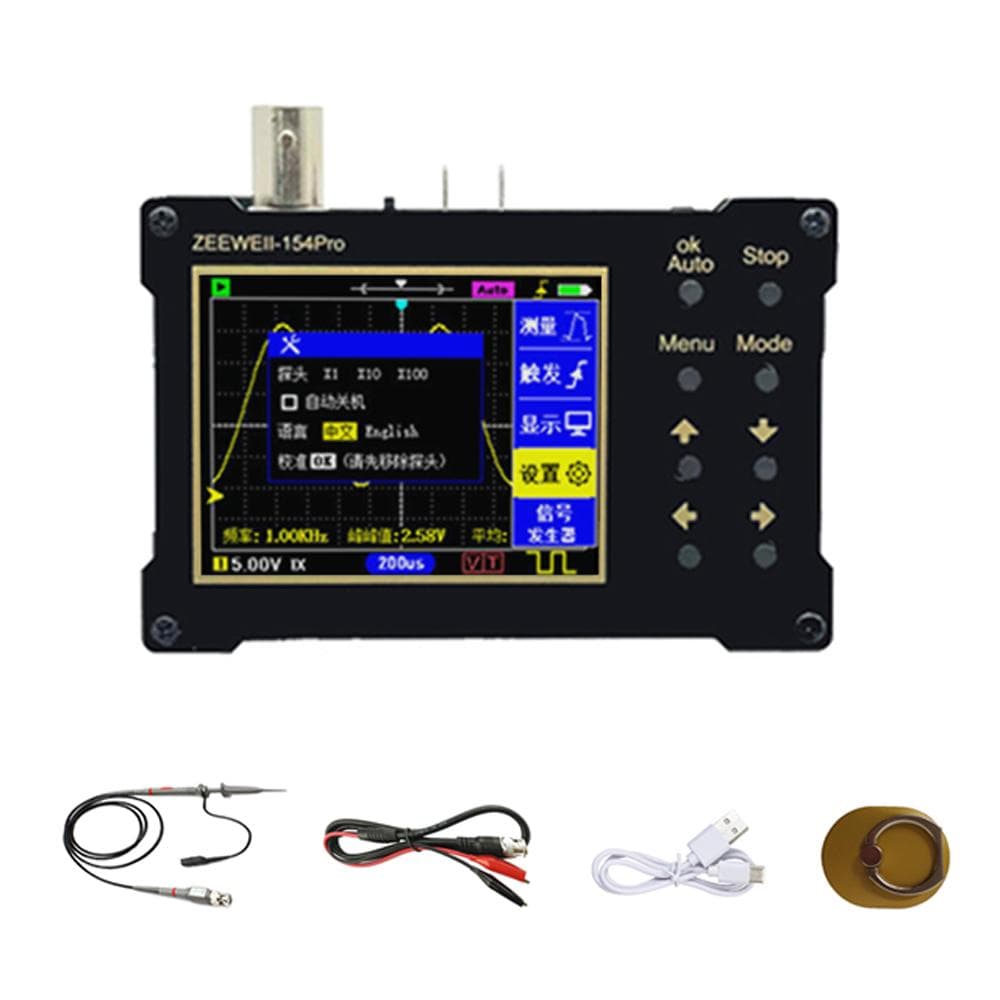

ZEEWEII DSO154Pro 320*240 Resolution 2.4-inch TFT Color Screen Digital Oscilloscope 40MSa/s 18M Bandwidth multicolour

About this item

• This quality oscilloscope has ARM+FPGA+ADC architecture, 40MSa/s sampling rate, more stable and with higher precisions. Widely application on mcu debugging, car repairing, home appliance repairing, DIY electronic competition, power-supply debugging, inverter, etc. You can have a try. Features: 2.4 Inch TFT LCD Display: Equipped with 320*240 resolution color TFT LCD display, with bright colors and high contrast, you can see the data clearly. High Practicality: ARM+FPGA+ADC architecture, with 40MSa/s sampling rate, more stable and with higher precisions. Optional Bandwidth: There are two bandwidths for you to choose, you can choose 1M bandwith version or 18M bandwith version depending on you needs, which can easily cope with measurement tests in various fields. Humanized Design: Compact appearance, with 8pcs buttons design, it can be used as a portable tool for on-site debugging.? Easy to Use: Auto adjust, stops, menu and single trigger can all be done with one click. The waveform scaling and movement can be done by simply pressing the Mode button to switch between the 4 directional buttons, which is very convenient. Squarewave Generator: Six waveforms including sinewaves, squarewaves and trianglewaves can be output. The upperside of the oscilloscope can output an adjustable waveform of 3V amplitude, the frequency-adjustment-range is 0-2MHz, the accuracy is up to 0.1Hz. The duty cycle-adjustment-range is 1percent -99percent . It can be used to calibrate new probes, drive mosFETs, replace crystals, etc. 3 Trigger Modes Design: Threr are 3 trigger modes design, Auto trigger mode, Normal trigger mode, Single trigger mode. Rich and Powerful Features: One button for automatic adjustment, support for single trigger, support 14 measurement parameters, support for X100 high voltage probes. Widely Applications:?Suitable for mcu debugging, car repairing, home appliance repairing, DIY electronic competition, power-supply debugging, inverter, etc. Specicifations: Name: Oscilloscope Model: DS0154Pro Material: ABS Bandwidth: 1MHz/18MHz (Optional) Battery: according to you selection 1M Bandwidth: no battery included 18M Bandwidth: 1 * built-in rechargeable lithium battery, 3.7V, 1000mAh (included) Hardware solution: ARM+FPGA+ADC Screen: 2.4 inch TFT LCD Channel: 1 Resolution: 320*240 Sampling rate: 40MSa/s Rise time: less than 20ns Storage depth: 16Kbit Impedance: 1MOhm Time base: 50ns-10s Vertical sensitivity: 20mV/div-10V/div Max voltage: +/-40V(x1);+/-400V(x10) Input impedance: 1MOhm Signal Generator: 0-500K frequency adjustable, fixed voltage 3.0V Trigger mode: Auto/Normal/Single Waveform measurement: 14 types Scroll mode: more than 200ms entering scroll mode Item size: 87 * 58 * 18mm / 3.42 * 2.28 * 0.71 in Package size: 1M Bandwidth Version: 150?* 100?* 40mm / 5.91?* 3.94?* 1.57in 18M Bandwidth Version: 200?* 110 ?* 40mm / 7.87?* 4.33?* 1.57in Package weight: 1M Bandwidth Version: 160g / 5.64ounce 18M Bandwidth Version: 250g / 8.82ounce Packing List (1M Bandwidth Version): 1 * Oscilloscope 1 * Cable 1 * Bracket 1 * Guideline OR Packing List (18M Bandwidth Version): 1 * Oscilloscope 1 * Probe 1 * Cable 1 * Bracket 1 * Guideline
