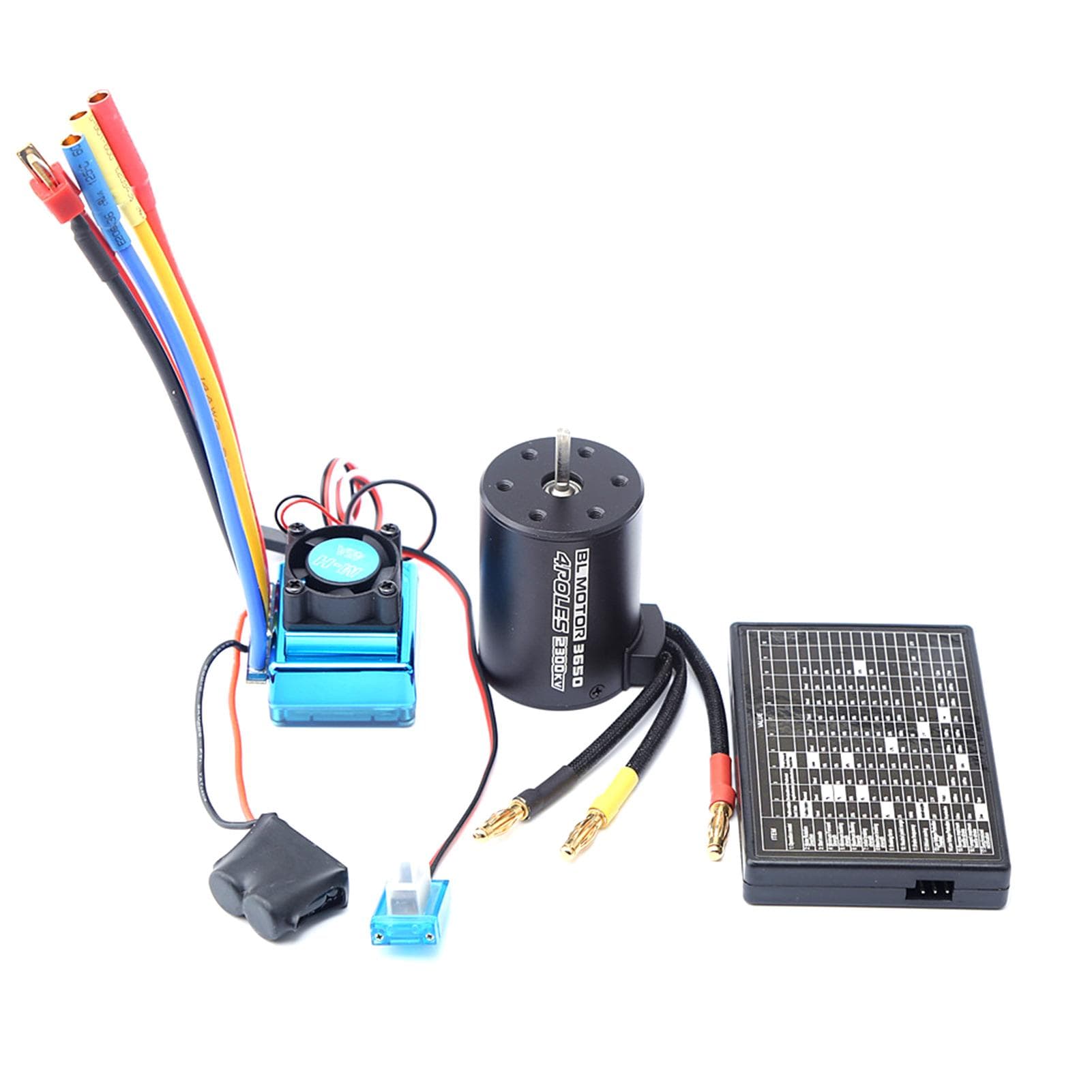

3650 Brushless Motor 2300KV Waterproof Motor ESC Programming Card for 1/8 1/10 Remote Control 80A ESC black

About this item

• Features: 4 Pole 12 Slot Hi-torque Motor Design. Waterproof brushless motor for 1/10 remote car. High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings. Maximizes Efficiency, High RPM ABEC5 Oversized Bearings. Precision balanced rotor, smoothness for best reliability and maximum RPM. Multiple protection Features: Low voltage cut-off protection, over-heat protection, and throttle signal loss protection. Specifications: Item: 2300KV Brushless Motor Watts: 900W Max Voltage: less than 22V Max Amps: 41A KV(RPM/Volt): 2300KV Max RPM: 50000 Diameter: 36mm Length: 50mm Shaft Length: 15mm Shaft Diameter: 3.175mm Plug Type: 4mm Golden Banana Plug Continuous Current: 120A Burst Current: 480A / 10sec Battery: 2-3s LiPo / 4-12s NiMh BEC Output: 5.3V / 5A(Switch Mode) Power Supply Plug: T Male Name: Programming Card Low Voltage Cut off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off Start Mode: Medium, Soft, Strong Max Brake Force: 25%, 50%, 75%, 100% Max Reverse Force: 25%, 50%, 75%, 100% Neutral Range: 6%, 9%, 12%, Work State Package Information: Package Size: 10*6*5cm Package Weight: 290g Plastic Package Packing List: 1* 2300KV Brushless Motor 1* 120A ESC 1* Programming Card
