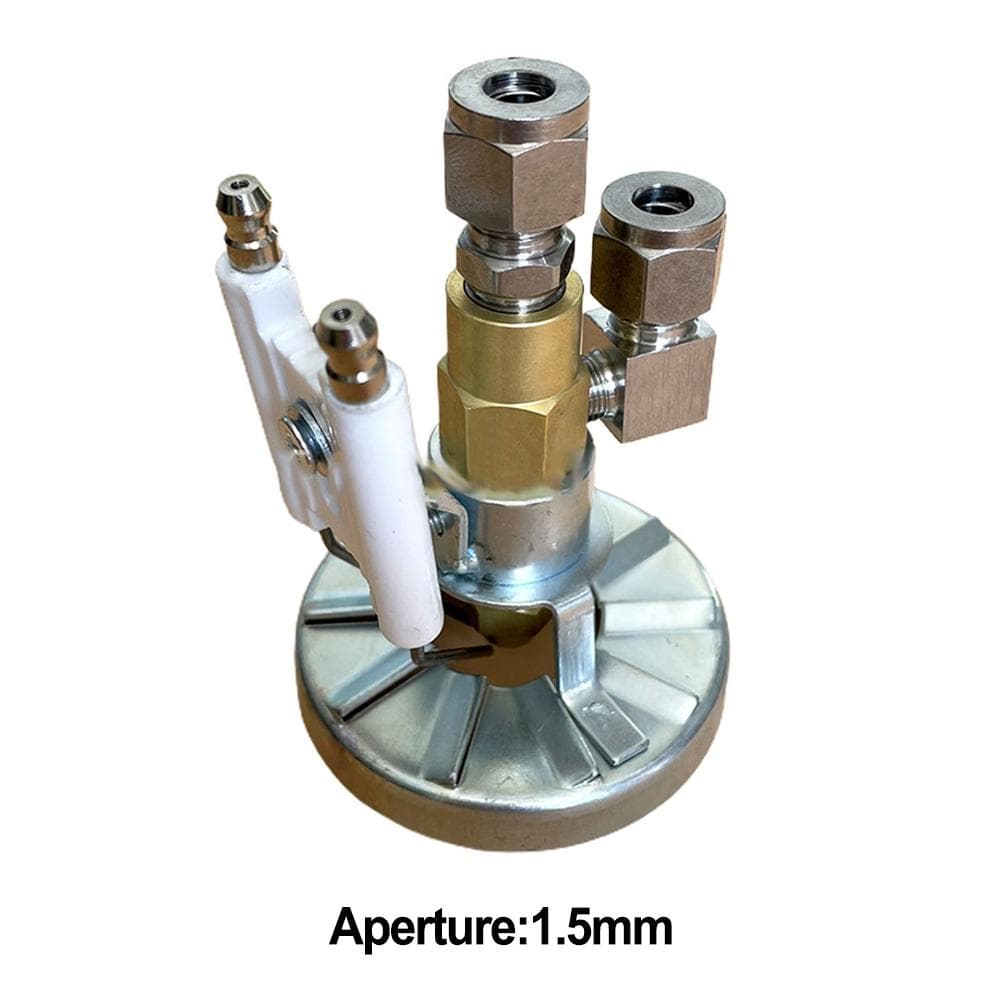

Nozzle Nozzle Rings Spray Nozzle Waste Oil 0.5-2.0MM 1.5mm

About this item

• Feature： *Brand new and high quality *Using compressed air in the tube vortex and mixed atomization droplet impact. *Can produce tiny micro-particle size fog particles under low pressure and low volume conditions. *Air flow and pressure can be controlled to adjust the spray flow, angle and size particles. *Good anti-clogging effect because of the high fluid passage through the nozzle. *It is very effective in atomizing heavy oil, waste oil burners, oil and other applications with high viscosity. *Widely used in diesel, heavy oil, waste oil, waste oil, animal and vegetable oils,and other alcohol-based fuel oil, gas, combustion spray systems, spray workshop humidification cooling system, mechanical cleaning dust. *Usually the working pressure is 3bar, and the waste fluid is 10L/H for the 1.00mm version. 19L/H for the 2.0mm version, and 28L/H for the 3.0mm version. 28L/H for the 3.0mm version. capacity tolerance is ±10%. The siphon height is 30cm, and the jet angle is 45 degrees. *Please note that the above data is based on water as a reference. If other liquids are used, the calculation can be done in proportion to the density. Details： *Material:Brass+aluminium *Hole diameter: 0.5mm,0.8mm,1.0mm, 1.2mm ,1.5mm,2.0mm *Outer diameter: 18mm *Overall length: 78mm *Nozzle size: 9/16 *Air inlet: 1/4 , please insert Φ8mm or 6mm hose. *Oil inlet: 1/8 , please insert Φ8mm or 6mm hose. *Color:Silver + gold A set of particle burner ignition system including: Stainless steel Siphon Nozzle: 1 Piece (0.5mm,0.8mm,1.0mm, 1.2mm ,1.5mm,2.0mm.) Burner Flame Rings: 1Piece Ignition Needle: 1Piece Package Contents: 1Set nozzle Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
