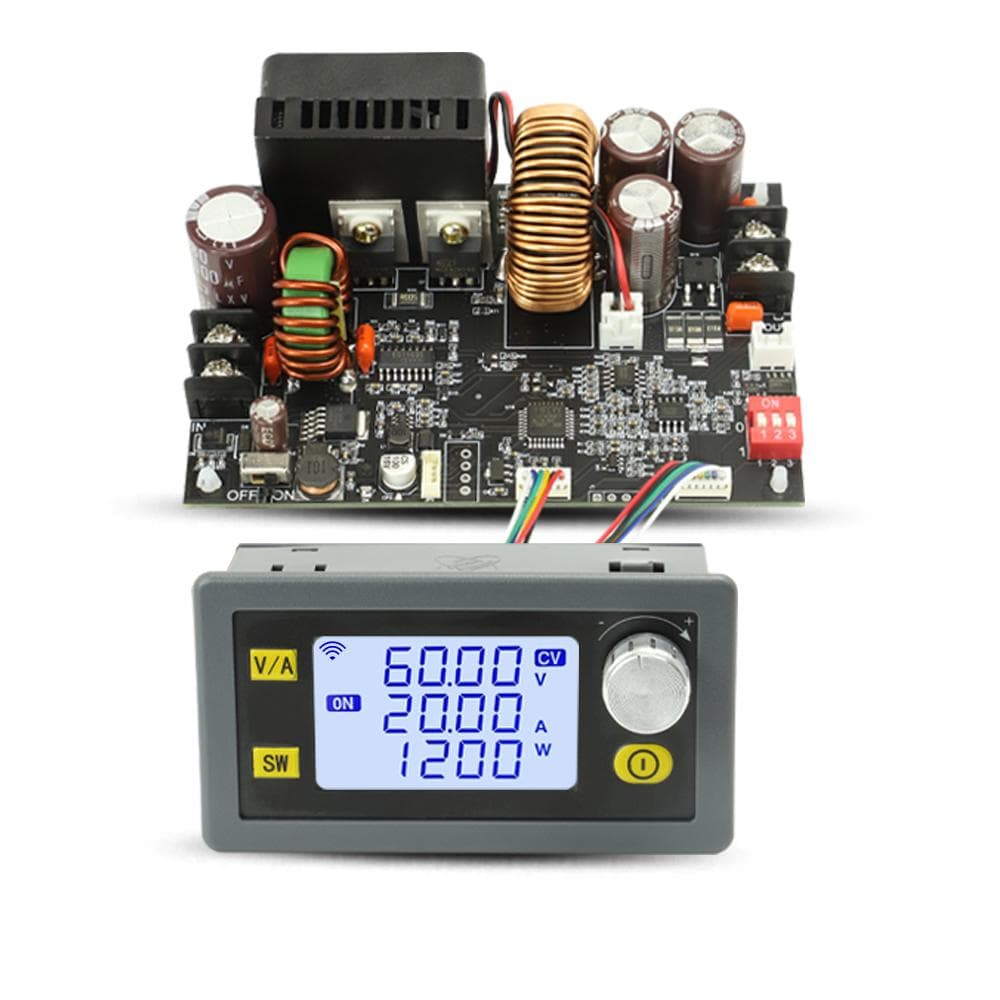

LCD Display CNC Adjustable Direct Current Stabilized Voltage Power Supplys Base Plate Constant XY-6020L multicolour

About this item

• Two types optional, you can choose XY-6020L and XY-6020L base plate depending on your demands.? XY-6020L:?Includes a voltage regulator, a base plate and 2 cables. The CNC direct current voltage regulator is constant voltage and current design, with the output voltage of 0.0-60.00V, output current of 0.0-20.00A, and output power of 1200W. Full-view special power supplys LCD large screen display, complete data display, simple operation, can provide stable working performance. XY-6020L base plate: Output voltage can be set, with the fixed voltage output of 5/9/12/24/36/48/60V. Low-cost communication power supplys, through a TTL to 485 module or WIFI module, it can realize the remotely controls of multiple machines, a separate base board can realize communication control, low-cost solution. Features: Voltage Stabilizer:? CNC direct current voltage regulator, which is constant voltage and current design, with the output voltage of 0.0-60.00V, output current of 0.0-20.00A, and output power of 1200W. Full-view special power supplys LCD large screen display, complete data display, simple operation, can provide stable working performance. In the operation interface, short press the encoder button, the power (W), capacity (Ah), energy (Wh), time (h) will be displayed in turn in the downstream; short press the SW button, switch into the input and output voltage display; long press the encoder button for 2 seconds to lock the set voltage and current to prevents misoperation. 10 groups of storage function, there are 10 groups of data from CD0 to CD9 (CD8=12 V; CD=24 V is not adjustable), the data is saved to CD0 by default. Support serial communication standard MODBUS?protocol. Multiple protections, voltage under voltage protecting, over voltage protecting, over current protecting, over power protecting, over capacity protecting, timeout protecting, over temperature protecting, external temperature protecting. Multi-parameter value setting, support setting input voltage undervoltage protecting value, overvoltage protecting value, overcurrent protecting value, overpower protecting value, maximum capacity, maximum energy, running time, power-on status, and running interface rotary encoder, default setting parameters (CV or CC). Base Plate:? Solid material, input adopts a common-mode inductor, significantly reduce the impact of the input power supplys wavenumber, to achieve low wavenumber output. Intelligent temperature control design, fan with large area heat sink, with superior heat dissipation effect. Output voltage can be set by dip switch, with the fixed voltage output of 5/9/12/24/36/48/60V. And the base plate can be used independently, the output current of 0-20A, the back of the base plate with true value table.? Low-cost communication power supplys, through a TTL to 485 module or WIFI module, it can realize the remotely controls of multiple machines, a separate base board can realize communication control, low-cost solution. Specifications: Name: Direct Current Voltage Stabilizer? Material: plastics+rinted circuit board Type: XY-6020L, XY-6020L base plate (optional) Input voltage: 6.0-70V Output voltage: 0.0-60V Output current: 0-20.00A Output ripple typical value: 100mv VPP Output power: 0-1200W Maximum output voltage: (input voltage 1.1)-2 Input voltage measurement resolution: 0.01V Output voltage setting measurement resolution: 0.01V Current setting: 0.01A Input voltage measurement resolution measurement accuracy: 1percent + 5 words Output voltage setting: 0.4percent + 1 word Output current setting and measurement accuracy and measurement accuracy: 0.5percent + 3 words Cooling fan on: current more than 2A, power more than 50W, temperature more than 50 celsius Cooling fan on and then off: current <1.5A; power <45W, temperature <45 celsius Protection Mechanism: External temperature protections: 0-110 celsius default off Input overvoltage protections: 71V default Input under-voltage protections: 4.8-71V adjustable, default 4.8V Output over-voltage protections: 65V, default 65V Output overcurrent protections: 0-22A, default 22A Output over power protections: 1250W, default 1250W Over temperature protections: 60-110 celsius , default 95 celsius Timeout protections: 0-100H adjustable, default off Over capacity protections: 0-9999AH adjustable, default off Super energy protections: 0-9999WH adjustable, default off Item size: XY-6020L size: 79 * 43 * 27mm / 3.11 * 1.69 * 1.06in XY-6020L base plate: 72 * 109 * 42mm / 2.83 * 4.29 * 1.65in Item weight: XY-6020L size: 180g / 6.35ounce XY-6020L base plate: 230g / 8.11ounce Package size: 150 * 130 * 80mm / 5.91 * 5.12 * 3.15in Package weight: XY-6020L size: 190g / 6.70ounce XY-6020L base plate: 240g / 8.47ounce Packing List (XY-6020L): 1 * Direct Current Voltage Stabilizer 1 * Base Plate 2 * Cable OR Packing List (XY-6020L Base Plate): 1 * XY-6020L Base Plate
