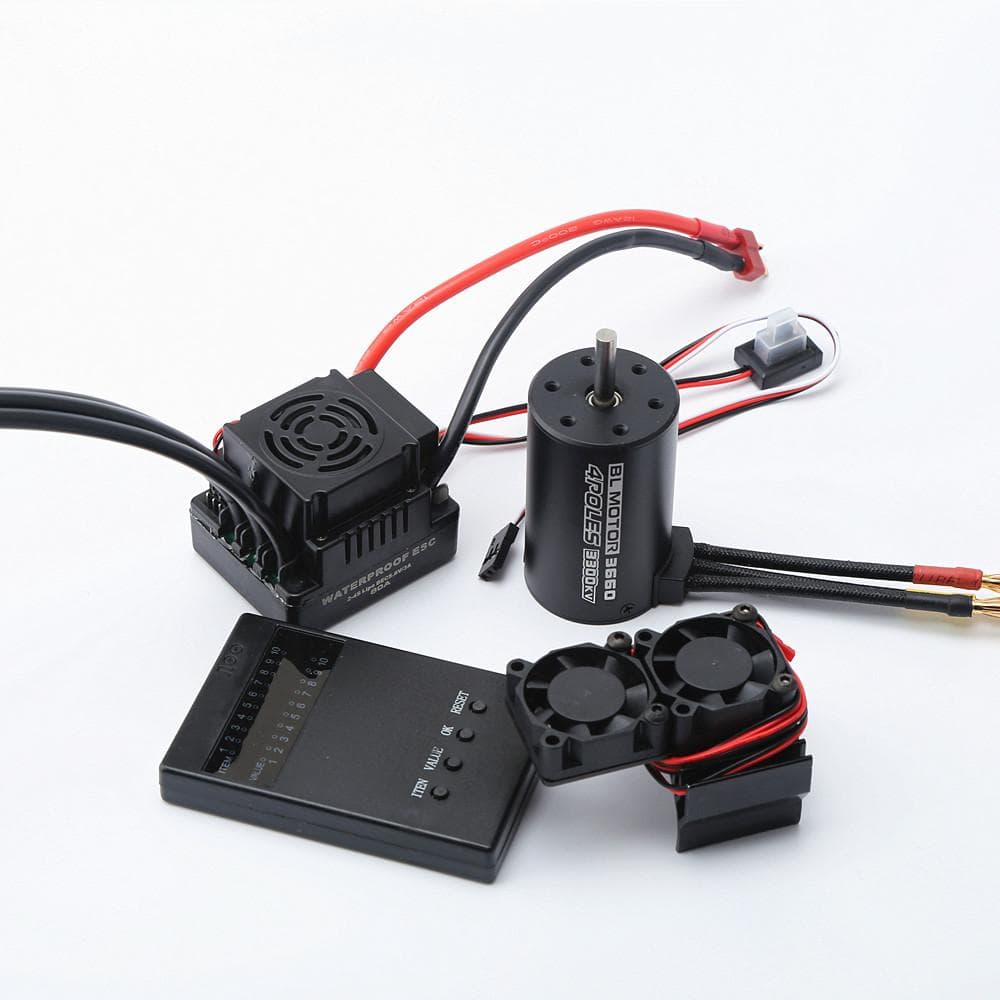

Waterproof 3660 3800KV Brushless Motor 80A Brushless ESC Programming Card With Motor Heat Sink 3300KV black

About this item

• Features: 4 pole 12 slot hi-torque motor design,CNC machined 6061 T6 billet aluminum heatsink can. High purity copper windings maximizes efficiency. High RPM ABEC 5 oversized bearings. Universal fit, fits all 1/8, 1/10 brushless cars,Precision balanced rotor, smoothness for best reliability and maxium RPM.? ? ? Stator- super thin 0.2mm laminations,Removalbe/replaceable rotor,Precision engineered for maxium energy coversion. Specifications: Item: 3660 Motor Waterproof Level: Splash-proof Watts: 1200W Max voltage: less than 13V Max Amps: 92A KV(RPM/Volt): 3800KV Max RPM: 50000 Diameter: 36mm Length: 60mm Shaft length: 17mm Shaft diameter: 5.00mm Plug type: 4mm golden banana plug The 80A brushless ESC is built with the highest quality components to ensure high efficiency operation. It Features enhanced throttle response. excellent acceleration, strong breaks and throttle linearity, which is suit for 1/8 ?Remote?Control Car. 80A EscCompatible with sensorless brushless motors. Super smooth and accurate throttle linearity. Built-in high-efficient and high-power 5.8V/3A SBEC. Enhanced throttle response, excellent acceleration, strong brakes and throttle linearity. Mutiple protection Features: low voltage cut-off protection for lithium or nickel battery, over-heat protection, throttle signal loss protection. Item: 80A brushless ESC Brand: Queen hobby Continous current: 80A Burst current: 480A/10sec Power supply: 2-4S LiPo / 4-12S NiMh BEC: 5.8V/3A Power supply plug: T plug Motor plug: 4mm banana connector Replacement?for: 1/8 1/10 Remote?Control car Cooling system: Cooling fan Programmable: YES Programming Card for Remote?Control Car ESC Brushless Electronic Speed Controller Light weight,Easy to use,Portable design Programming Card for Remote?Control Car ESC Brushless Electronic Speed Controller, which was specially designed for Brushless Electronic Speed Controller selled in our store. Item: Programming Card Low voltage cut off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off Start mode:Medium, soft, strong Max brake force: 25%, 50%, 75%, 100% Max reverse force: 25%, 50%, 75%, 100% Neutral range: 6%, 9%, 12%, work state 3660 3670 Motor Heat Sink Fan Cooling Racing 550 Heatsink Electric Dual Proof Cover aluminum Twin 1/10 ?Remote Control Car Powered by DC voltage:5V-6V Keep your temperatures in check and your motor running efficient and cool with our heatsink and cooling fan combos. Designed to be powered by DC voltage only between 5.0V and no more than 6.0V MAXIMUM! If you choose to power our cooling fans with voltage exceeding 6.0V? you are doing so at your own risk! Please make sure that your power source (battery pack, receiver, etc.) is able to supply consistent voltage no lower than 5.0V and no higher than 6.0V. If powering from an ESC, check with the ESC manufacturer to make sure if your ESC is capable of providing enough auxiliary power to handle the added load of extra cooling fans; some? ESC that have built-in fans may not be able to reliably power any additional cooling fans.? Replacement for: 3360/3670 Size Electric Engine Motor ? Package Information: Package Size: 9*7*5cm Package Weight: 448g General Box Package Package?List: 1*? Brushless Motor 1*? ESC 1*? Heat Sink Cooling fans 1*? Programming Card
