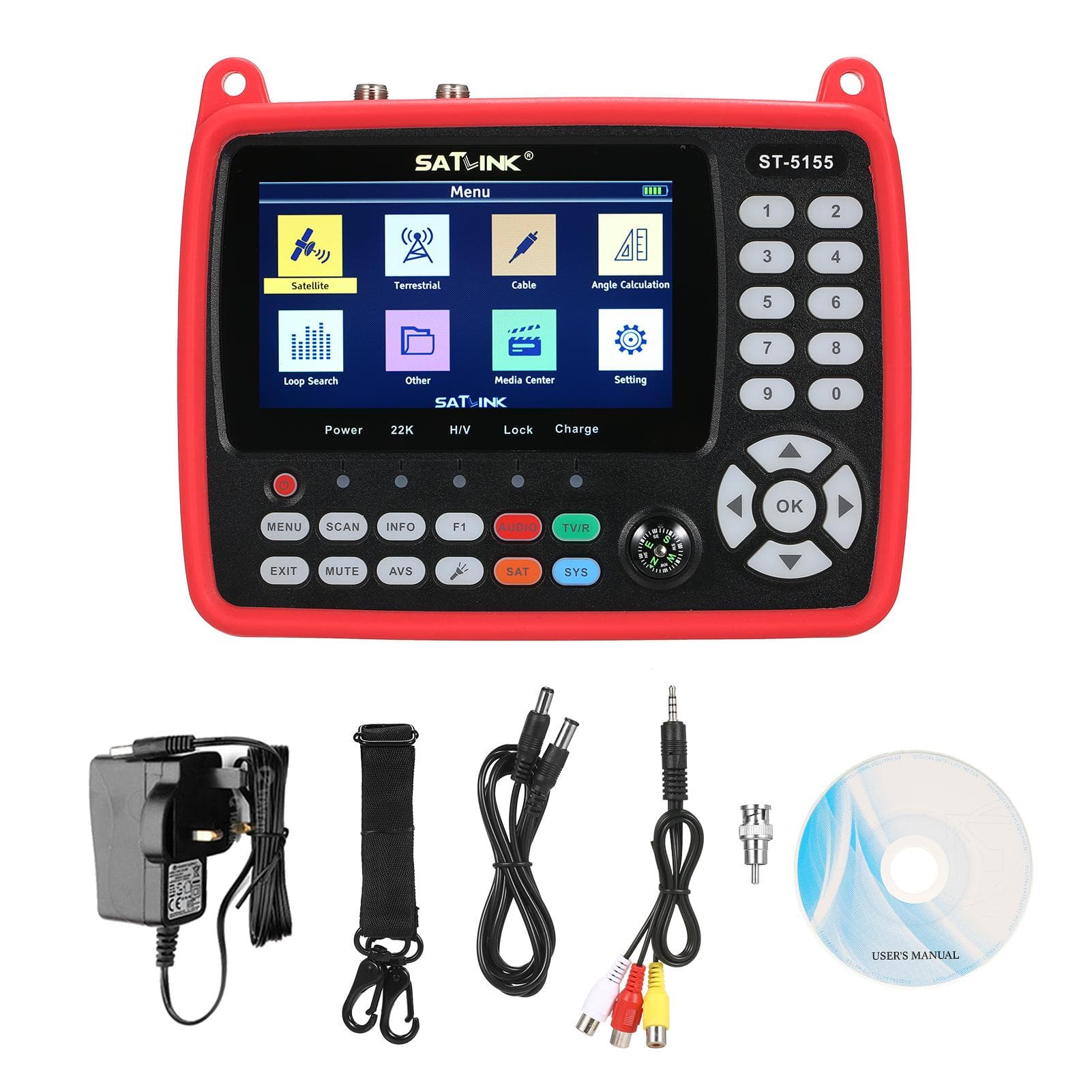

Digital Satellite Finder Meter DVB-S/S2/T/T2/C Combo Meter Portable Satellite TV Signal Finder UK Plug

About this item

• This is a DVB-S2/m/T2 C and MPEG-2/4 H.264/H 265(10 Bit) compliant handheld combo meter. With its compact size, light weight, intuitive user's interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital Satellite TV service, antenna signal and cable signal to residential homes or multi-dwelling units. Features: 4.3-inch large clear TFT LCD screen, easy to read and operate. Fully DVB-S/S2/T/T2/C compliant, satisfying different needs. Support MPEG2, MPEG4, H.264/MPEG4 AVC, H.265 (10 Bit)/HEVC hardware decoding. Digital meter for signal strength and quality. Supports auto scan and manual scan for flexible use. With sound and light alarm for locking signal. Able to automatically calculate the angle of AZ and EL. Supports DISEQC 1.0/1.1/1.2, Unicable, 0/22KHz tone. Support both AV out and AV in, H-Mi out. With LNB short-circuit protection for safe use. Built-in 7.4V/2600mAh large capacity Li-ion battery, which has long operational hours. Software can be easily upgraded via USB port. Meter is in compact size and light weight, very easy to carry. Specifications: Plug Type: EU / US / UK (Optional) Material: ABS Transmission Standards: DVB-S2X/S2/S, DVBT/T2, DVB-C, H.265(10bit) Item Size: 178 * 140 * 45mm / 7.01 * 5.51 * 1.77in Item Weight: 612g / 21.60oz Package Weight: 1029g / 36.29oz Package Size: 29.8 * 20.5 * 6cm / 11.73 * 8.07 * 2.36in SATELLITE INPUT/DEMODULATION: Connector Type: F type Input Frequency: 950-2150MHz Signal Input Level: -65~-25dBm Band Switch Control: 22KHz LNB Supply: 13V/18V, IMax 400mA Demodulation Type: QPSK, 8PSK, 16APSK, 32APSK Symbol Rate: 2<Rs<45Mband(SCPC/MCPC) DVB-T/T2/C INPUT/DEMODULATION: Connector Type: Female type Input Frequency: 48-862MHz Signal Input Level: -79.5dBm (DVBT/T2), -67dBm (DVB-C) ANT Supply: 5V, 12V (+5percent ) Imax 100mA Demodulation Type: QPSK, 16QAM.64QAM, 256QAM LCD Features: LCD Type: TFT transmissive Number of Dots: 800(RGB)*480 Active Area: 95.04 * 53.86mm2 (W*H) AV OUTPUT INTERFACE: Connector Type: 3.5mm jack Video Output: CVBS Audio Output: Stereo audio L/R output H*MI OUTPUT CONNECTER: Format: H*MI 14 AV INPUT INTERFACE: Connector Type: 3.5mm jack Video Input: CVBS Audio Input: Stereo audio L/R input AUDIO/VIDEO PROCESSING: Video Decompression: HEVC main prof ile@level 4.1 and main 10 profile@L4.1 Resolving Rate: 480p, 576p, 720p, 1080i/p Video Format: 4:3, 16:9 Audio Decompression: MPEG-1/2 Layer l/II/III, Dolby AC3/AC3+ Audio Output Mode: Stereo, Mono, R/L DATA SERVICE PORT: Connector: USB Data Protocol: USB2.0 interface File Management System: NTFS,FAT32 File Format: wma, mp3, mp4, avi, jpg, jpeg, bmp, img POWER SUPPLY: Li‐ion Battery: 7.4V, 2600mAh li-ion battery Adapter: DC12V/1A (output), 100‐240VAC 50/60Hz (input) Power Consumption: Max. 10W Package List: 1 * Digital Satellite Meter 1 * CD 1 * AV Cable 1 * Audio Cable 1 * Power Adaptor 1 * Carry Strap 1 * Manual (English)
