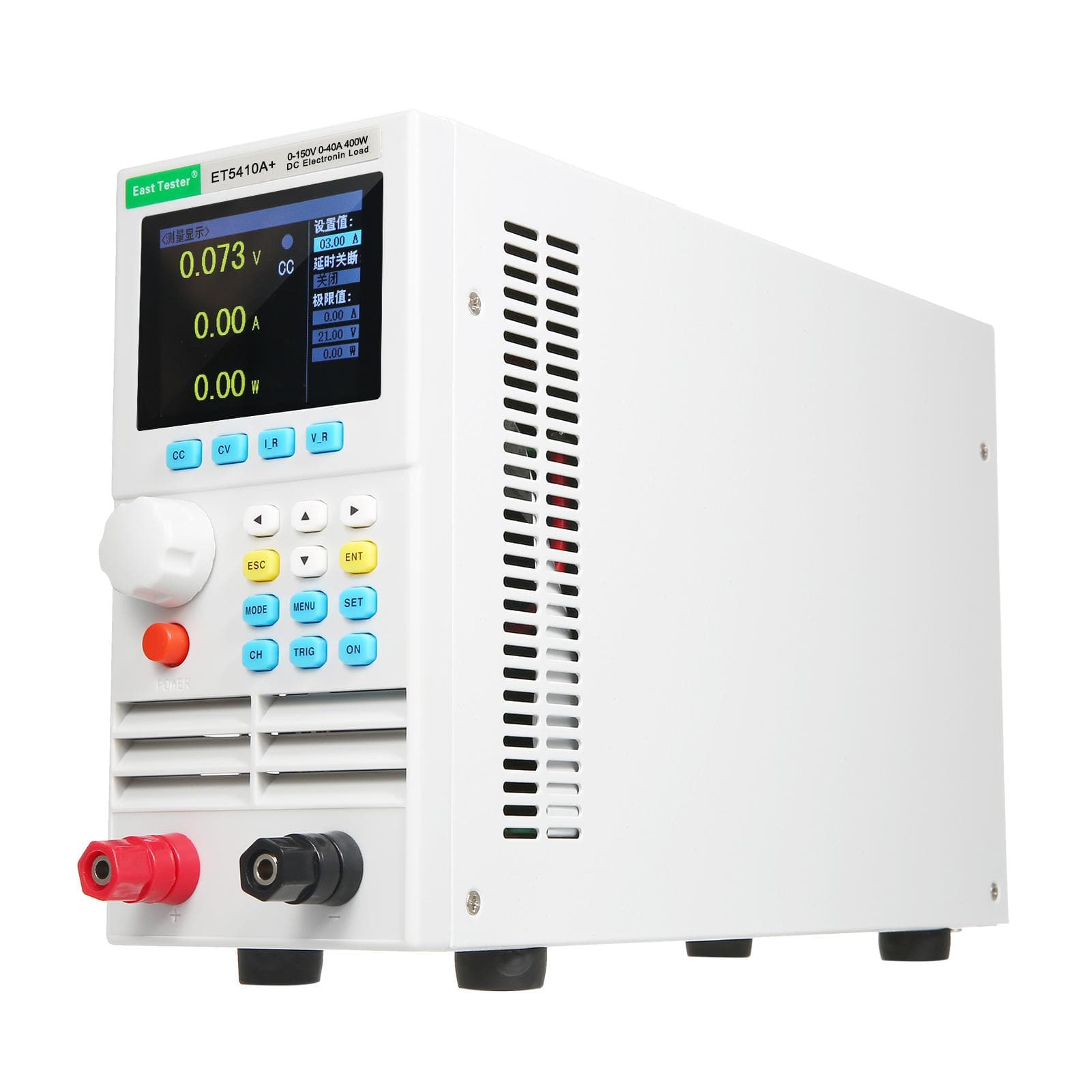

East Tester ET5410A+ Programmable Single-channel DC Electronic Load 150V 40A 400W Single Channel DC UK Plug

About this item

• The DC programmable electronic load is equipped with a 2.8-inch LCD screen, which is convenient and simple to operate, stable in operation, and superior in performance. Equipped with 12 common modes and complete test functions, and the test resolution can reach 1mV/1mA. It can be widely used in the production test of chargers, switching power supplies, linear power supplies, batteries and other industries. Features: It provide CC, CV, CR, CP, and CC+CV, CR+CV several basic measurement modes. Adopt 2.8-inch TFT LCD screen, display rich content, support Chinese and English display. The operation process is simple and convenient, and with the intuitive interface display system, it is easy to get started. With key lock function to prevent misoperation. Provide battery internal resistance test; provide software remote compensation function. Provide professional battery testing and LED testing. Dynamic test mode can test the dynamic output performance of the power supply. Scanning test mode can test the power output continuity within a certain range. The list mode can simulate a variety of load status changes. Short circuit test can be used to simulate load short circuit. Support external trigger input (DB9 interface is required). Built-in buzzer alarm. Power-off data storage function. With overvoltage, overcurrent and overpower protection functions, overvoltage and overcurrent parameters can be flexibly set to effectively protect the load. It has secondary over-temperature protection function to realize double over-temperature protection of software and hardware. With intelligent fan speed control function, it can effectively reduce fan noise during work. With output polarity reverse protection. Specifications: Plug Type: EU / US / UK (Optional) Material: Aluminum alloy Display: 2.8 TFT LCD screen Rated Input Power: 400W Rated Input Voltage: 0-150V Rated Input Current: 0-40A CV Mode: Range: 0.1-19.999V, 0.1-150.00V Resolution: 1mV, 10mV Accuracy: ±(0.05%+0.02%FS) CC Mode: Range: 0-3.000, 0-40.00A Resolution: 1mA, 10mA Accuracy: ±(0.05%+0.05%FS) CR Mode: Range: 0.05Ω-1KΩ, 1KΩ-4.5KΩ Resolution: 10mΩ, 100mΩ Accuracy: ±(0.1%+0.5%FS) CP Mode: Range: 0-400W Resolution: 10mW Accuracy: ±(0.1%+0.5%FS) Tran Test Mode: CC, CV Accuracy: T1&T2:? 50ms-60s Battery Test (Discharge Mode): CC, CR Max. Discharge Capacity: 9999Ah Resolution: 1mA, 10mA, 10mΩ, 100mΩ Interface: USB Power Supply Voltage: 100Vac±10%~240Vac±10%, 50/60Hz Display: 2.8-inch TFT LCD screen with resolution of 320×240 Operating Temperature: 0~40℃ Storage Temperature: -10~70℃ Relative Humidity: <80% Item Size: 310 * 190 * 90mm / 12.20 * 7.48 * 3.54in Item Weight: 2962g / 6.53 Package Weight: 3557g / 7.84 Package Size: 39.5 * 28.5 * 19.5cm / 15.56 * 11.22 * 7.68in Package List: 1 * DC Programmable Electronic Load Tester 1 * Power Cord 2 * Fuse 1 * Manual (English)
