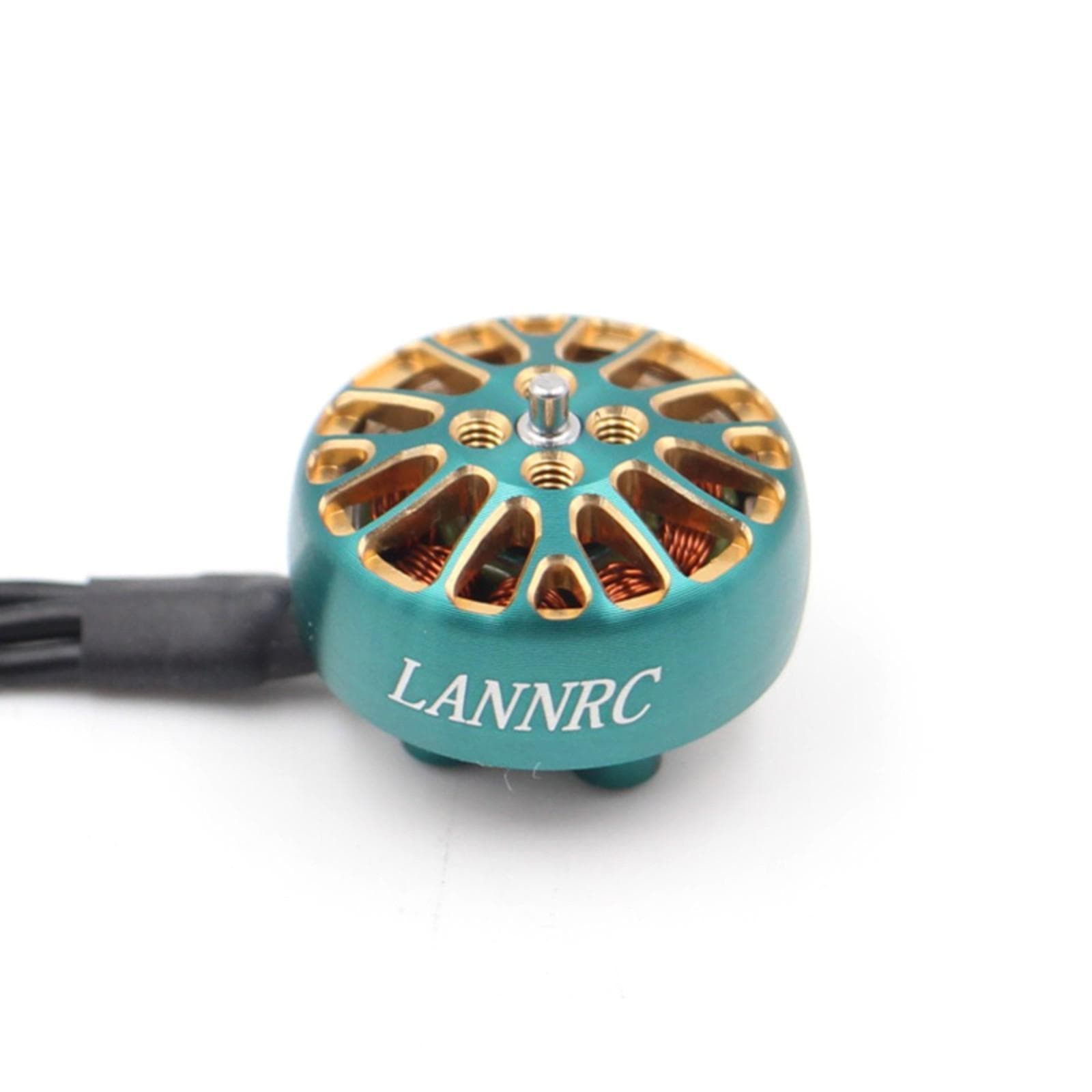

LANNRC 1404 PLUS 4600KV Brushless Motor 2~4S Lipo 1.5mm Shaft Diameter for 2~4inch Toothpick 1PCS-4600Kv green

About this item

• Features: Machined aluminum front housing with fan-style cooling holes that pump air through the motor while it runs. Specially designed NdFeB magnets with high temperature rating for trouble-free operation. High quality stator plates are epoxy coated on the inner surface to prevent winding shorts. High quality shielded and permanently lubricated ball bearings are used to support the motor shaft in all our motors. High temperature adhesives are used to secure the stator windings and prevent them from shifting and getting pinched or shorting out . Specification: Parameters: Model: 1404 PLUS KV:4600 Configu-ration: 9N12P Stator diameter: 14mm Stator Length:4mm Staft Diameter:2mm Size: Φ19.3*14.8mm Weight:10.3g Idle current (10) @10V: less than 0.72A No. of cells (Lipo): 3~4S Max continuous power (W) 60S: 287.8W Internal Resistance: 159mΩ Max current(60S): 17.99A Cable: 22AWG # 150mm Cable Package Information: Package Size: 5*5*2cm Package Weight: 80g Plastic Package Packing list: Type 1: 4* Brushless Motor(4600Kv or 3800Kv) Type 2: 1* Brushless Motor(4600Kv or 3800Kv)
