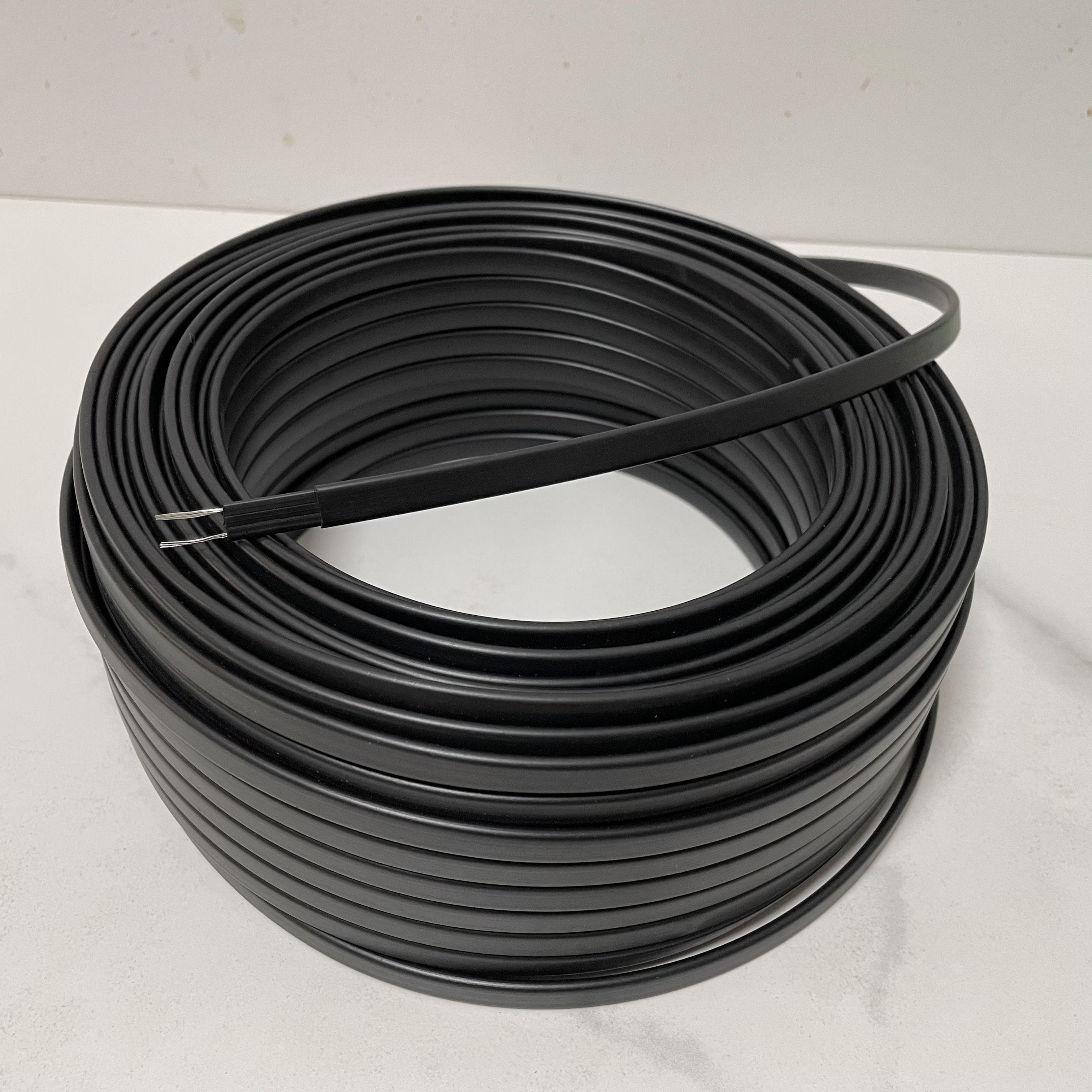

100M Pipe Heating Cable 25W/m Self-regulating Heating Tape Snow Melting Drain Water Pipe Freeze Protection Waterproof Heat Wire Heat Trace System 100M

About this item

• Tips: max circuit length about 30 meters. Insulation Material : PE Conductor Material : Copper Conductor Type : Stranded Application : Heating Certification : CE,RoHS,EAC Voltage : 220v-240v Power : 25w/m Thickness : 3mm Width : 8mm Application : defrost, snow melting, heat trace, other heating Applications This cable is suitable for household drinking water pipe, drain pipe freeze protection in winter and other heating applications. The cable can self regulate the output power according to the temperature, it won't overheat, so the temperature controller is not necessary. The cable is with high quality PE jacket, and inner has the PE composite insulation layer, better water-proof and good quality. Technical Datas: Cable type: self-regulating heating cable 1. Max maintain temperature: 65℃ 2. Max enduring temperature: 135℃ 3. Min bend radius: 15mm 4. Conductor: tinned copper wire Installation Steps: 1) Seal the end of the cable with heat shrinkable tube or other electrical insulating tape. DO NOT connect the two conductors together! 2) Connect the other end with cold wire or plug (for connecting to the power supply). 3) Wrap the heating cable on water pipes or fastening straight on pipes, both are ok. Put the whole cable on the pipes and fasten it every 30~60cm with thermal tape or aluminum tape(sold in my store). 4) Suggest to wrap a layer of rubber insulation on the pipe, enhance efficiency of the heating cable and save energy, also can protect the heating cables. 5) Connect or plug into 220~240V. The heat trace system is finished. Package includes:100m heating cable
