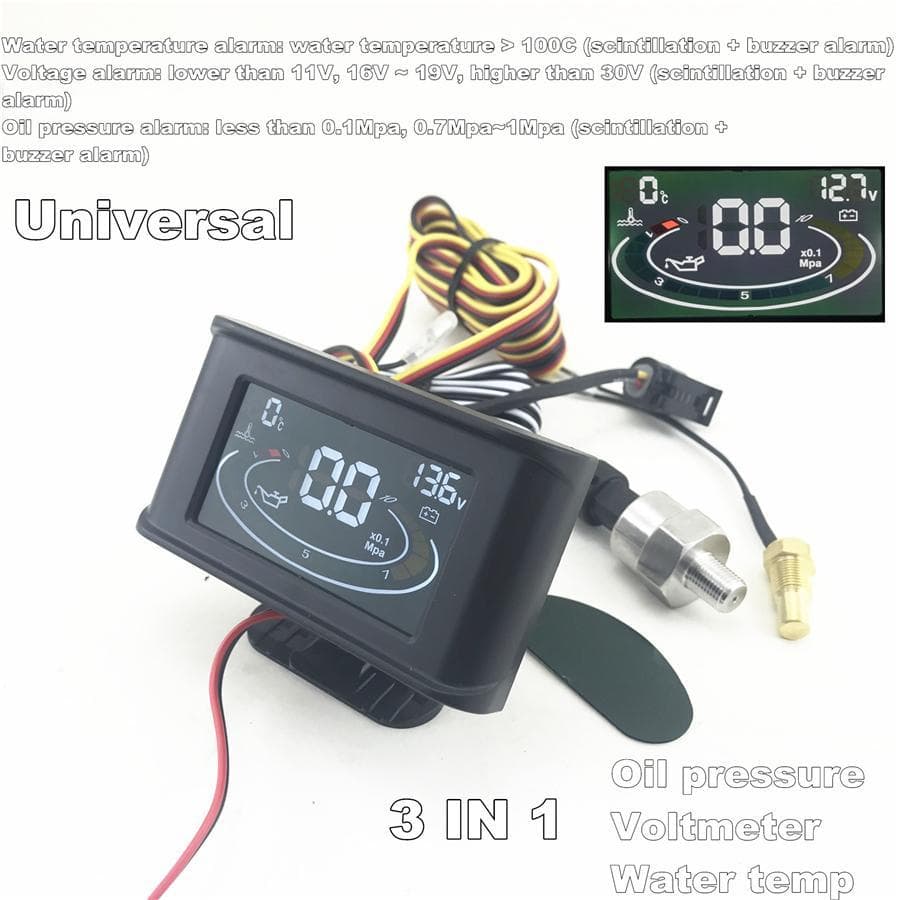

3 in 1 Digital LCD Car Voltmeter Water Temperature Temp Gauge Oil Pressure Meter

About this item

• Introduction The LCD three-in-one meter is a new generation of products to replace the traditional mechanical and direct-induction automotive water thermometers, voltmeters and oil pressure meters. The product uses advanced MCU technology to monitor the water temperature of automotive water tank, battery voltage and oil pressure in engine in real time. It has visual display, high accuracy, low power consumption, good stability, strong anti-vibration performance and wide application range (12V/24V). It has the characteristics of convenient installation, long service life and complete protection function. It also has the alarm function. It is the preferred product for measuring the parameters of automobile water thermometers, voltmeters and pressure gauges. Technical parameters Operating voltage: DC9V-36V, Material:Plastic Shell Product size: 55mm * 95mm * 18mm Measuring range: 0-100℃, DC9V-DC35V, 0-1. OMpa. Water temperature alarm: water temperature > 100C (scintillation + buzzer alarm) Voltage alarm: lower than 11V, 16V ~ 19V, higher than 30V (scintillation + buzzer alarm) Oil pressure alarm: less than 0.1Mpa, 0.7Mpa~1Mpa (scintillation + buzzer alarm) Measurement accuracy: ±1℃, ±0.1V, ±0.01Mpa, working environment temperature: -40℃~75℃ working environment humidity: 45%-75% RH Application: Suitable for Car,Motorcycle or by your need! Suit Measurement object: compressed air, oil Feature: With digital display, intuitive observation Parameter display precision and stability, low power consumption Easy installation, stable performance, anti vibration and anti bump When the alarm that is displayed flashing alarm Temperature Sensor Screw:M10 Oil Pressure sensor:1/8 NPT Package Included（as picture） 1x Gauge 1x Emperature sensor 1x Oil Pressure sensor 1 Set Cable Note:Please make sure you can Installation,if you need help you can contact your local car repair workshop,Thank you!
