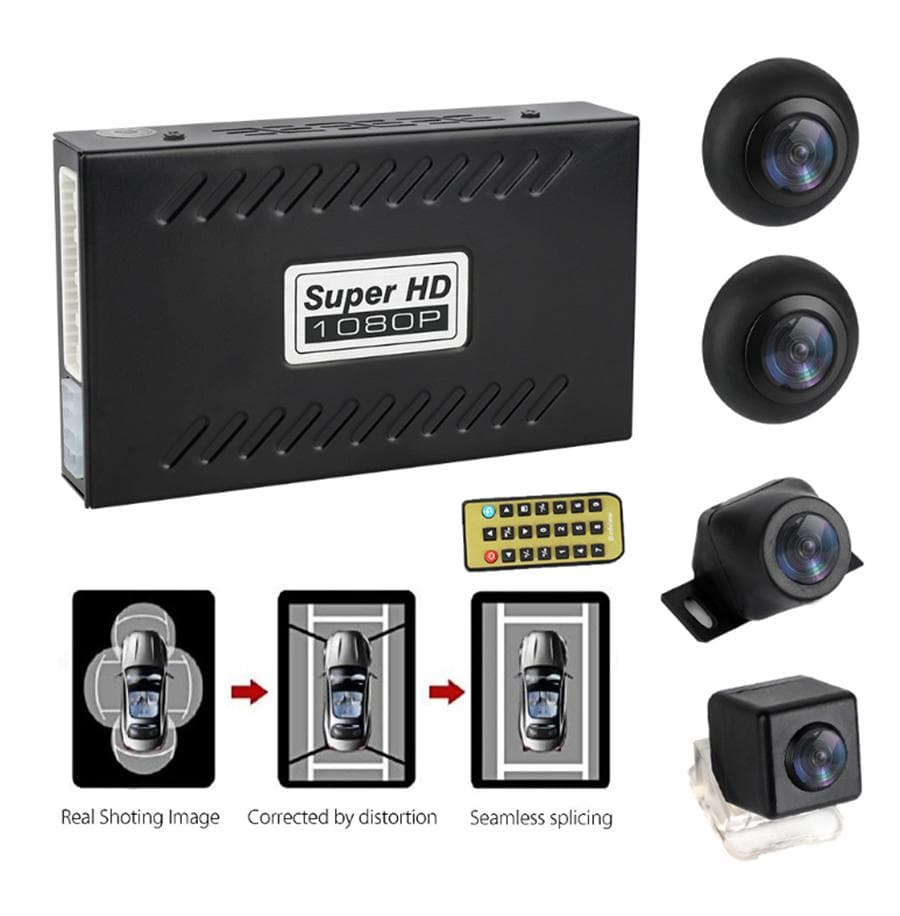

360 Degree Bird View Panoramic System Seamless Rearview Camera Car DVR Universal

About this item

• 360 Degree Bird View Panoramic System Seamless Rearview Camera Car DVR Universal 360 Degree waterproof seamless Bird View Panoramic System 4 Camera Car DVR Universal Recording Parking Rear View Cam Main Features: 1.Seamless splicing technology: auto image 2.Universal for almost all the cars 3.4 super wide angle cameras ( above 170 degree ): waterproof IP67, night vision . Recorded data can also be used to provide irrefutable proof against fraudulent claims 4.Convenient for installation: no harm to car appearance 5.360 degree bird's-eye view: provide the driver a clear 360 degree bird's-eye view around vehicle 6. Eliminate most of the blind spots: makes much easier for parking and passing the narrow road 7. Loop overwrite recording: automatically overwrite the original video and continue recording 8. Intelligent parking monitoring: when parking car, the parking system can continue working, intelligent induction open 9.Power consumption protection: smart sensor battery voltage, to prevent the original car power consumption 10.The remote control powered by 1 x CR2025 battery ( not included ) Host: 1. supply voltage: 12v 2.Voltage range: 8-30V 3.Consumption current (without camera) <300@12v 4.Video output resolution: 720*480 60Hz 5. language: Chinese/English 6.Operation temperature: -20-65 ℃ 7.Storage temperature: -40 - 85 ℃ 8.TF Card: Support(Max. 32G) (not included) Product parameter: Camera: 1.Image sensor: PC1099 2. Optical size:1/3 inch 3.Pixel pitch: 5.0*7.4um 4. Effective pixel: 720(h)*480(v) pixel 5.Horizontal resolution: 580 TV lines 6.Video format: NTSC 7. Dynamic range:>72db 8. S/N ratio: >48db 9. minimum illumination: 0.1 Lux 10. view angle: 170° 11.video output: 1.0V& 75Ω Notes: - First, the car must have a display screen - Second, the original car screen as long as has the rear view image, 90 percent are to be decoders, whether it is a domestic car or joint venture car, before loading to confirm whether the customer has a decoder, if not, then the car can't install this 360 degree view car camera system - Third, if the customer's car navigation is added later, this 360 degree view car camera system can be installed How to get 360 degree,it need to connect the following cables: 1. yellow cable is connected to 12V constant electric, 2. red cable is connected to ACC, 3. black cable is connected to grounding wire, 4. blue cable is connected to reversing detection wire, 5. yellow RCA is connected to video wire, 6. the white trigger wire of left view, right view and rear view extension wire---- white trigger wire on left view extension wire is connected to the positive pole of left turn light, white trigger wire on right view extension wire is connected to the positive pole of right turn light, the white trigger wire of rear view extension wire is connected to the positive pole of back-up light. All cables are connected correctly and it will be OK to use 360 degree. Package included: 1 x Control Host 4 x Camera(Front, Rear, Left, Right) 4 x Camera Extension Cord 1 x Wire Harness 1 x Video Output Cable 1 x Infrared receiver 1 x Remote Controller 1 x Trapper 1 x User Manual 1 x Installation package(cable tie,Double-sided sticker,Screw,Bracket,Threading tube)
