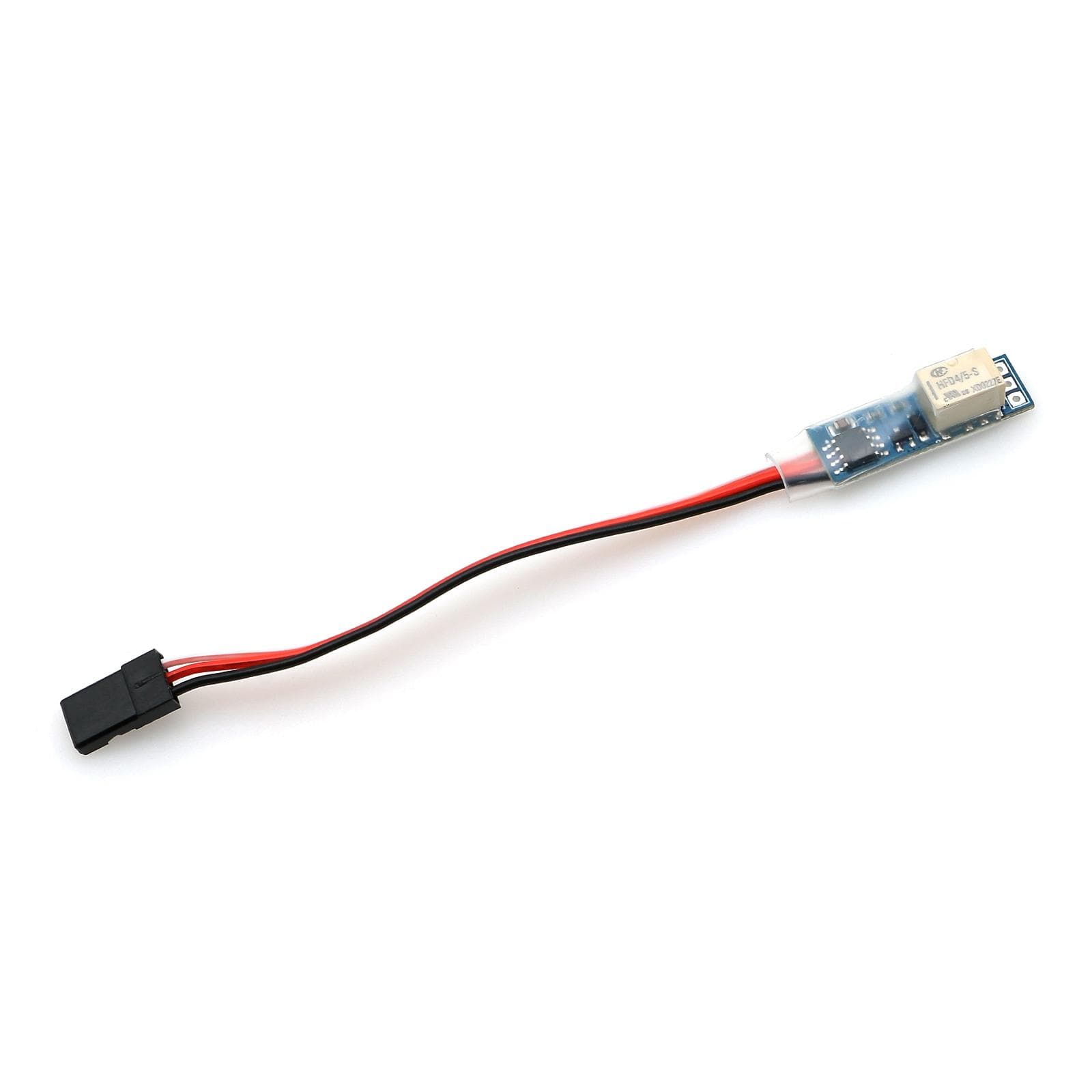

PWM Relay Switch 30V 2A Electronic Controller Module DIY Model Universal On-off for FPV Remote black/red

About this item

• This product is PWM controlled relay switch, different from the field effect tube, it is directly established the physical line connection, so can adapt to higher DC voltage, but also can connect to AC. Features: Fast response speed allows for quick switch operations, improving the efficiency of the device.? The PWM-controlled relay switch has excellent durability and stability, reducing the occurrence of faults and lowering maintenance costs.? The design is simple, making installation and use very convenient.? The PWM relay switch can be used in conjunction with various types of models and remote controls.? The working method of the PWM PWM on-off relay switch can prevent short circuits or fires caused by excessive current, enhancing the safety of use. Specifications: Item Name: PWM Controlled Relay Switch Main Material: Metal Control Terminal: Input voltage: 5V (connected to the receiver) PWM control: at high ( more than 1750us), NO(Normal Open) and COM(Common) are connected (at the same time, NC(Normal Close) and COM(Common) are disconnected). (This means that NC (Normal Close) and COM(Common) are connected at all times except more than 1750us) Here PWM is the steering gear signal, can turn the steering gear, and you can use this device There are solder joints that can be set to delay 3 seconds, automatic disconnect Connecting End 30V DC allowed current 2A 125V AC allows current 0.5A Motherboard size: 29 * 9 * 8 mm (length*width*height) White Relay size: 10 * 6.5 * 5.4 (mm) Power consumption of the relay coil: about 140mW Color: Black and Red Weight: 3.3g Package Information:? Package Size: 11*7*2.5cm Package Weight: 8g Package List: 1 * PWM Controlled Relay Switch
