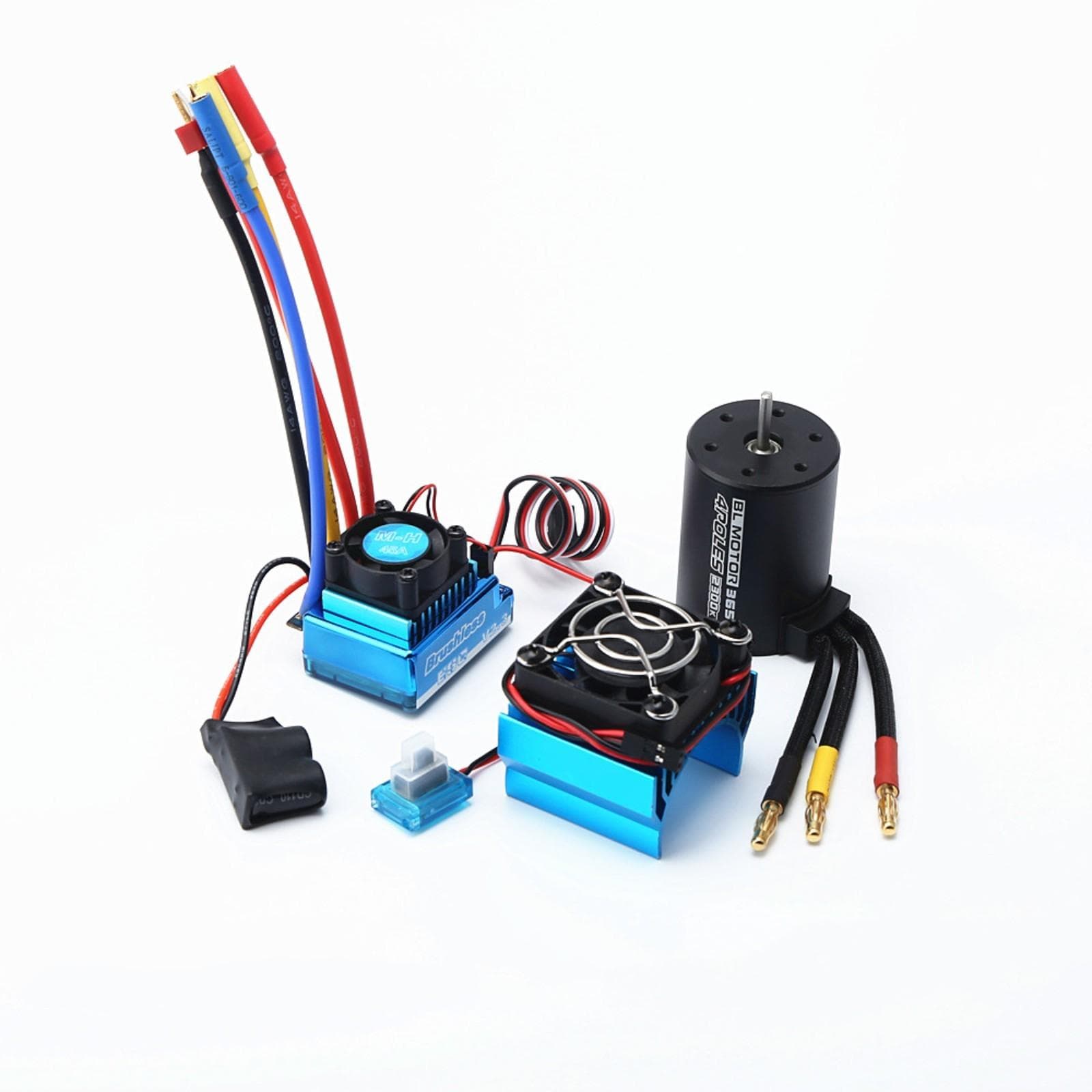

3650 2300KV Brushless Motor & with 120A ESC & Heat Sink Cover Combo Replacement for HSP HPI Wltoys 45A blue

About this item

• Features: 3.17 5mm shaft diameter,4 pole 12 slot high-torque motor design. High purity copper windings maximizes efficiency,Precision engineered for maximum energy conversion. Precision balanced rotor,smoothness for best reliability and maximum RPM. Mutiple protection Features: Low voltage cut-off protection, over-heat protection, throttle signal loss protection. Replacement for 1:8/1:10 Remote Control Car and Boat Part. Specifications: Motor Specifications: 3650 2300KV Motor Watts: 900W Max voltage: less than 22V Max Amps: 41A KV(RPM/Volt): 2300KV Max RPM: 50000 Diameter: 36mm Length: 50mm Shaft length: 15mm Shaft diameter: 3.175mm Plug type: 4mm golden banana plug 120A ESC Specification: Continuous Current: 120A Burst Current: 480A / 10sec Battery: 2-3s LiPo / 4-12s NiMh BEC output: 5.3V / 5A(Switch Mode) Power Supply Plug: T Male Motor Plug: Female 5mm Bullet Connector Dimension: Approx. 43 * 31 * 32mm / 1.7 * 1.2 * 1.3inch Heat Sink Cover Specification: It is made of Aluminum Alloy and Plastic combined,with fan cooling and stainless steel protecting net cover Replacement for 1:10 Remote Control ?Car 540 3650 3660 3670 Motor Heatsink motor outdiameter is 36MM can be suitable Color: Blue Material: Aluminum Alloy, Plastic Dimension: 46x40x40mm / 1.81x1.57x1.57 (LxWxH) Cable length: 290mm? Weight: 48.6g Package Information: Package size: 8 * 6 * 5cm? Package weight: 302g Gift box package Package List: 1 * 3650 2300KV Motor 1 * Waterproof 120A Brushless ESC 1 * Heat Sink Cover
