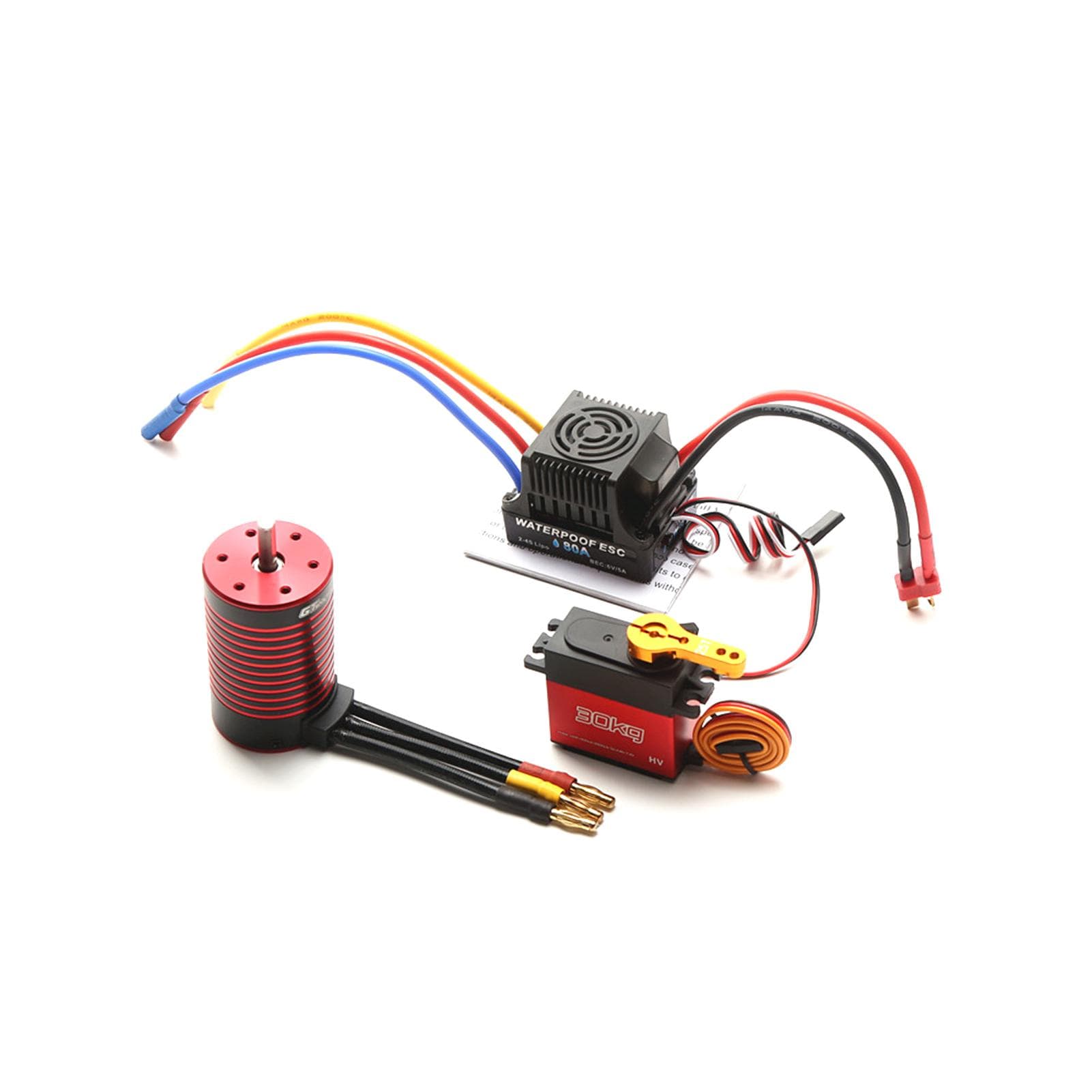

GTSKYTENRC Waterproof 3660 Brushless Motor 4200KV with 80A Brushless ESC 30KG Servo Replacement for 4200KV

About this item

• Features: 4 Pole 12 Slot Hi-torque Motor Design. Stator - Super Thin (0.35mm) Laminations. High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings. Maximizes Efficiency, High RPM ABEC5 Oversized Bearings. Precision balanced rotor, smoothness for best reliability and maximum RPM. The package includes 4200KV brushless motor, 80A brushless ESC and 30KG servo, Replacement for TRAX4 WLtoys Remote Control Car 1/8/1/10 Tamiya. Specifications: KV(RPM/Volt): 4200KV Watt: 1200 Max RPM: 50000 Max Voltage: less than 12V Max Amps: 100A Rotor Poles: 4 Diameter: 35.5mm Length: 59mm Shaft Length: 17mm Connector: 4.0mm Gold Weight: 218g Shaft(mm): 3.175mm 80A Brushless ESC: Name: 80A ESC Cont.Current/Burst Current: 80A/480A Motor Type: Sensorless Brushless Motor For 2S Lipo or 6 Cells NiMH: 1. On-road: 3670/3660-Size or smaller motor with the KV less than 3000KV 2. Off-road: 3670-size or smaller motor with the less than 3000KV For 3S-4S Lipo or 9 cells NiMH: On-road: 3660-Size or smaller motor with the KV less than 3000KV Off-road: 3660-size or smaller motor with the less than 3000KV Suitable Car: 1/10 1/8 Remote Control Car Resistance: 0.0005ohm Battery: 2-4S Lipo/4-12Cells NiMH BEC Output: 6V/5A (Switch mode) Dimensions/Weight: 52*39*38mm/92g Waterproof 30KG Servo 180 Degree: Apply Environmental Conditon: 1. Storage Temperature Range: -30 degrees C~80 degrees C 2. Operating Temperature Range: -25 degrees C~70 degrees C Standard Test Environment: 1.Temperature Range: 25 degrees C~70 degrees C 2. Humidity Range: 65percent +/-10percent Mechanical Specification: 1. Size: 40.0*20.5*40.5mm 2. Weight: 69g+/-2g 3. Gear Type: 5 Metal 4. Limit Angle: 180 degrees 5. Bearing: 2BB 6. Horn Gear Spline: 25T Diameter: 5.9mm 7. Horn Type: Plastic, POM 8. Case: Engineering Plastics(PBT)+Aluminum alloy 9. Connector Wire: 320mm+/-5mm 10. Motor: Carbon Brush Motor Electrical Specification: 1. Operat Voltage: 4.8V - 7.2V 2. No Load Speed: 0.24sec/60 degrees - 0.17sec/60 degrees 3. Runnig Current: 140mA - 200mA 4. Peak Stall Torque: 29.5kg.cm - 32kg.cm 5. Stall Current: 2600mA+/-10percent - 3400mA+/-10percent 6. Working Voltage Range: 4.8 - 7.2V Control Specification: 1. Command Signal: Pulse Width Modification 2. Amplifier Type: Digital Controller 3. Pulse Width Range: 500~2500usec 4. Neutral Position: 1500usec 5. Running Degree: 180 degrees +/-3 degrees (when 500~2500usec) 6. Dead Band Width: 5 usec 7. Rotating Direction: Counterclockwise (when 1000~2000usec) Package Information: Package Size: 12*8*5cm Package Weight: 406g Package List: 1*4200KV Brushless Motor 1* 80A Brushless ESC 1*30KG Servo
