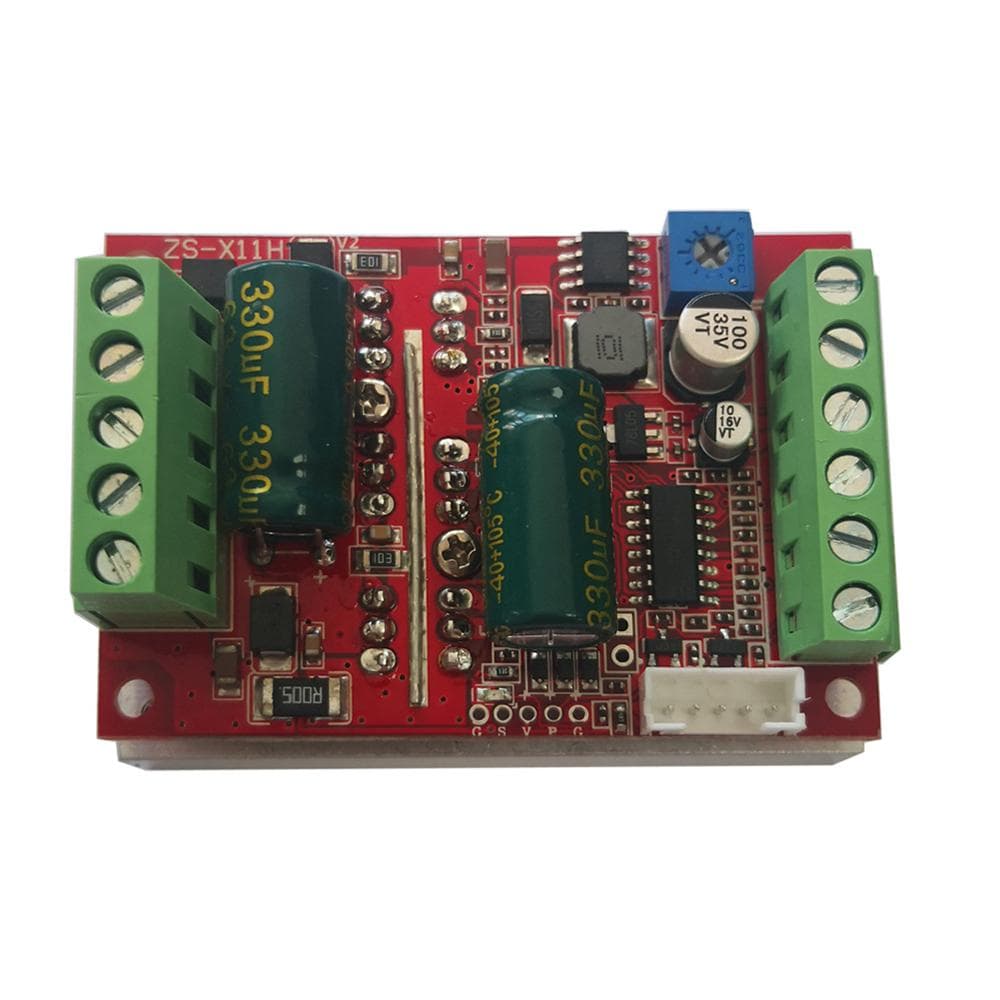

DC660V 400W BLDC Three Phase DirectCurrent Brushless Motor Controller High Power Hall Motor multicolour

About this item

• Newly upgraded BLDC with a wide voltage of 660V, high power of 400W, threephase brushless DirectCurrent with Hall controller, supporting PLC 05V AnalogControl, PWM control, amplitude of 2.55V, humanized design, interface using terminal standard heat sink integrated with speed regulation potentiometer on the board, which can be used when powered on by hand, saving time and effort. Features: 5V GND motherboard comes with 5V powersupply (current does not exceed 30MA). VCC GND motor main powersupply (external DirectCurrent powersupply). SCspeed pulse signal output. Positive and negative reversing control interface (also can be connected to the external switch). VRspeed control signal input (onboard with potentiometer speed control can also be connected to 05V AnalogSimulation PWM duty cycle to support dual signal input speed regulation). Ha Hb Hc +5V GND Hall signal Power input, generally with Hall s motor has five corresponding lines. Full patch process Stable performances with positivereverse function. Specifications: Working voltage: 660V Current: max. 20A, load. 16A Power: max. 400W Item size: 63 * 45 * 31mm 2.5 * 1.8 * 1.2in Item weight: 77g 2.7ounce Package size: 70 * 50 * 35mm 2.8 * 2.0 * 1.4in Package weight: 90g 3.2ounce Package List: 1 * Hall Motor Control Driver Board
