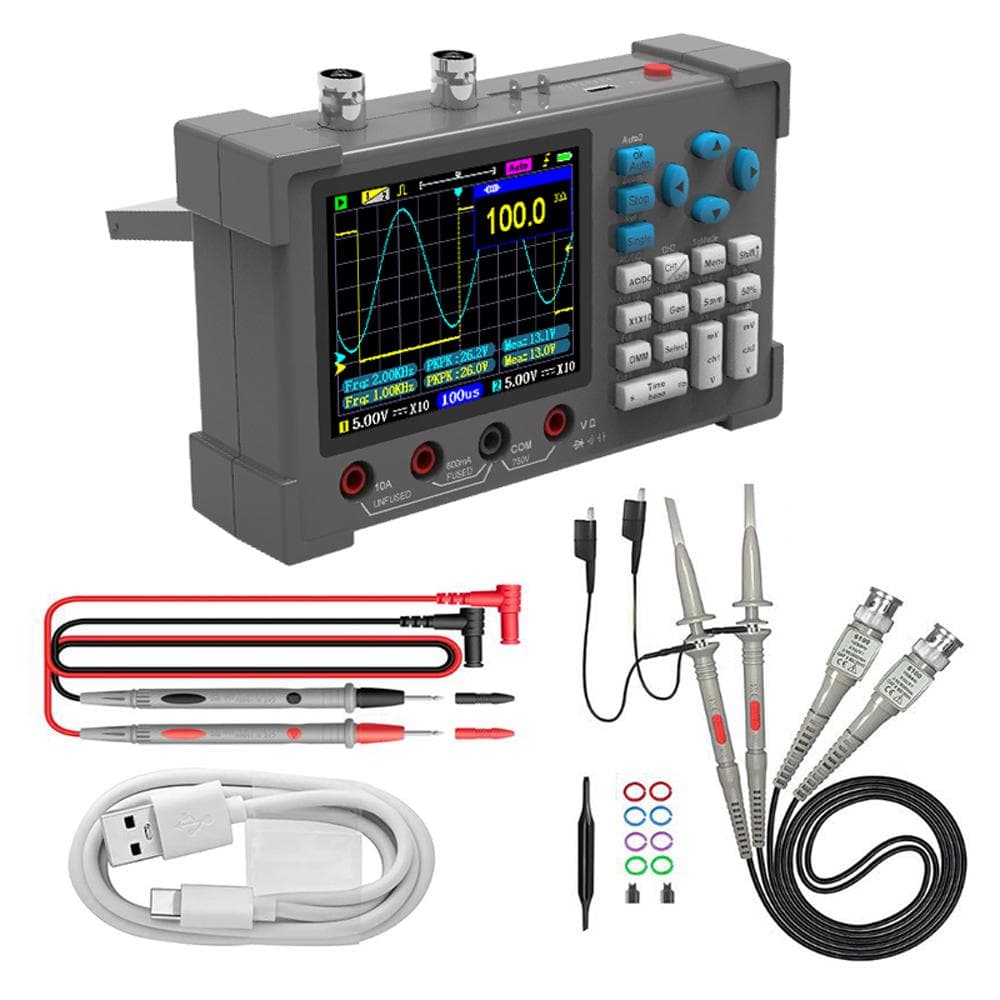

3in1 Oscilloscope Multimeter Signal Generator Machine 3.2inch IPS Display Oscope Meter Handheld multicolour

About this item

• 3in1 design, this product ingeniously integrates digital oscilloscope, multimeter, and signal source functions in one device. Equipped with a 3.2inch IPS display. With 120MHz bandwidth and 250MSas sampling rate. 3 trigger modes were designed, automatic, single, and normal. Multifunctional design, supports sensitivity and time base adjustment, automatic mode adjustment, 2channel waveform analysis, cursor measurement, reference waveforms, FFT spectrum, reference waveforms, waveform save and view. With DCACvoltage, DCACcurrent, resistance, capacitance, diode, and continuity test. Builtin waveform signal generator, it can output sinewave, squarewave, trianglewave, and so on.  Features: 3In1 Design with IPS Display: This product ingeniously integrates digital oscilloscope, multimeter, and signal generator functions into one device. 3.2inch cleardefinition IPS display, high sensitivity full view display, channel 2 waveforms can be set to green cyanpurple.  Signal Generator: Builtin waveform signal generator, it can output sinewave, squarewave, trianglewave, and so on. The voltage amplitude is 2.5V, the frequency is adjustable from 02Mhz, and the squarewave duty cycle is adjustable from 1percent to 99percent . Highprecise Multimeter: Builtin true RMS multimeter, that supports quick software calibration. With DCACvoltage, DCACcurrent, resistance, capacitance, diode, and continuity test. When measuring low voltage resistancecontinuity, the oscilloscope and multimeter functions can be used simultaneously (small window in the upper right corner). Digital Oscilloscope Function: Dual channel oscilloscope function, with 120MHz bandwidth and 250MSas sampling rate. With perfect trigger function (automatic, single, normal). Supports sensitivity and time base adjustment, automatic mode adjustment, 2channel waveform analysis, cursor measurement, reference waveforms, FFT spectrum, reference waveforms, waveform save and view. Sensitivity and Time Base: The oscilloscope will automatically detect the signal and adjusts the ranges. Support manual adjustment of the waveform vertically and horizontally. The vertical sensitivity indicates the voltage in the vertical direction, and it is adjusted by the mV and V buttons to adapt to different voltages. The time base represents the time in the horizontal direction. It is adjusted by the S and NS buttons to accommodate different frequencies.  In the stop mode, the user can move the waveform left and right. Two Automatic Modes Adjustment: Support onebutton automatic and fullyautomatic mode, no complicated operation, you can quickly detect and display the waveform. In fully automatic mode, no keystrokes are required, and continuous automation is performed.  High Bandwidth & Sampling Rate: The realtime sampling rate is 250MSas, dualchannel mode bandwidth is halved to 60Mhz.  Dual Channel: With dualchannel mode, which can measure and display two signal waveforms at the same time for waveform comparison and analysis. XY Mode for Cursor Measurement: The XY mode is an imaging formed by combining the waveforms of two channels and is commonly used to display the phase difference or frequency relationship between two signals. Supports X cursor and Y cursor measurement. The horizontal cursor can be used, for example, to measure the interval time between two pulses. The vertical cursor can be used to measure the voltage and the voltage difference at any two locations. FFT Spectrum: FFT (Fast Fourier Transform) is an algorithm that transforms waveforms in the time domain to the frequency domain, which can be used to analyze the frequency component in waveforms. Linear and logarithmic displays are supported. Note: FFT can only display spectrograms, frequency measurement is not supported. Reference Waveform: Support for latching reference waveforms, statically displaying the current waveform on the screen, while the dynamic waveforms are continue to update normally. And can be used for reference and comparison between multiple waveforms. Waveform SaveView: Save the screen waveform with one click, enter the picture browsing page, you can click the thumbnail for fullscreen observation and also can delete the unwanted waveform chart at will. Safer Design: Use an isolation transformer and isolation optocoupler chip to isolate the multimeter from the oscilloscope, so you don t have to worry about common ground wiring. (When measuring high voltage, the multimeter, and oscilloscope cannot be used at the same time). Wide Applications: It can easily handle measurement in various fields, widely used in the fields of testing and debugging of electronic circuits, troubleshooting and repairing of elect Specifications: Name: 3in1 Digital Oscilloscope Material: ABS Display: 3.2 inches IPS color screen Battery: 1 * builtin 2500mah rechargeable lithium battery (included) Charging: TYPEC 5V Language: ChineseEnglish Oscilloscope: Realtime sample rate: 200Msps Analog Bandwidth: 120MHz (CH1 only); 60MHz (CH1+CH2) Equivalent sampling: 500M Rise time: less than 3ns Storage: 128Kb Impedance: 1Μ Ohm Time Base: 5ns 10s Peakvoltage:  +40V (1x), +400V (10x) Trigger mode: autonormalsingle Trigger type: risefall  Display mode: YT XYroll Persistence: none1sinfinite Auto mode: oneKeyautofullyauto Sensitivity: X1:10mVdiv~10Vdiv; X10:100mVdiv~100Vdiv Measure items: 14 types DC Offset: +2percent XY mode: yes Screenshot: yes Frequency: +0.01percent Zoom mode: yes FFT: yes Generator waves: sinsquaretriangular Generator Vol: 2.5V+0.05 Generator freq: 1Hz2MHz Multimeter:  DCvoltage: 600mV6.00V60.0V600V750V, +(0.5percent +3) AC voltage: 600mV6.00V60.0V600V, +(1percent +3) DC current: 600mA10A, +(2percent +5) AC current: 600mA10A, +(3percent +5) current note: 600mA hole with 1A fuse, 10A hole without fuse Resistance: 600.0 Ohm +(1.5percent +3); 6.000k Ohm 60.00k Ohm 600.0k Ohm +(1percent +3); 6.000Μ Ohm , +(1.5percent +5); 60.00Μ Ohm , +(3percent +3) Capacitance: 60.00nF600.0nF6.000microfarad+(5percent +5), 60.00microfarad600.0microfarad+(10percent +5) Diode: 0.0V~3.3V, 3.3V higher display OL Continuity: Sound at 50 Ohm and below Item size: 145 * 86 * 32mm 5.71 * 3.39 * 1.26in Package size: 220 * 150 * 70mm 8.66 * 5.91 * 2.76in Package weight: 600g 1.32lb Packing List: 1 * 3in1 Digital Oscilloscope 1 * Pair of Test Pen 2 * Cable 1 * Charging Cable 1 * Set of Accessory
