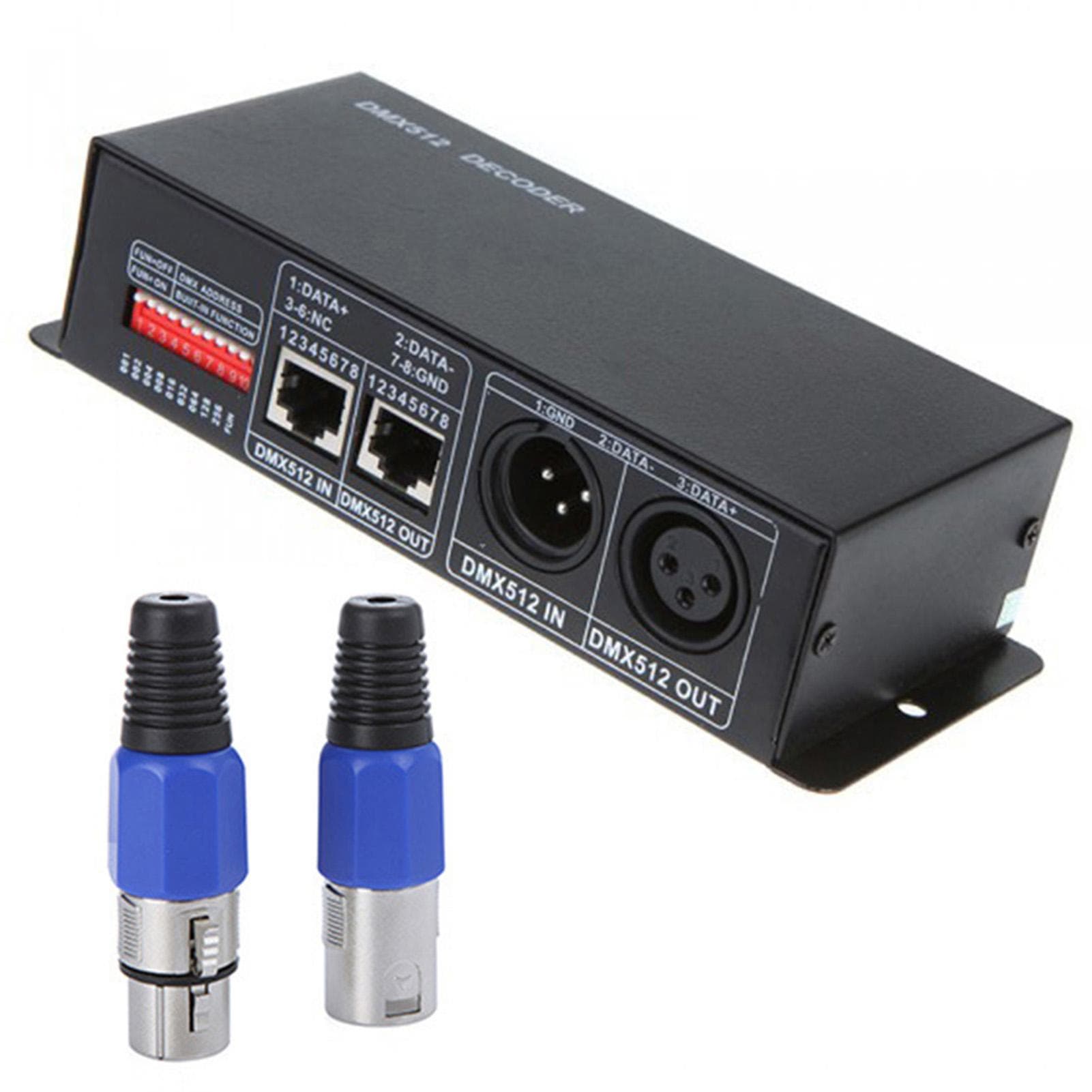

DC 12V-24V 3 Channel DMX Decoder LED Controller for RGB LED Strip Light black

About this item

• DC 12V-24V 3 Channel DMX Decoder LED Controller for RGB 5050 3528 LED Strip Light Features: Receives standard DMX-512 digital control signal and transformrd it into PWM signal to adjust LED. You could connect with DMX digital console to achieve RGB dimming functions. DMX address can be set through dip switch. Two signal interfaces: XLR-3 and RJ45. Up to 15 modes and 31 steps speeds for your options. Specifications: Input voltage: DC12~24V Max output current: 8A (each channel) Max output power: 288W~ 576W Output: 3CH Connection mode: Common Anode(+) Working temperature: -20-60 celsius Material: Metal Product size: 16.5 * 6.5 * 4cm/ 6.5 * 2.6 * 1.6in Product weight: 310g/ 10.9oz Package size: 18 * 7.7 * 5cm/ 7.1 * 3.0 * 2.0in Package weight: 400g/ 14.1oz 1. DMX signal can be received when FUN(10)=OFF. 2. Built-in function is activated when FUN(10)=ON, the following functions can be set using address codes DIP switch. Mode selection: Speed selection (at dynamic mode) : No. 5 6 7 8 9 Speed No. 5 6 7 8 9 Speed 0 0 0 0 0 0 0 Steps 8 0 0 0 1 0 8 Steps 1 1 0 0 0 0 1 Steps 9 1 0 0 1 0 9 Steps 2 0 1 0 0 0 2 Steps 10 0 1 0 1 0 10 Steps 3 1 1 0 0 0 3 Steps 11 1 1 0 1 0 11 Steps 4 0 0 1 0 0 4 Steps ..... ..... ..... ..... ..... ..... ..... 5 1 0 1 0 0 5 Steps 29 1 0 1 1 1 29 Steps 6 0 1 1 0 0 6 Steps 30 0 1 1 1 1 30 Steps 7 1 1 1 0 0 7 Steps 31 1 1 1 1 1 31 Steps Note: 1 = ON ; 0 = OFF Package List: 1 * DMX decoder
