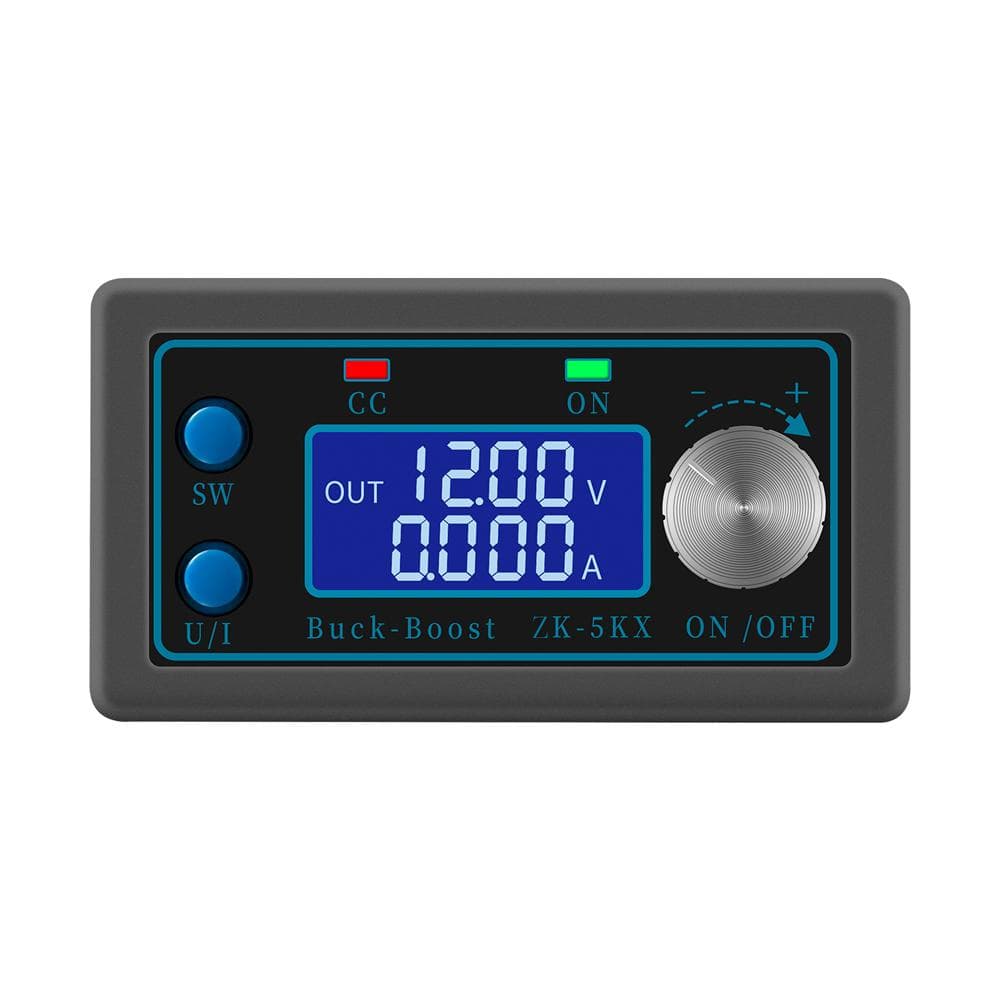

ZK-5KX Direct Current Voltage Auto-Lifting Module Constant Voltage and Constant Current Regulator black

About this item

• The module is an efficient powersupply regulation device with the function of constant voltage and constant current adjustable voltage regulator, with superior performance and complete functions. It can automatically adjust the voltage to meet the power requirements of different equipment. With anti-reverse connection, anti-backflow, under-voltage, over-voltage, and over-power-protecting functions, it effectively prevents damage to power-supplying equipment. Equipped with an LCD display, which can clearly show the working status and parameters of the powersupply. Features: LCD Display: The LCD display can accurately and quickly show the input and output voltage, temperature, output current, output power, output capacity, and output time. Intelligent Temperature Control Fan: With an intelligent temperature control fan, automatically starts and stops. When the temperature is higher than 50 degrees or the current is higher than 1A, the fan starts automatically. Efficient Heat Dissipation: Adopts thickened heatsink, and two-way ventilation, can provide a better heat dissipation effect. Numerical Control Adjustment: Precise and fast, can be boosted or bucked, output voltage 0.6-36V arbitrary adjustment, limit current 0-5A arbitrary adjustment. Multi-functional Design: The constant current value and the module default onoff states can be set. Support current zeroing calibration, output voltage calibration, and output current calibration. Protecting Mechanism: With input anti-reverse connection, output anti-backflow, input under-voltage, output over-voltage, output over-current, output over-power, over-temperature, timeout, and over-capacity protections. Low output ripple with n-type filtering. Threshold Adjustable: The protecting threshold is adjustable, and the module will automatically shut down the output when its working parameters exceed the protecting threshold. Specifications: Name: Voltage-stabilized Source Material: plastics Input voltage: 6.0-36V Output voltage: 0.6-36V Output current: maximum 5A Output power: 80W Voltage display resolution: 0.01V  Current display resolution: 0.001A Conversion efficiency: 88percent or so Operating frequency: 120KHZ Softstart: Yes (very high power with load module may fail when starting) Item size: 78 * 61 * 42mm 3.07 * 2.40 * 1.65in Item weight: 89g 3.14ounce Package size: 110 * 65 * 50mm 4.33 * 2.56 * 1.97in Package weight: 118g 4.16ounce Packing List: 1 * Voltage-stabilized Source
