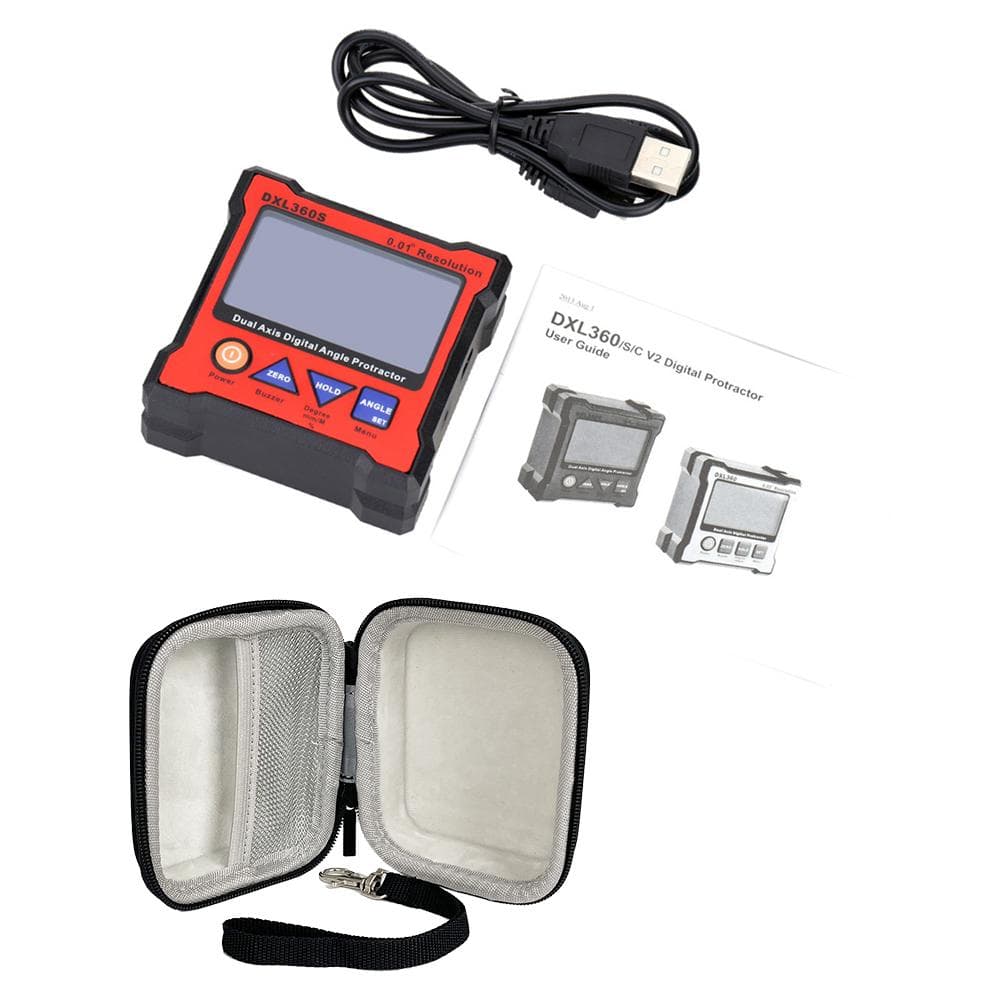

DXL360S Dual Axis Digital Angle Protractor with 5 Side Magnetic Base High-precision Dual-axis glossy PET + spray PEI

About this item

• Using this axis digital angle protractor, you can measure the angle between two faces, not only in earth gravity direction. Press Angle key at the first face, and then rotate slowly and must keep the rotation axis to another testing face, It will then show the angle once you not move the unit. Any angle measurement is using gyro technique.  Features: High accuracy +-0.05 degrees , high resolution 0.01 degrees . Li-lon battery rechargeable, durable. High resolution, professional measurement. Single and dual axis, convenient to measure the angle. Dual and single axis with user friendly LCD display angle. V shape case for easy to fit at the corner or pipe. With 5 Side Magnetic base, ble alarming at settable angle range, any angle measurement. The unit could be charged by connecting the USB cable to the unit and a computer s USB port. Specifications: Color: Red Accuracy: 0 to 20 degrees : +- (0.05 degrees )  20 to 70 degrees : +- (0.1 degrees )  70 to 90 degrees : +- (0.05 degrees )  Measuring Range Single Axis: 360 degrees , Dual Axis: +-40 degrees   Resolution: 0.01 degrees   Response Time: less than 0.4 second Zero Offset Drift Angle Per degrees C: 0.0058 degrees (typical)  Operating Temperature: 0 to 50 degrees C (32 to 122 Fahrenheit ) Storage Temperature: -10 to 60 degrees C (14 to 140 Fahrenheit ) User Interface: Mono-color LCD with backlight  Supply Power: Rechargeable Li-Polymer 3.7V  Charger Port: 5V 500mA Mini type-B USB port  Power Consumption: tandby: 10uA, Operation: 20mA  Standby Battery Life: 4000 hours  Operating Battery Life: 40 hours  Magnetic Base: Set on 4 corners  Magnetic Force: N48  Item Size: Approx 7 * 7 * 2.8cm 2.7 * 2.7 * 1.1in Item Weight: Approx 119.7g 4.2oz Package Size: Approx 12.5 * 10 * 5.5cm 4.92 * 3.94 * 2.16in Package Weight: Approx 270g 9.5oz Package List: 1 * Digital Angle Protractor 1 * USB Cable 1 * Storage Bag 1 * User Manual
