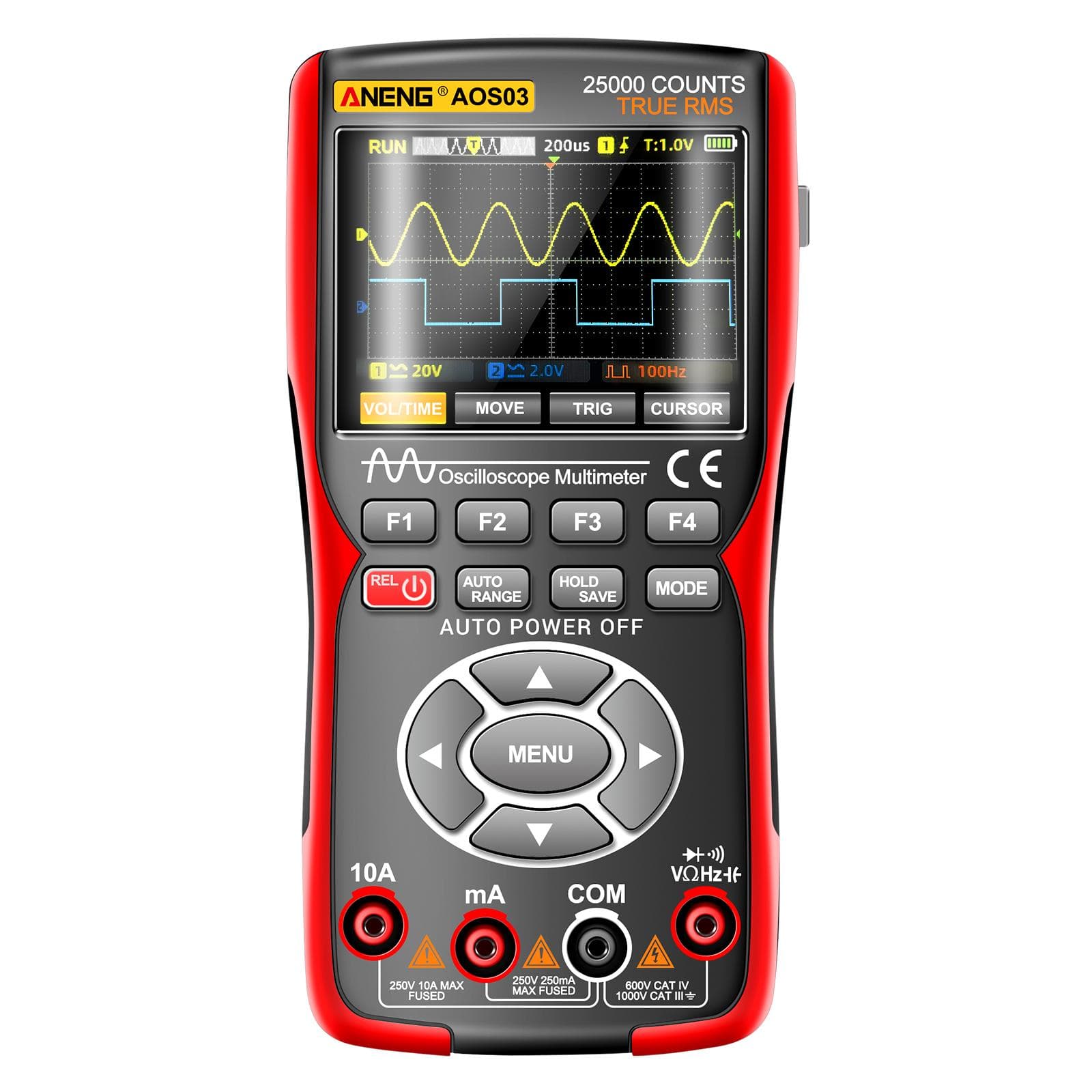

3-in-1 Handheld Oscilloscope Multimeter Signal Generator Dual Channel 50MHz Bandwidth 280MSas High red black
Kkmoon|SKU 25783vdfdswv
About this item
- This handheld oscilloscope adopts a dual injection molding process, featuring a beautiful appearance, compact size, convenient portability, and flexible operation. The functional buttons have a clear and intuitive menu interface. The screen utilizes a 3.5-inch IPS full-view color display, with a multimeter display of up to 25,000 counts. This product integrates the functions of an oscilloscope, signal generator, and multimeter into a three-in-one device. With superior performance and powerful functionality, it can be used in various measurement scenarios, meeting a wide range of user measurement needs. Features: 3-in-1The oscilloscope multimeter is a dual-channel handheld device with both oscilloscope and multimeter and signal generator functions, featuring a 3.5 IPS display, 50MHz bandwidth, 280MSas fast real-time sampling rate, 25,000 counts, 128Kb recording depth, and tri-mode switching between oscilloscope and multimeter and signal generator. Easy to use and improve work efficiency. Oscilloscope Mode2-channel handheld oscilloscope with 50MHz bandwidth, 280MSas real-time sampling rate, 128kb recording depth, automatic measurement function, autonormalsingle trigger function, vertical sensitivity 20mvdiv-10vdiv, support waveform image storage and export. Multimeter Mode25000 counts; AC Voltage: 0V-750.00 V; DC Voltage: 0V-1000.0 V; DCAC Current: 0A-10.000A; Resistance: 0 Ohm -250.00M Ohm ; Capacitance: 0nF-99.99mF Frequency: 0Hz-999.9 kHz; Diode measurement. Versatile measuring instrument ideal for professionals, factories, schools, hobbyists and families. Excellent designDouble injection molded ABS and TPE reinforced structure, excellent impact resistance and durability; large font design, easy to read data. Equipped with signal generator function, can output sine wave, square wave, sawtooth wave, full wave, half wave. Waveform Storage and ViewingThe oscilloscope automatically stores the current measurement waveform data in the form of run number and image in the memory; connect the oscilloscope to the computer by connecting the Type-C cable, click on the USB flash drive and open the image folder to access or download the waveform to a safer location in the computer for easy backup and analysis. Auto Power Off: You can choose the auto power off time. Specifications: Material: ABS + TPE Oscilloscope Information: Bandwidth: 50MHz, Dual channel Sampling: Sampling Method: Real-time sampling Sampling Rate: 200M280MSas Channel: 2, Dual channel Input: Input Coupling: DC,AC Input Impedance: 1M Ohm , @16pf Attenuation: X1, X10 Maximum Input Voltage: X1 range less than 150V, X10 range less than 300V (DC+AC peak) Level: Rate Range: 1.5Sas-280MSas Interpolation: (sinx)x Sweep Range: 10nsdiv-20sdiv Time Base: 20ppm Record Length: Up to 128Kbyte Vertical: Sensitivity: 20mVdiv-10Vdiv Offset Range: 4 grids (positive and negative) Analog Bandwidth: 50MHz Low-Frequency: More than 10Hz Rise Time: Less than 10ns DC Gain Accuracy: +-3percent Measure: Auto Measurement: Period Frequency Peak Maximum Minimum RMS Duty Cycle Number of Pulses Trigger: Trigger Modes: Auto, normal, single Trigger Edges: Rising edge, falling edge Operating Mode: Normal mode 200MSas, High-speed mode 280MSas Display Mode: YT XY Roll Afterglow Mode: Minimum, 500ms, 1S, 10S, Infinite Signal Generator Output: Sine wave square wave sawtooth wave half wave full wave Multimeter Information: AC Voltage (V): 0V-750.0V, 0.0001V-0.1V, +-(0.5percent +3) DC Voltage (V): 0V-1000.0V, 0.0001V-0.1V, +-(0.05percent +3) ACDC Voltage (mV): 25.000mV-250.00mV, 0.001mV-0.01mV, +-(0.05percent +3) ACDC Current (A): 0A-10.000A, 0.0001A-0.001A, +-(0.5percent +3) AC Current (μAmA): 25.000mA-250.00mA, 0.001mA-0.01mA, +-(0.8percent +3) DC Current (mA): 25.000mA-250.00mA, 0.001mA-0.01mA, +-(0.5percent +3) Resistance: 0 Ohm -250.0M Ohm , 0.01 Ohm -0.1M Ohm , +-(5.0percent +5) Capacitance: 0nF-99.99mF, 0.001nF-0.01mF, +-(5.0percent +20) Hz (only 100kHz bits can be detected in AC voltage gear): 0Hz-999.9kHz, 0.01Hz-0.1kHz, +-(0.1percent +2) DiodeBuzzer: Yes Data Retention: Yes Low Battery Indication: Yes Support Frame: Yes USB Charge: Yes True RMS: Yes Battery Model: 1 * 3.7V 18650 battery Data StorageViewing: USB connect to computer Sampling Rate: 3 timessecond Language Optional: ChineseEnglish Screen Display: VA reverse color screen Max Count: 25000 Counts Screen Brightness Can Be Adjusted: 30percent , 50percent , 80percent , 100percent Range: AutoManual Auto Power Off: Automatic shutdown can be set 1 minute10 minutes30 minutes60 minutes120 minutesshutdown (unlimited time) Item Size: 175 * 90.5 * 40.5mm 6.88 * 3.56 * 1.59in Item Weight: 380g 13.40oz Package Weight: 750g 26.45oz Package Size: 23.2 * 13 * 6.5cm 9.13 * 5.12 * 2.56in Package List: 1 * 3-in-1 Oscilloscope Multimeter 1 * Oscilloscope Pen 2 * Positioning Sleeve 8 * Tag Ring 1 * Probe Compensation Screwdriver 1 * Alligator Clip Ground Lead 1 * Storage Bag 1 * Extra Tip Pen 1 * USB Data Cable 2 * User Manual (English)
