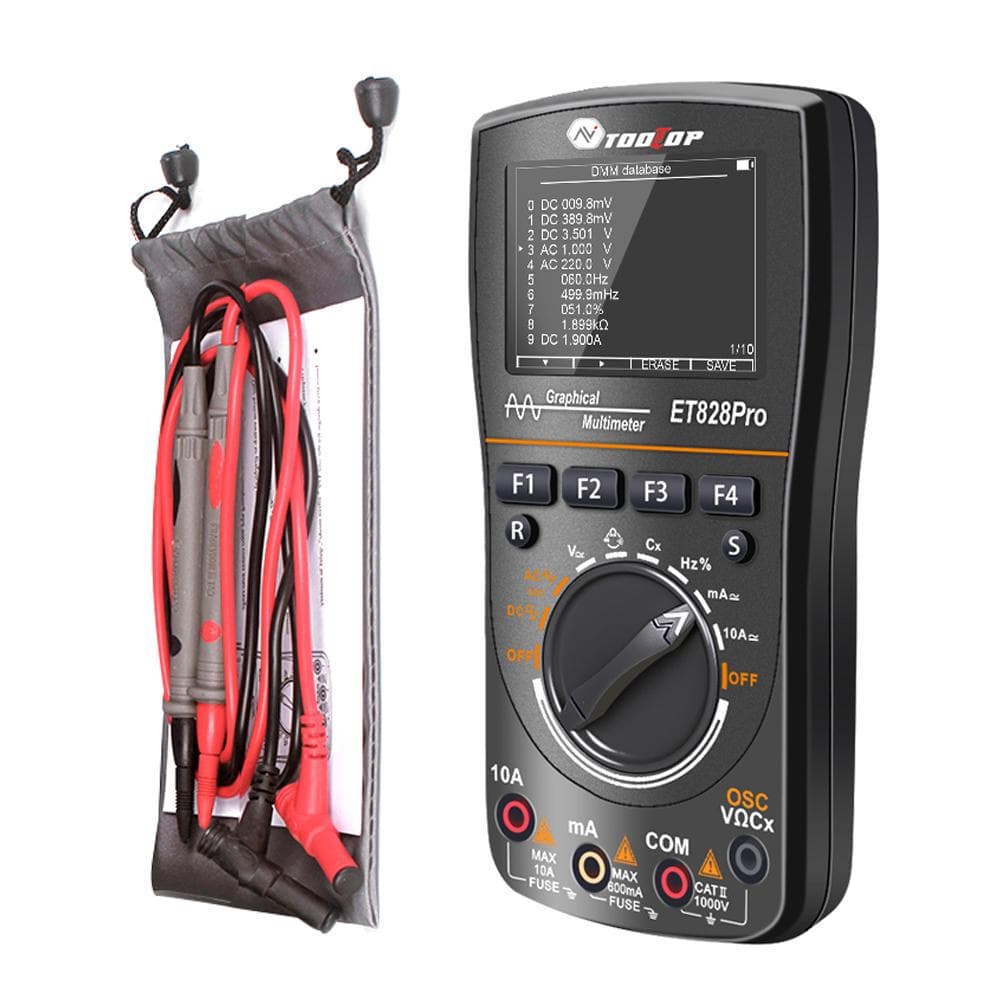

ET828PRO 2in1 Oscilloscope Multimeter 50Msps Sampling Rate 10Mhz Bandwidth Handheld Oscope Meter multicolour

About this item

• The product is an example of a combination of an oscilloscope and a autorange multimeter. Support oscilloscope and multimeter dual modes switching. It can simultaneously measure a variety of electrical parameters or capture waveforms, and display the electrical parameters or waveforms of electrical signals. Supports AC and DCvoltage, AC and DCcurrent, resistance, capacitance, diode, onoff test. Multifunctional design, with waveform adjustment, data storage, automatic shutdown, and with overload protections functions. It can easily handle measurement in various fields, widely used in the fields of testing and debugging of electronic circuits, troubleshooting and repairing of electronics, communications, computers, etc. Features: Concise Appearance & 2in1 Versatile Design: Compact and portable body design with simple and elegant appearance, easy to carry, does not occupy space, says goodbye to the traditional bulky and difficult to carry. It's a portable tool for on-site debugging. This product ingeniously integrates digital oscilloscope and multimeter functions into one device. Supports oscilloscope and multimeter dual-mode switching. Digital Color Display & High Reliability: With a 2.4 clear definition color display, with high resolution and large font for easy reading of data, making it applicable to various measurements in complex environments. Suitable for middle-aged and elderly electricians to use, easy to operate. Built-in 10A double fuse, with 750mAh overload protecting function, and 15 minutes no operation auto-sleep function. With panel calibration function, memory calibration factor without potentiometer adjustment for higher reliability. Digital Oscilloscope Function:  It can simultaneously measure multiple electrical parameters or waveforms, and display electrical parameters or electrical signal waveforms. The oscilloscope mode supports a high-speed sampling rate of up to 50Msps and an analogue bandwidth of 10 MHz. With a one-touching automatic waveform capture function, there are three waveform scanning modes such as automaticconventionalsingle. Waveform holds during measurement, and max 100 data sets and 10 waveforms can be saved. Waveform amplitude up to 200Vdiv, up to 1600Vpp measurement. Multimeter Function: Automaticmanual ranges switching, display of real-time data, and stored data on the same screen. Multiple measurement design, supporting diode detection, onoff test, AC and DCvoltage measurement, AC and DCcurrent (mA, 10A) measurement, frequency measurement, duty cycle measurement, resistance measurement, capacitance measurement, and with measurement data hold function. Support relative measurement mode and P-H mode, the relative value measurement can effectively eliminate the leads resistance, distributed capacitance, or interference signals and the P-H mode displays the measured maximum and minimum values. And also supports storage and readout of measurement data for more convenient to backup and analysis.  Wide Applications: With high accuracy, high speed, high sensitivity, and multiple measurement modes, and can easily handle measurement in various fields, widely used in the fields of testing and debugging of electronic circuits, troubleshooting and repairing electronics, communications, computers, etc. Specifications: Name: 2in1 Oscilloscope Multimeter Material: plastics Battery: 3 * 1.5V AA batteries (not included) Display: 2.4inch color display, 240*320, white backlight Input resistance: about 10M Ohm Automatic sleep: 15 minutes or disabled Static operating current: Multimeter approximately 75mA; Approx. 150mA for oscilloscope Shutdown current: less than 10μA Save capability: 100 records of digital multimeter data, 10 records of OSC waveforms data Usage environment: 0 celsius to +40 celsius ; less than 75percent RH Storage conditions: -10 celsius to +60 celsius ; less than 90percent RH Oscilloscope: Simulation bandwidth: 10MHz (500mVdiv to 20Vdiv) 20Vdiv above for reference only Maximum equivalent sampling rate: 50Msps Number of channels: 1 Input resistance: about 5M Ohm Vertical sensitivity ranges: 500mV-200Vdiv Vertical ranges accuracy: +-(5percent + 0.2div) Time base ranges: 200ns-10sdiv Time base accuracy: +-(0.01percent + 0.1div) Trigger mode: automatic single conventional mode Triggeredge selection: risingfalling edges Automatic settings: Automatic setting of time base and vertical ranges Automatic measurement function: Vp-p, Vavg, Vrms, Hz Multimeter: DC Voltage: 600mV6V60V600V1000V; 0.1mV1mV10mV100mV1V; +-1.2percent rdg + 5dgt AC Voltage: 600mV6V60V600V750V; 0.1mV1mV10mV100mV1V; +-1.2percent rdg + 5dgt(50Hz-60Hz), +-1.5percent rdg + 5dgt (100-400Hz) DC Current: 60mA 600mA, 10µA 100µA, +-1.2percent rdg + 5dgt;                      6A 10A, 1mA 10mA, +-1.5percent rdg + 5dgt AC Current: 60mA 600mA, 10µA 100µA, +-1.2percent rdg + 5dgt(50Hz-1kHz);                     6A 10A, 1mA 10mA, +-2percent rdg + 10dgt(50Hz-1kHz) Resistance: 600 Ohm 6k Ohm 60k Ohm 600k Ohm 6M Ohm 60M Ohm , 0.1Ω1 Ohm 10 Ohm 100 Ohm 1k Ohm 10k Ohm ; +- (1.0percent rdg + 5dgt), +- (3.0percent rdg + 5dgt) 60M Ohm Capacitance: 99.99nF999.9nF9.99microfarad99.99microfarad999.9microfarad, 10pF100pF1nF10nF100nF, +- (3.0percent rdg + 10dgt);                       9.999mF 99.99mF, 1microfarad 10uF, +- (5.0percent rdg + 15dgt) Frequency: 1.000Hz-20.00MHz, ranges more than 2Vp-p, +- (0.5percent rdg + 5dgt) (20M or more for reference only) Diodeonoff test: Open circuit voltage about 2.8V; judgment resistance: about 50 Ohm Fuse specification: 750mA250V,10A250V Observation area: 49.0 * 36.7mm 1.93 * 1.44in Item size: 83 * 160 * 32mm 3.27 * 6.30 * 1.26in Item weight: 180g 6.35ounce Package size: 190 * 140 * 45mm 7.48 * 5.51 * 1.77in Package weight: 390g 13.76ounce Packing List: 1 * 2in1 Oscilloscope Multimeter 1 * Pair of Test Leads 1 * Cloth Bag 1 * Instruction Manual
