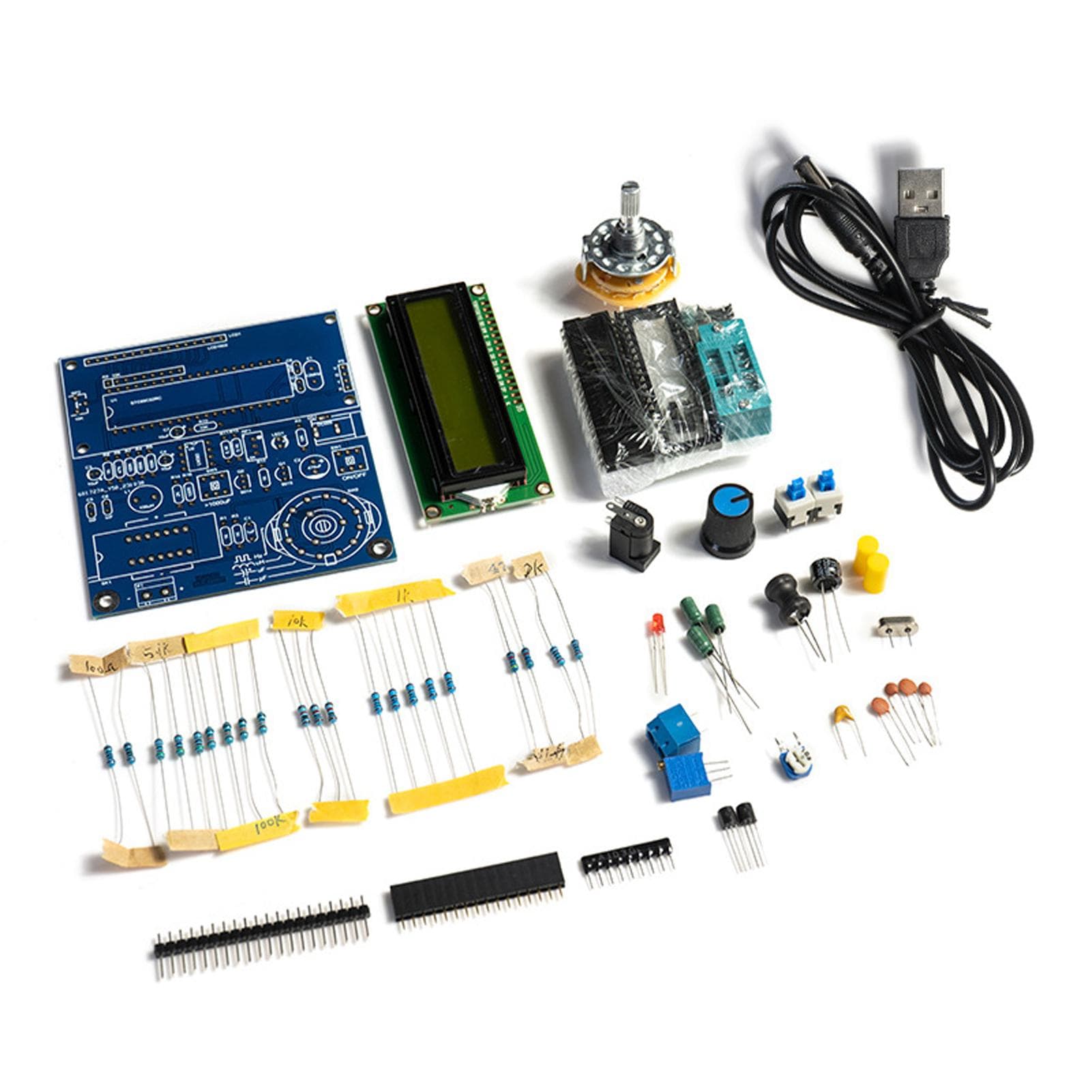

Capacitance Inductance Frequency Measurement Meter DIY Electronics Kit 51 Singlechip Tester Circuit DIY Electronics Kit multicolour

About this item

• This kit is based on 51 microcontroller design capacitance measurement, inductance measurement, and frequency measurement in one of the multi-function measuring instruments, which can measure a variety of non-polar capacitance, polarized electrolytic capacitance, inductance, and frequency. DIY soldering practice production of loose parts, learning to understand the use of microcontroller knowledge and frequency, capacitance, and inductance measurement principles. Suitable for DIY electronic enthusiasts and beginners. Features: Multi-functional Design: This product combines inductance measurement, frequency measurement, polarized capacitance measurement, and non-polarized capacitance measurement to meet a variety of measurement needs. LCD Display: Clear-definition LCD large screen display, digital symbols show clearly, easy to read, greatly improve the measurement efficiency. SW3 Self-locking Switch Function: According to the different types of capacitance measurement, improve the measurement accuracy. When measuring nonpolarized capacitance, Sw3 switch is used to adjust zeroing; when measuring polarized capacitance, Sw3 is used to choose the measurement ranges. DIY Soldering Set: DIY soldering practice of loose parts can not only exercise the hands-on ability, but also teach to understand the use of microcontroller knowledge and the principle of frequency, capacitance, and inductance measurement. Easy to Operate: Rotary gear switch, choose different functions, measurement is more convenient, improve the accuracy of measurement. Simple operation, suitable for electronic enthusiasts and beginners. Optional Housing: The beautiful and wear-resistant design of the transparent acrylic housing prevents the hand from contacting with the board and protects the safety of the user. Specifications: Name: Capacitance Inductance Meter Set Material: printed circuit board Type: DIY Electronics Kit, DIY Electronics Kit with Housing (optional) Power supplying voltage: 5V USB Non-polarized capacitance measurement ranges: 1pF-2200pF Polarized capacitance measurement ranges: 1uF-12000uF Inductance measurement ranges: 1uH-1H Frequency measurement ranges: 20Hz-400KHz Item size: Printed circuit board size: 91 * 80mm 3.59 * 3.15in With housing size: 106 * 91 * 28mm 4.17 * 3.59 * 1.10in Package size: 100 * 130 * 30mm 3.94 * 5.12 * 1.18in Package weight: 198g 6.98ounce Packing List (E25647-1): 1 * DIY Electronics Kit OR Packing List (E25647-2): 1 * DIY Electronics Kit 1 * Housing
