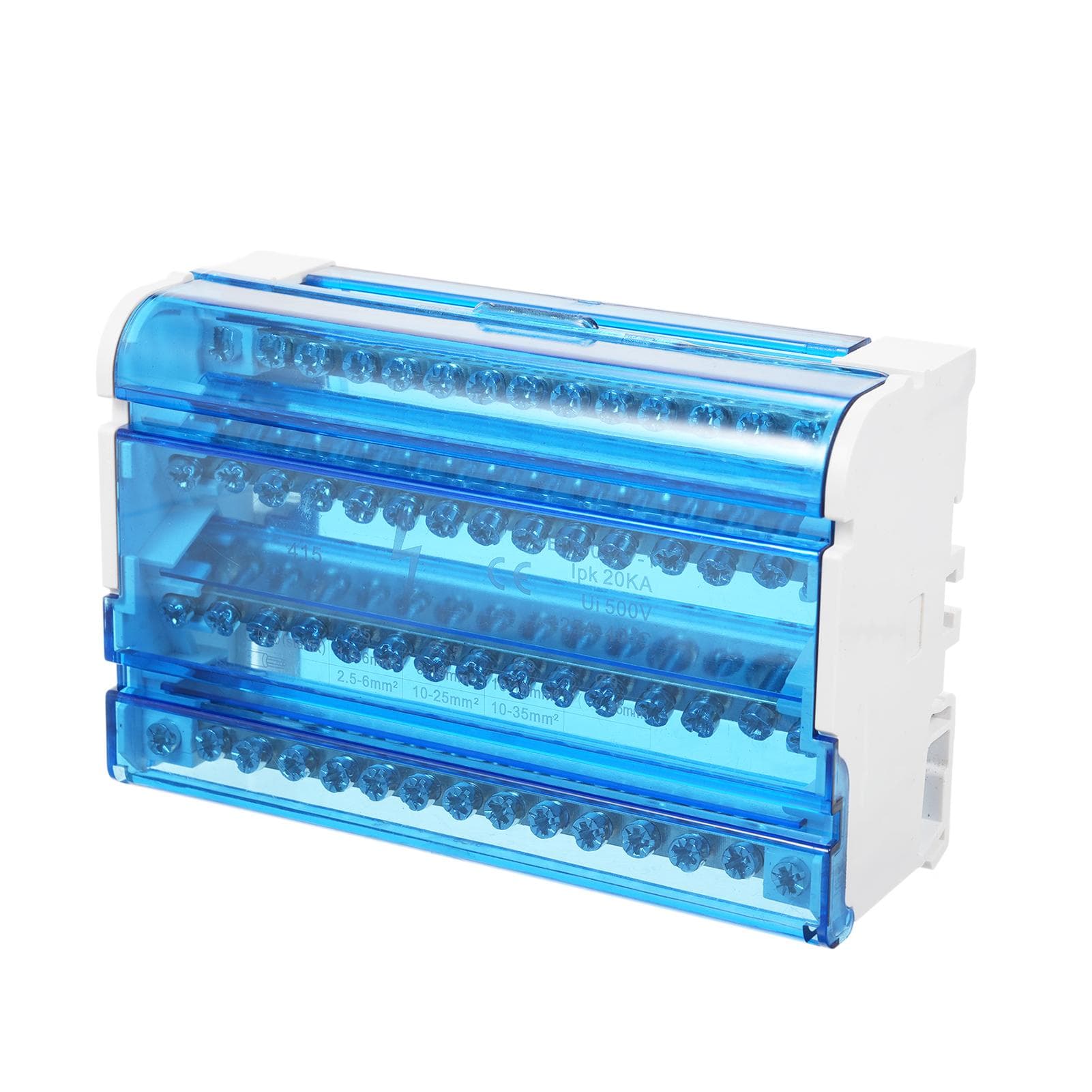

Terminal Block Junction Box 2-Level Single Phase Junction Case 207 Terminal Distribution Box Din JH8415 multicolour

About this item

• Features: With brass conductive and flame retardant housing, the maximum withstand current is 125A. Professional power design, with isolation barrier between the terminal blocks to prevent touching and causing short circuit. Small body with many splitting heads, which saves wiring space to the greatest extent. Adopt Din rail installation method, fast and convenient to install. Transparent dust cover design, dust-proof insulation, you can know the internal wiring state without opening the cover. Specifications: Model: JH8207, JH8211, JH8215, JH8407, JH8411, JH8415 (Optional) Shell Material: PA nylon Fire Rating: UL94V-2 flame retardant Screw Material: Iron plated with blue and white zinc Working Temperature: -30 celsius -110 celsius Rated Voltage: 500V Rated Current: 125A Hard Wire Diameter: 1.5~6mm²                                    6~16mm² Soft Wire Diameter: 2.5~6mm²                                  10~25mm² Item Size: 66 * 43 * 50mm 2.59 * 1.69 * 1.97in Item Weight: 104g 3.66oz Package Weight: 117g 4.13oz Package Size: 7 * 5 * 6cm 2.75 * 1.97 * 2.36in Package List: 1 * Terminal Distribution Box
