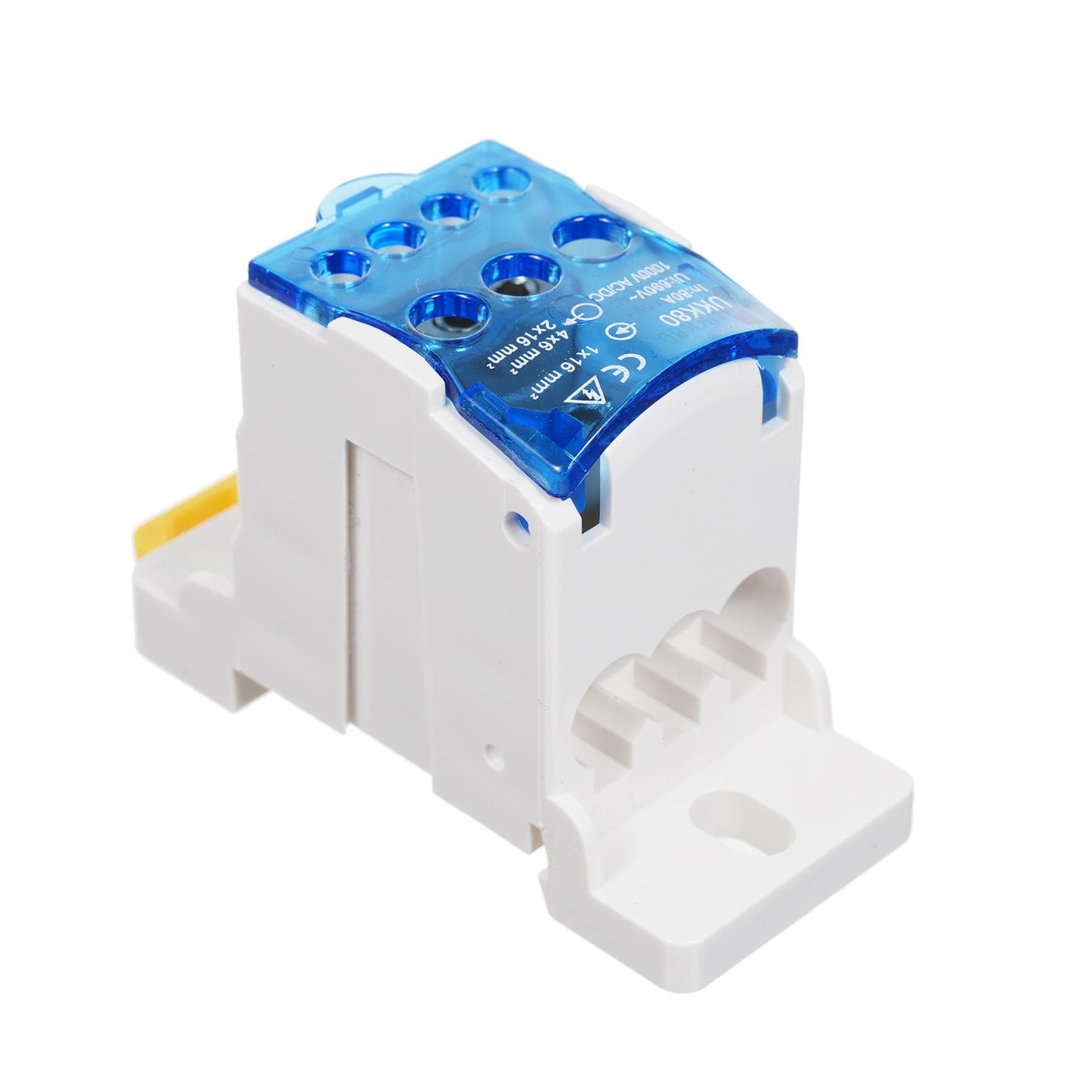

1 Pack 6 Positions Screw Terminal Strip Blocks with Cover Junction Box Branch Box Din Rail Terminal UKK80A multicolour

About this item

• UKK Series unipolar junction box, have 5 different current Specifications, from 80A to 500A. And they are widely used in distribution box devices. Its safety and space saving are the first choice for distribution box wiring. In addition, the design of the clamping feet could make the product easier to separate off the din rail. Features: Good Performance: Terminal block distribution box has flame-retardant shell so it has performance of high temperature and resistance, good insulation performance and long-lasting durability. DIN Rail Mount: The distribution box adopts standard 35mm DIN rail mounting to ensure stable structure and good electrical performance. Transparent Cover: The transparent cover can see if the cable is connected reliably. Easy to Install: The terminal block distribution box is easy and quick to install on the rail. Scope of Application: The junction box has standard terminal ports, widely used in distribution cabinet, distribution box, various high voltage cabinets, etc.  Specifications: Model: UKK80A UKK125A UKK160A UKK250A UKK400A UKK500A (Optional) Material: PA Nylon Flame Retardant Grade: UL94V0 Conductor Material: Brass Screw Material: Iron nickel-plated, hexagonal screws Rated Current: 80A Rated Voltage: 690V IEC 1 Way In: 1 x 16mm² 6 Way Out: 4 x 6mm²                    2 x 16mm² Product Outlet: 1 in 6 out Mounting: 35mm rail mount or screw fixing Item Size: 72 * 45 * 32mm 2.83 * 1.77 * 1.26in Item Weight: 69g 2.43oz Package Weight: 76g 2.68oz Package Size: 8 * 5 * 3.5cm 3.15 * 1.97 * 1.38in Package List: 1 * Terminal Distribution Box
