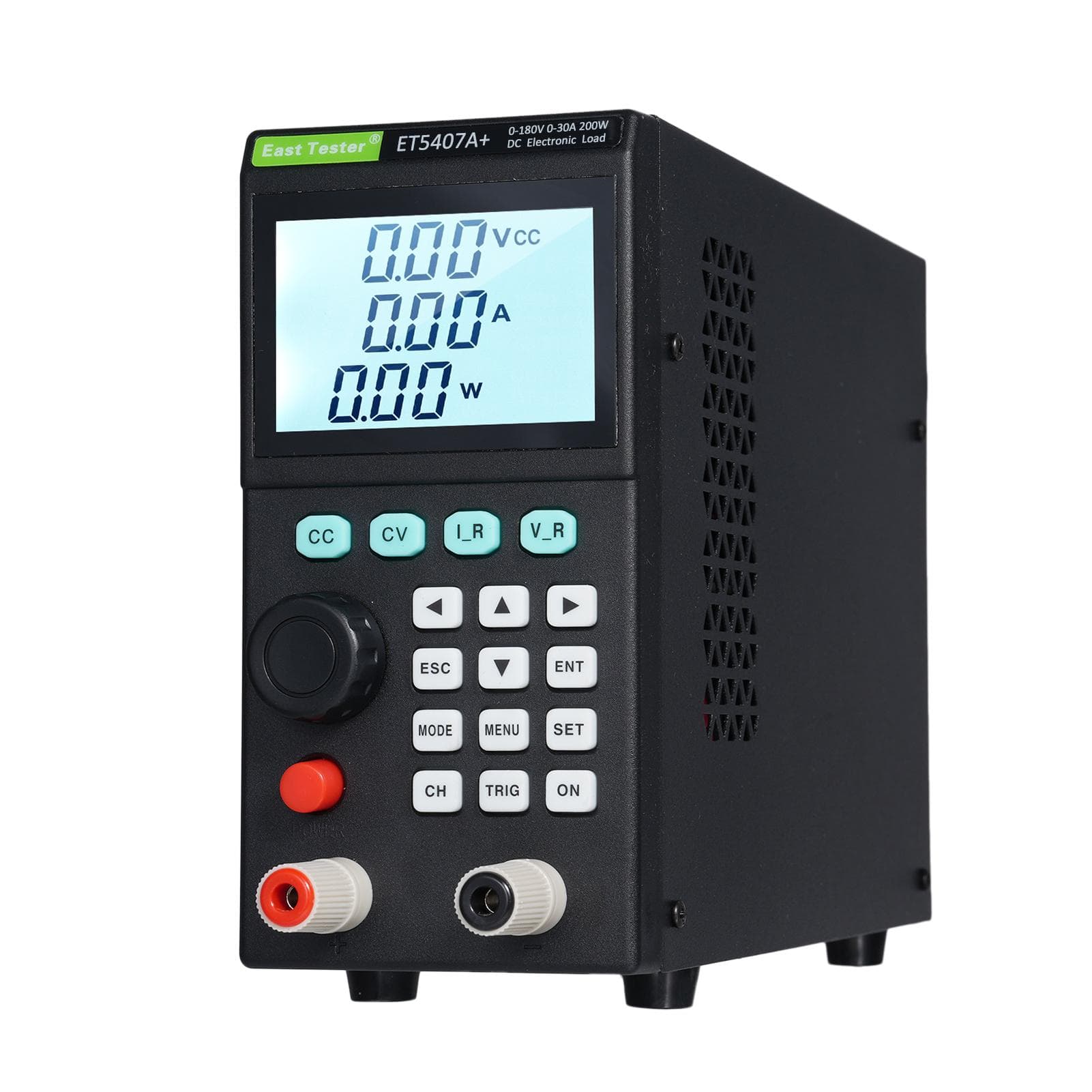

East Tester ET5407A+ 200W 0-180V 0-30A Programmable DC Electronic Load Tester 1mV1mA Mini Battery EU Plug black

About this item

• ET5407A+ programmable DC electronic load provides 1mV10mV, 1mA10mA high resolution and precision with superior performance. It is equipped with 9 common modes and complete test functions, which can be widely used in charger, switching power supply, linear power supply, battery and other production line testing. Features: Adopting LCD segment code screen with adjustable backlight. The operation process is simple and convenient, and with visual interface display system, it is easy to get started. Key lock function to prevent misoperation. It provides CC, CV, CR, CP basic measurement modes. It provides professional battery test. The Tran test mode can test the dynamic output performance of the power supply. The list test mode can simulate a variety of loading status changes. The short circuit test can be used to simulate load short circuit. Support external trigger input. Built-in buzzer alarm. Maintain data storage in case of power failure. Remote operation via USB, RS-232 (optional) or 485 (optional) interfaces. It provides overcurrent, overvoltage, overpower, over temperature protection. The overvoltage and overcurrent parameters can be set flexibly, so as to effectively protect the load. It has intelligent fan speed control function, which can effectively reduce the fan noise when it is working. With input polarity reverse prompt. Specifications: Plug: EU US UK (Optional) Model: ET5407A+ Material: Plastic + galvanized sheet Rated Input: Power: 200W Input Voltage: 0-180V Input Current: 0-30A CV Mode: Range: 0.1~19.999V, 0.1~180.00V Resolution: 1mV, 10mV Accuracy: +-(0.05percent +0.02percent FS) CC Mode: Range: 0~3.000A, 0~30.00A Resolution: 1mA, 10mA Accuracy: +-(0.05percent +0.05percent FS) CR Mode: Range: 0.05 Ohm ~4.50k Ohm Resolution: 10m Ohm , 1 Ohm Accuracy: +-(0.1percent +0.5percent FS) CP Mode: Range: 0~200W Resolution: 10mW Accuracy: +-(0.1percent +0.5percent FS) Tran Test:  Mode: CC, CV T1 & T2: 0.05s~99.999s Battery Test: Discharge Mode: CC, CR Maximum Discharge Capacity: 9999Ah Resolution: 1mA, 10mA, 10m Ohm , 1 Ohm Range of Measurement: Voltage Read-Back Value:  Range: 0~19.999V, 0~180.00V Resolution: 1mV, 10mV Accuracy: +-(0.05percent +0.1percent FS) Current Read-Back Value:  Range: 0~3.000A, 0~30.00A Resolution: 1mA, 10mA Accuracy: +-(0.05percent +0.1percent FS) Power Read-Back Value: Range: 200W Resolution: 10mW Accuracy: +-(0.1percent +0.5percent FS) Scope of Protection: Over Voltage Protection (OV): more than 21V or more than 185V over voltage protection Over Current Protection (OC): more than 3.1A or more than 31A over current protection Over Power Protection (OP): 210W Over Temperature Protection: 85 celsius Item Size: 240 * 75 * 155mm 9.45 * 2.95 * 6.10in Item Weight: 1234g 2.72lb Package Weight: 1590g 3.51lb Package Size: 30 * 14 * 20.5cm 11.81 * 5.51 * 8.07in Package List: 1 * DC Electronic Load 1 * Power Cord 1 * User Manual (English)
