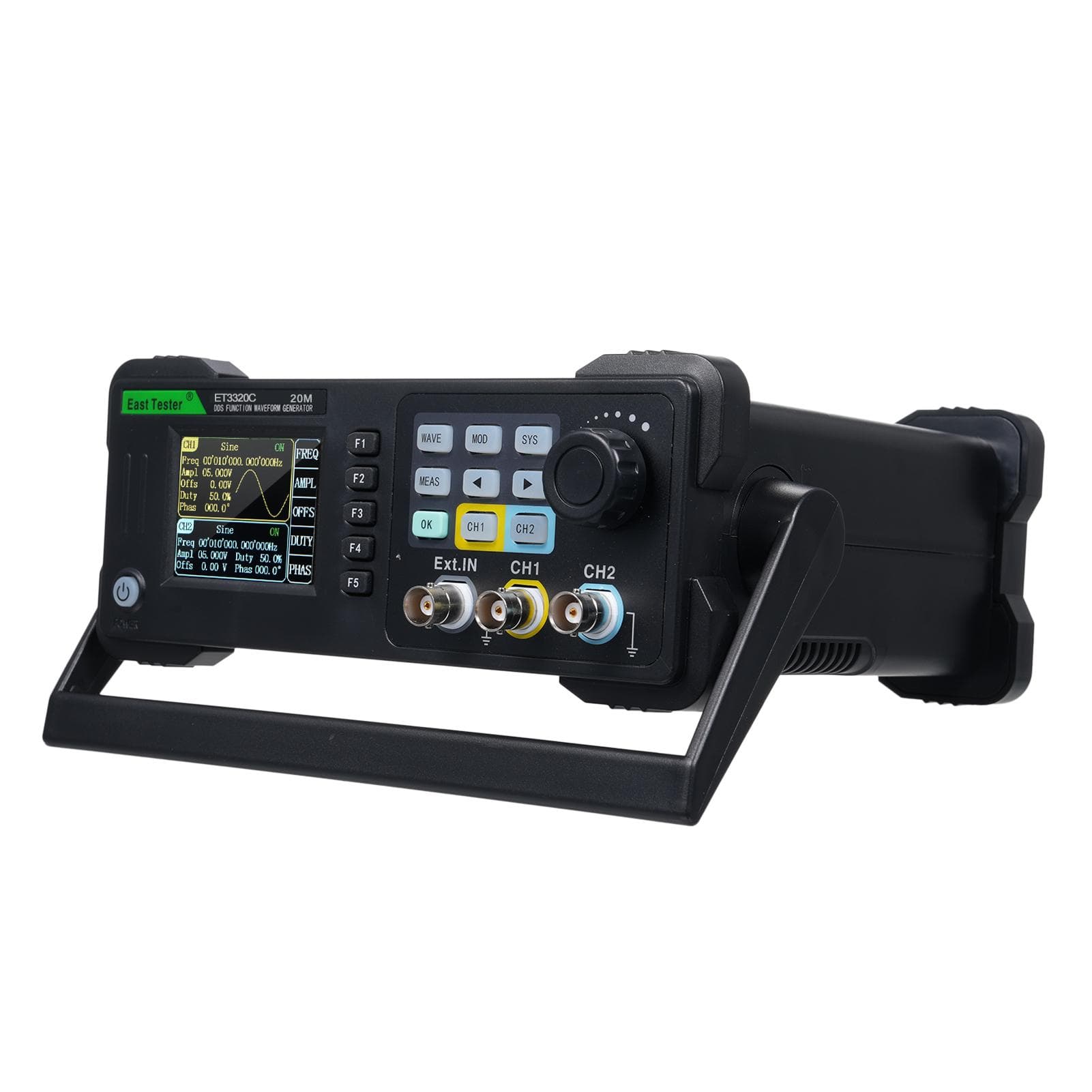

East Tester Two-Channel Function Arbitrary Waveform Generator 20MHz Frequency Meter ET3320C Pulse UK Plug black

About this item

• ET33C series two-channel functionarbitrary wave generator adopts direct digital frequency synthesis technology, which can output signals with high accuracy, stability and low distortion. Features: 1. 2.4-inch 320X240 TFT LCD with clear graphic interface. 2. Chinese English menu available. 3. Both channels are independent of each other and have phase synchronization function. 4. Sampling rate: 200MSaS, vertical resolution: 13 bit and storage depth: 8k. 5. 5 basic waveforms and 32 arbitrary waveforms in-built. 6. waveform storage; Support internal storage of 50 groups of user-defined edited waveforms; 7. Pulse wave output set in edge time. 8. Internal AM, FM, PM modulation function (External AM, FM, PM modulation is optional). 9. Internalexternal ASK, FSK, PSK modulation function; 10. Dual channel output, maximum output frequency 60M; 11. Output of linearlogarithmic sweep and burst (pulse train) waveforms; 12. With 100MHz high precision frequency meter and 32 bit counter; 13. Standard USB Device interface; Optional external analog modulation interface; 14. Equipped with multifunctional arbitrary waveform editing software. Specifications: Plug: EU US UK (Optional) Model: ET3320C Material: ABS Power Voltage: AC 110~240V, 50~60Hz Display: 2.4 inch TFT LED Frequency Characteristics: Sine: 1One millionth Hz~20MHz Square: 1One millionth Hz~15MHz Triangle: 1One millionth Hz~15MHz Pulse: 100One millionth Hz~6MHz Arbitrary: 1One millionth Hz~6MHz Frequency Resolution: 1One millionth Hz Frequency Accuracy: +-20ppm Frequency Stability: +-1ppm 3 hour Waveform  Characteristics: Waveform Types: Sine, square, triangle, pulse, noise and arbitrary waves (including DC). There are 32 kinds of arbitrary waves and 50 kinds of user-defined waves. Waveform Length: 8192 points Waveform Sampling Rate: 200MSas Waveform Vertical Resolution: 13bits Sine Wave Characteristics: Sine Wave: Harmonic Suppression Degree: more than 45dBc ( less than 1MHz); more than 40dBc (1MHz~20MHz)                   Total Harmonic Distortion: less than 0.8percent (20Hz~20kHz, 0dBM) Square Wave Signal Characteristics: Square Wave: RiseFall: less than 20ns                        Overshoot: less than 5percent Duty Cycle: freq less than 100kHz: 1percent ~99percent                    100kHz less than freq less than 5MHz: 20percent ~80percent                    5MHz less than freq: 40percent ~60percent (0.1percent resolution) Pulse Wave Characteristics: Pulse Wave: Pulse Width: Min 20ns; 1ns resolution                     Edge jump time: Min 20ns                     Overshoot: less than 5percent                     Jitter: 6ns+0.1percent Period Sawtooth Wave Characteristics: Sawtooth Wave: Linearity Degree: more than 98percent (0.01Hz~10kHz)                            Symmetry: 0.0~100.0percent (resolution 0.1percent ) Item Size: 195 * 185 * 80mm 7.67 * 7.28 * 3.15in Item Weight: 598g 1.32lb Package Weight: 1152g 2.54lb Package Size: 27.5 * 23.5 * 12cm 10.82 * 9.25 * 4.72in Package List: 1 * Signal Generator 1 * Power Cable 2 * BNC Coaxial Cables 1 * USB Data Cable 1 * Straight Signal Cable 1 * User Manual (English)
