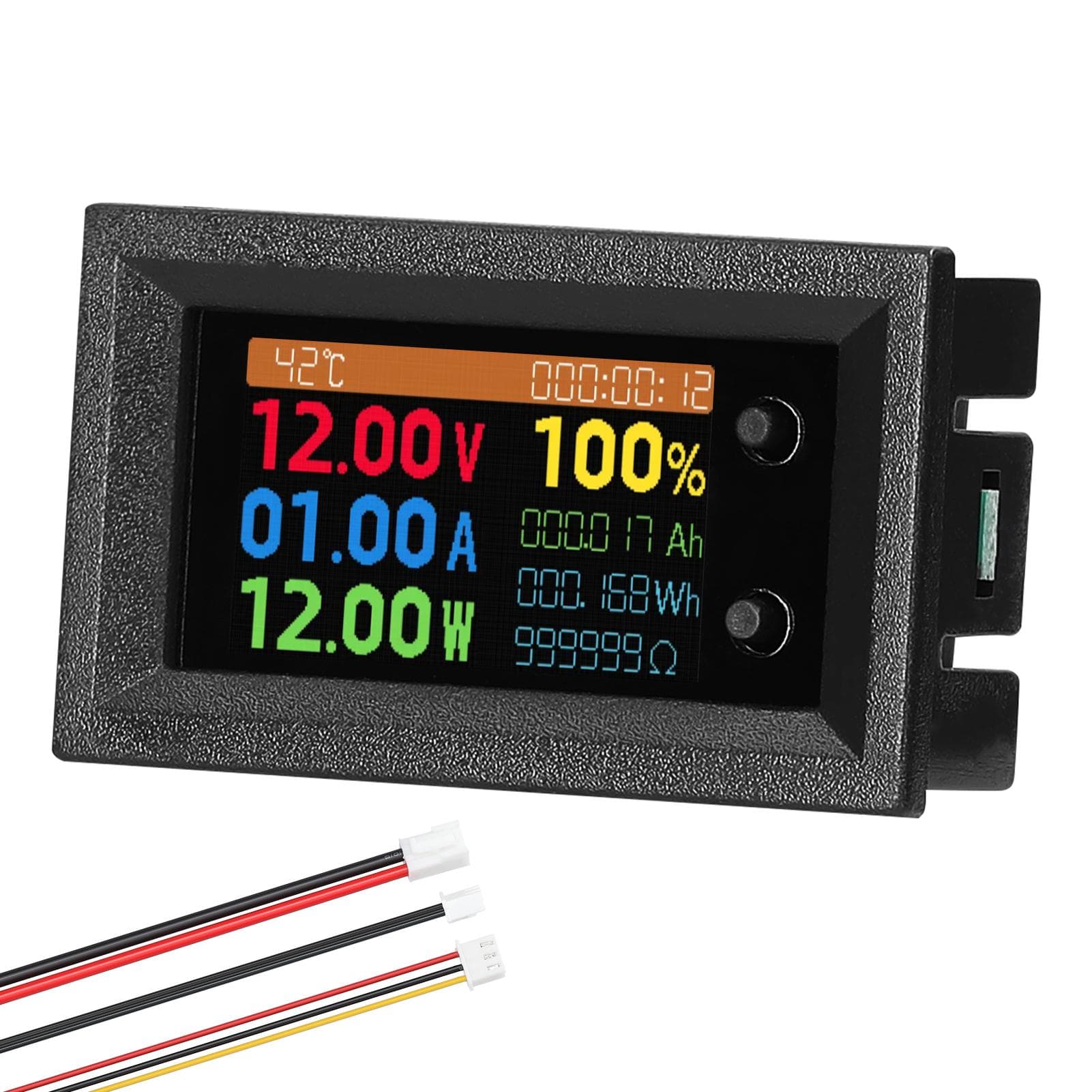

9in1 Multifunction Tester 1.14-inch IPS Color Display Measuring Instrument with Voltage Current 50A multicolour

About this item

• The 9in1 multifunction tester combines voltage, current, power, impedance, capacity, energy, temperature, runtime, and battery level measurement in a single compact unit, providing a comprehensive diagnostic tool for various electrical systems and components. It supports cumulative data clearing, no-load forced zeroing, display voltage fine-tuning, display current fine-tuning, low battery voltage setting, full battery voltage setting, restoring factory settings, etc., which is easy and convenient to operate. It simplifies routine data management tasks and troubleshooting processes, ensures efficient system maintenance, and ensures reliable measurement performance over time. Features: 【9in1 Multifunctional Measurement】: The 9in1 multifunction tester combines voltage, current, power, impedance, capacity, energy, temperature, runtime, and battery level measurement in a single compact unit, providing a comprehensive diagnostic tool for various electrical systems and components. 【Precise Data Calibration & Customization】: Offering display fine-tuning for voltage and current, as well as programmable full and low battery voltage thresholds, the tester enables users to tailor measurements to their specific system requirements, ensuring optimal accuracy and relevance of displayed data. 【Efficient Data Management & Maintenance】: Supporting accumulated data reset, zeroing with no load, and factory settings restoration, the tester simplifies routine data management tasks and troubleshooting processes, ensures efficient system maintenance, and ensures reliable measurement performance over time. 【Strong Compatibility】: It is compatible with the installation aperture and terminal configuration of low-voltage dual display voltage and current meters of models like M430, M520, M3430, and VC288, the tester enables direct replacement and effortless upgrades after choosing the corresponding ranges. 【Energy-Efficient & Lightweight Design】: The delivery is inclusive of wires and NTC sensor, the DC430 combines energy efficiency with a compact, lightweight form factor, making it perfect for space-constrained installations and portable applications. Note: The 10A version is on board with low-temperature drift alloy resistance shunt, can be directly connected. The 100A version needs to be connected in parallel with 50A 75mV shunt for normal use. Without the shunt, the current cannot be measured, the shunt needs to be prepared by oneself. The 100A version needs to be connected in parallel with a 100A 75mV shunt for normal use. Without the shunt, the current cannot be measured, the shunt needs to be prepared by oneself. Specifications: Name: 9in1 Multifunction Tester Material: plastics Type: 10A Version, 50A Version, 100A Version (optional) Working voltage: 4-30VDC Voltage measurement ranges: 0-100VDC, Error ± 1.00V, 0.1V Jump Current measurement ranges: 10A Version: 0.00A-10.00A, Error ± 0.1A, 0.03A Jump 50A Version: 0.00A-50.00A, Error ± 0.5A, 0.03A Jump 100A Version: 0.00A-100.0A, Error ± 1A, 0.03A Jump Power measurement ranges: 10A Version: 00.00-1000W 50A Version: 00.00-5000W 100A Version: 00.00-9999W Impedance display ranges: 0-99999 Ω (non internal resistance) Capacity measurement ranges: 0-999.999Ah Energy metering ranges: 0-999.999Wh Temperature sensor: cylindrical waterproof probe NTC 10K 3950 1% sensor with a total length of approximately 1 meter Temperature measurement ranges: -40 ℃ to 120℃ (external temperature measured by NTC sensor) Time measurement ranges: 0-999:59:59 (hour: minute: second) Working energy consumption: 20mA (measured at DC12V) Accumulated data reset: supported Empty forced reset: supported Voltage display fine tuning: supported Current display fine adjustment: supported Percentage battery display: Based on voltage reference, the percentage battery (full and low battery voltages need to be manually set) Installation hole: 45 * 26mm / 1.77 * 1.02in Item size: 47.59 * 28.67 * 25.33mm / 1.87 * 1.13 * 1.00in Item weight: 30g / 1.06ounce Package size: 120 * 75 * 30mm / 4.72 * 2.95 * 1.18in Package weight: 31g / 1.09ounce Packing List: 1 * 9in1 Multifunction Tester 2 * Cable
