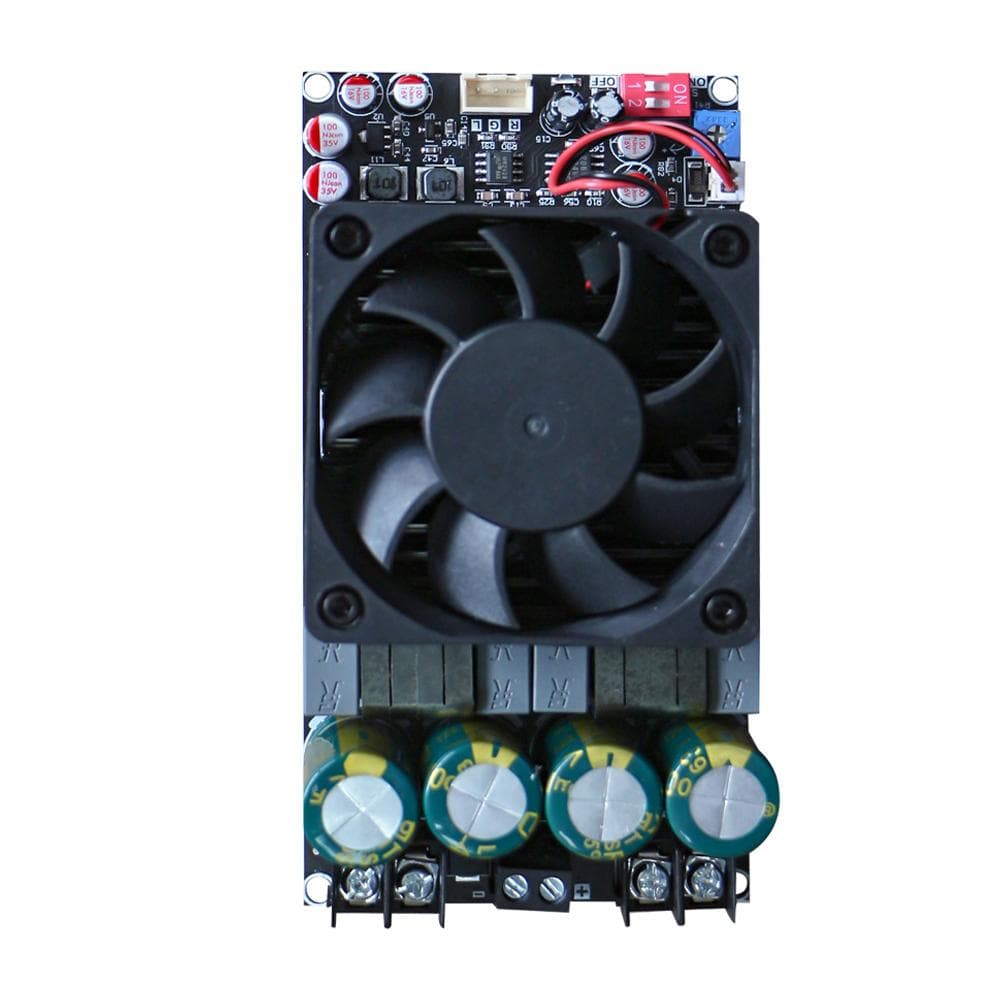

TPA3255 Amplifier Board 600W Single 300W Dual Sound Channel Modes Adjustable Multiple Protections multicolour

About this item

• The amplifier board Features large power output capabilities, intelligent thermal dissipation and multiple protections, adopts premium elements for superior sound, compatible with 1850VDC voltage, and userfriendly design, making it an appropriate choice for both professional and enthusiastlevel audio applications. Designed to drive powerful audio systems, this amplifier board delivers a maximum of 600W in bridged mode and 300W per channel in stereo mode (dual channels). The bridging feature simplifies configuration for highdemand applications. Features: HighPower Output & Flexible Bridging: Designed to drive powerful audio systems, this amplifier board delivers a maximum of 600W in bridged mode and 300W per channel in stereo mode (dual channels). The intuitive bridging feature simplifies configuration for applications requiring substantial power output. Heat Dissipation & Intelligent Protections: Equipped with a temperaturecontrolled fan and an oversized heatsink, the board ensures optimal thermal regulation, preventing overheating during intense usage. Integrated intelligent MCU popsound function and supports undervoltage, overheat, overcurrent, and short circuits protective functions, ensuring reliable operation. Premium Component for Superior Sound Quality: Utilizing highend elements, such as 3pcs JRC2068 operational amplifiers, solid electrolytic capacitors, and feverlevel electrolytic capacitors, the board provides a rich, clear sound with minimal distortion. The custom digital amplifier inductors are designed for low magnetic loss and small parasitic capacitance, enhancing audio fidelity. Versatile Power Compatibility & Adjustable Gain: Compatible with 1850VDC voltage, the board can accommodate various powersupply configurations, making it adaptable for different setups. The gain can be finely tuned between 2636dB via a potentiometer, allowing users to adjust the output level to meet different requirements. UserFriendly Design & Robust Connectivity: The board Features a simple yet comprehensive control panel, including ten levels of volumes adjustable function, a power bridging switch, and a 2.54mm?pinspacing 3pin audio input connector. Its compact size and lightweight design make it easy to integrate into existing audio systems, while the windowed printed circuit board and back panel improve heat dissipation and aesthetics. Specifications: Name: Amplifier Board Material: printed circuit board Adaptable powersupply: 1850VDC, limit 53V. recommended to use direct current powersupply with voltage 3648V and current 10A or above. The higher the voltage, the higher the output power. Applicable speakers: 38 ohms in BTL dualchannel mode, 50300W; 28 ohms in PBTL mono mode, 100600W Cooling mode: temperaturecontrolled automatic aircooling or manually selecting the fan to keep turning Gain selection: potentiometer 10gear adjustment, 26dB36dB Bridging mode: power off first, 1 dip switch to ON position, output R+L+ shorted parallel output, RL shorted parallel output Maximum power: BTL mode, 2*300W@50V 4 Ohm , 160W@50V 8 Ohm ; PBTL mode, 600W@50V 20, 300W@50V 40,160W@50V 8 Ohm Item size: 125 * 65 * 38mm 4.92 * 2.56 * 1.50in Item weight: 254g 8.96ounce Package size: 155 * 95 * 50mm 6.10 * 3.94 * 1.97in Package weight: 289g 10.19ounce Packing List: 1 * Amplifier Board
