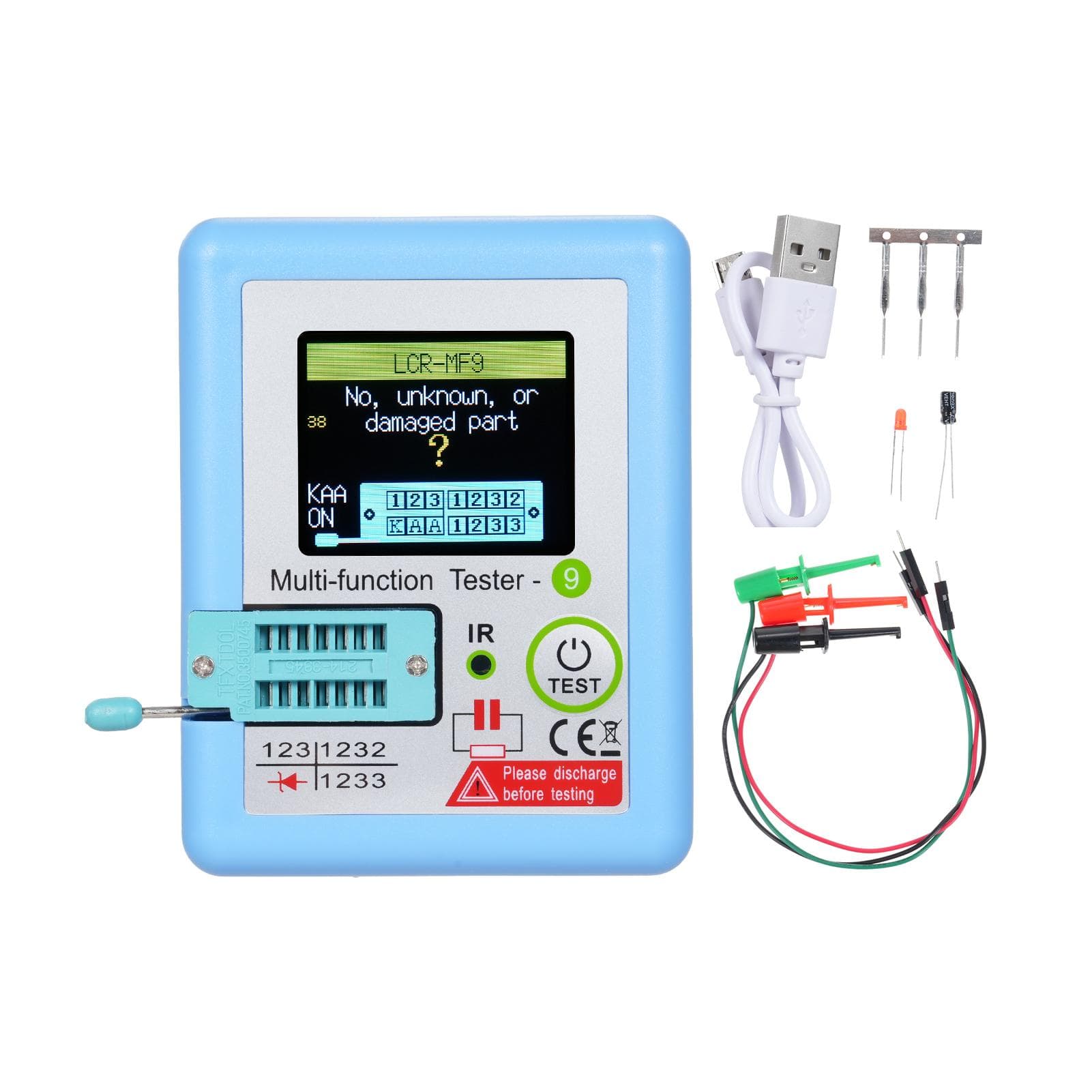

LCRMF9 1.8 TFT LCD Display Multimeter Transistor Tester Diode Triode Capacitor Resistor Test blue

About this item

• Features: Builtin 300mAh 3.7V lithium battery, can be rechargeable. Display using TFT 1.8inch color screen display, graphical display of various parameters. Automatically detects components such as NPN and PNP transistors, Nchannel and Pchannel MOSFETs, IGBT diodes (including double diodes), thyristors, transistors, resistors and capacitors. Automatically test the pin layout of the component and graphically display it on the color screen. Can detect infrared code (support NEC format infrared remote control). Detects the amplification factor and base of transistors, MOSFET protection diodes, etc. Determines the forward bias voltage of emitter transistors. Can distinguish between depletion type and enhancement type MOSFETs. Measurement of gate threshold voltage and gate capacitance of MOSFETs. Supports measurement and symbol display of two resistors with a resolution of 0.1 ohm and a maximum measurement value of 50 megohms. Capacitance higher than 10UF can display VOSS and ESR. Resistance below 2100 Ohm will measure inductance, inductance below 10UH will only measure DC resistance. High test speed, valid component test: in 2 seconds (except in the larger capacitors, large capacitance measurement also need a longer time). Equipped with a calibration needle, calibrated to test small resistors more accurately. One button operation, power on test. Power consumption off mode: less than 20 nA. Automatic shutdown function, saving battery energy, improve battery life. ? Specifications: Model: LCRMF9 Material: ABS Capacitance: 25pF~100mF Resistance: 0.01~50M Ohm Inductance: 0.01mH~20H Battery: 0.1~4.5V Item Size: 90 * 70 * 27mm 3.54 * 2.76 * 1.06in Item Weight: 84g 2.96oz Package Weight: 102g 3.6oz Package Size: 17 * 12 * 2.7cm 6.69 * 4.72 * 1.06in ? Package List: 1 * Transistor Tester 1 * USB Cable 3 * Test Cable
