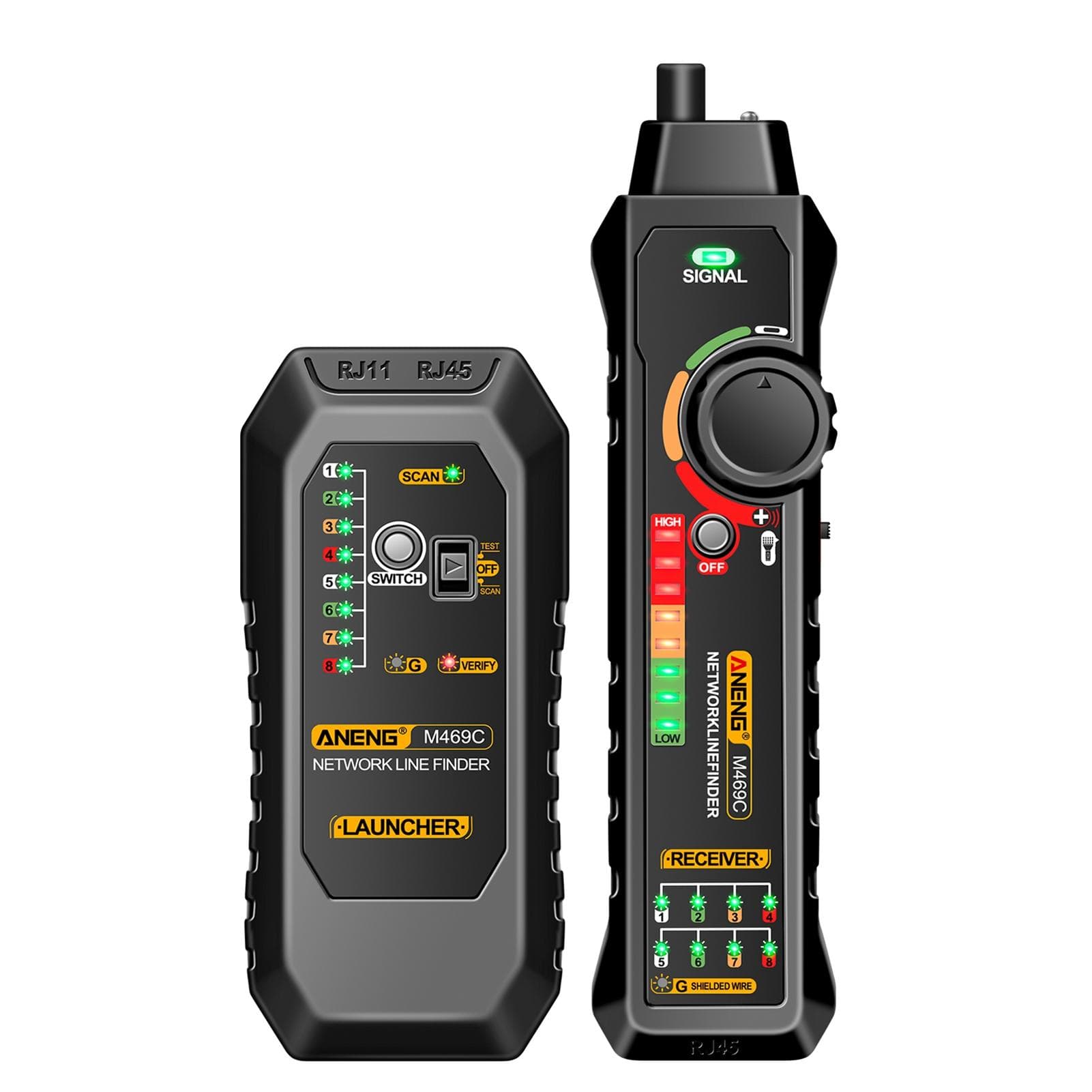

ANENG M469C Multifunction Network Cable Finder RJ45 RJ11 LAN Cable Tester Networking Tool Wire black

About this item

• Features: Versatile Functionality: The multifunction network cable finder is designed for comprehensive network line searching, telephone line searching, power line inspection, and openshort circuit testing. It also Features DC voltage testing and a low voltage warning for enhanced safety and reliability. Accurate LAN Cable Testing: The LAN cable tester ensures precise testing with adjustable volume and headphone listening capabilities, making it ideal for detecting issues in network cables with RJ11RJ45 interfaces. This tool is essential for maintaining optimal network performance. Efficient Trace and Measure: The trace measure network repair analyzer is equipped with a builtin flashlight, providing convenience for working in lowlight conditions. Its ABS plastic construction ensures durability and longlasting use, making it a reliable choice for network repair tasks. Comprehensive Network Testing: The network cable tester is powered by a 6F22 9V battery (not included), offering flexibility and portability. Its multifunctional design allows for thorough testing and troubleshooting of network lines, ensuring efficient network maintenance and repair. Reliable Network Line Finding: The network line finder is an indispensable tool for professionals, providing accurate and efficient network line finding capabilities. Its userfriendly design and robust Features make it a valuable addition to any network maintenance toolkit. Function: 1. Telephone Line Tracing Function (1) Insert the phone line with a crystal head into the transmitter socket RJ11; (2) Turn the function selection switch of the transmitter to the seek line position, and the seek line indicator light will flash, indicating that the transmitter is working normally; (3) Press the receiver button downwards to open the receiver, and use the receiver probe to query the desired target cable; 2. Network Line Tracing Function (1) Insert the phone line with a crystal head into the transmitter socket RJ45; (2) Turn the function selection switch of the transmitter to the seek line position, and the seek line indicator light will flash, indicating that the transmitter is working normally; (3) Press the receiver button downwards to open the receiver, and use the receiver probe to query the desired target cable; 3. Power Cable Line Tracing Function (1) Connect the transmitter and the metal wire to be searched with a crocodile clip, and insert one end into the transmitter; (2) Turn the function selection switch of the transmitter to the seek line position, and the seek line indicator light will flash, indicating that the transmitter is working normally; (3) Press the receiver button downwards to open the receiver, and use the receiver probe to query the desired target cable; (Compare the size of the beep sound and the brightness of the signal indicator light. The line that emits the loudest beep sound and the brightest indicator light is the target line to be searched for.) 4. Network Cable Campus Team Function (1) Insert the RJ45 connectors at both ends of the network cable to be tested into the corresponding interfaces of the transmitter and receiver; (2) Turn the function selection switch of the transmitter to the Line to Line position, and the line sequence light will flash, indicating that the transmitter is working normally; (3) Determine the characteristics of short circuits, open circuits, open circuits, and crossover lights based on 18 line sequence lights; (4) During the testing process, you can lightly touch the function switch button to switch between fast and slow gears. (Using automatic scanning method for rapid testing, testing of twisted pair wires 1, 2, 3, 4, 5, 6, 7, 8, G one by one (pair), and distinguishing which one (pair) is out of order, short circuited, or open circuited). 5. Open Circuit and Short Circuit Testing Function Turn the function selection switch of the transmitter to the Line to Line position, and press and hold the Switch button of the transmitter for more than 2 seconds until the Line sequence light changes from flashing to constant. Insert the crystal head with crocodile clip into the RJ11 socket, and use the two clips of the crocodile clip to clamp the two ends of the test line. If there is a short circuit, the scanning red light of the transmitter will light up, and the impedance on the line can be represented by the brightness of the status indicator light: the brighter the light, the smaller the impedance; The darker the light, the greater the impedance. 6. DC Level Testing Function Turn the function selection switch of the transmitter to the line finding position, and press and hold the switch button of the transmitter for more than 2 seconds until the line finding light goes out and the line sequence light flashes. Insert the crystal head with crocodile clip into the RJ11 socket, and use the two clips of the crocodile clip to clamp the two ends of the test power supply. If the scanning light is red, the positive pole is clamped by the red. If the scanning light is green, the negative pole is clamped by the red. The level can be determined by the brightness of the scanning light : the brighter the light, the higher the level; The darker the light, the lower the level. 7. Low Voltage Prompt Function When the function selection switch of the transmitter is turned to the line finding position, if the battery voltage is below 6V, the scan light and line sequence light of the transmitter will flash simultaneously, reminding the user to replace the battery. 8. Earphone Function In noisy environments, headphones can be inserted for operation to avoid external interference. 9. Lighting Function In dark or low light environments, you can toggle the lighting switch upwards to turn on the lights, making it convenient for you to continue working as usual. 10. Sensitivity Adjustable Function When searching for a line, you can turn the adjustment knob on the receiver until the eight intensity indicator lights are lit up to the appropriate level of sound. 11. Energy Saving Automatic delayed shutdown. After about 1 hour of startup, the line finder transmitter will automatically enter the shutdown state. Usage Precautions: 1. Do not touch the probes directly with your hands to avoid electric shock and ensure personal safety during testing. 2. Before use, inspect the test probes to ensure there is no damaged insulation or exposed metal. 3. Do not use the current and voltage ranges interchangeably to prevent damage to the instrument. 4. It is best to remove the batteries when not in use for a long time to prevent battery corrosion of other internal components of the instrument. 5. If you do not know the magnitude of the voltage or current to be measured, start with the highest range and then select the appropriate range based on the measured value. Specifications: Color: Black Red (Optional) Model: M469C Material: ABS plastic Battery: 6F22 9V battery (Not included) Interface End: RJ11 RJ45 Flashlight: Equipped with a flashlight Network Line Tracing: √ Telephone Line Tracing: √ Network Cable Proofreading: √ Power Cable Line Tracing: √ DC Level Test: √ Low Voltage Prompt: √ Single and Dual Audio Switching: √ Open Circuit and Short Circuit: √ Lighting Shield Line: √ Auto Close: Automatically close after 1 hour Headphones: no interference when plugged in a noisy environment Transmitter Size: 127 * 56.5 * 28mm 5 * 2.22 * 1.10in Receiver Size:? 185 * 46 * 31.5mm 7.28 * 1.81 * 1.24in Transmitter Weight: 62g 2.18oz Receiver Weight: 77g 2.71oz Package Weight: 288g 10.15oz Package Size: 22.5 * 12.5 * 5.5cm 8.85 * 4.92 * 2.16in Package List: 1 * Receiver 1 * Transmitter 1 * Crocodile Clip 1 * Headphones 1 * RJ11 Adapter 1 * RJ45 Adapter 1 * Storage Bag 1 * User Manual (English)
