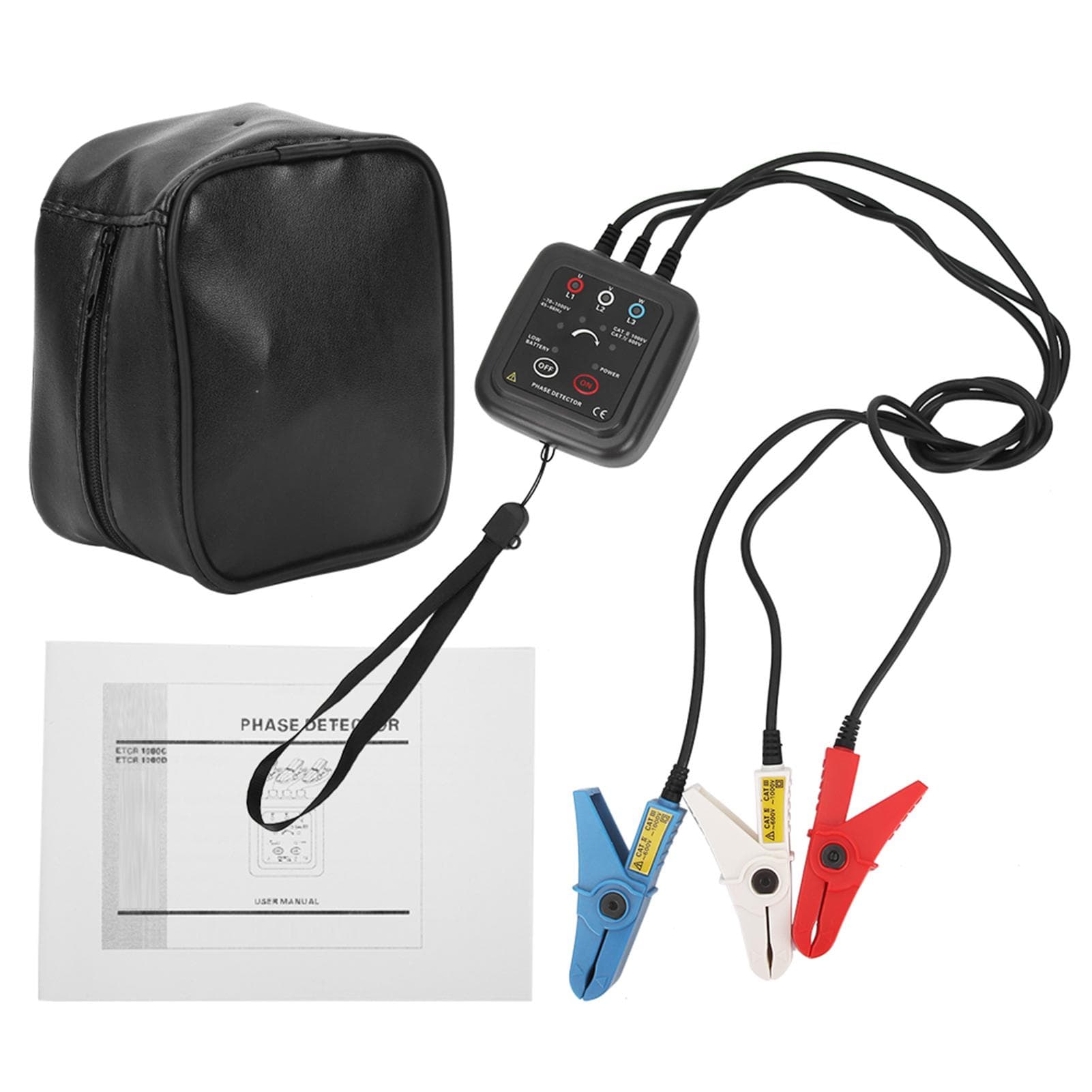

AC 701000V ETCR1000C Non Contact Phase Sequence Detector Magnetic Base Phase Meter

About this item

• Feature: Phase sequence detection, live line check, simple power check, live wire identification, phase loss judgment, wire break position search, DC line break point detection, line maintenance. Noncontact inspection for safe and fast productivity. The dynamic sound and light indicates the positive or negative phase of the phase sequence of the threephase power supply, which is clear at a glance. The bottom plate of the instrument is equipped with 4 magnets, which can be attached to the metal casing of the equipment during testing, and the operation is convenient and convenient. Specification: Model ETCR1000C Functions Phase detection (Positive phase, reverse phase and phaseloss), Live wire examination, Simple Power detection, Breakpoint location and Line maintenance. Power Supply DC 3V2*AA Alkaline dry battery , Continuously working for 70 hours AC 70 1000V, 4065Hz (Sine Wave Continuous Input) Clamp Wire Size External Diameter 1.616mm LED Display (Positive Phase Sequence) The four phasesequence lamps light in order (clockwise). (Negative Phase Sequence) The four phasesequence lamps light in order (counterclockwise). (Phase Loss) L1 or L2 or L3 does not light. (Short Circuit)L1 or L2 or L3 does not light. Buzzing (Positive phase) The instrument emits intermittent short beeps; (Reverse phase) The instrument emits a continuous long beep. Power On Indication Power on indication light turns on; Low power, low battery light on Magnetic force Four magnets on the back of the meter, which are attached to the distribution box and can withstand 800g quality. Auto Power off After 5 minutes, the meter automatically cut off power supply. Meter Dimension Width, height, thickness 70mm*75mm*30mm Clamp Length 0.6m Weight 317g Working Temperature and Humidity 10 celsius 55 celsius ; below 80percent rh Storage Temperature and Humidity 20 celsius 60 celsius ; below 90percent rh AC 1000V Dielectric Strength 5.4kVrms Maximum rated Power 100mVA Safety Provisions Package list: 1 * NonContact Phase Sequence Detector 1 * User Manual Note: The actual product color may deviate from the photo due to light. There may be a slight deviation in the measurement of product. .Phase sequence detection, live line check, simple power check, live wire identification, phase loss judgment, wire break position search, DC line break point detection, line maintenance. Clamptype noncontact inductive measurement, no need to open the wire, no need to touch the highvoltage exposed fire wire, directly sandwich the three superinductive highinsulation clamps to the insulation skin of the threephase live wire to detect Noncontact inspection for safe and fast productivity. The dynamic sound and light indicates the positive or negative phase of the phase sequence of the threephase power supply, which is clear at a glance. The bottom plate of the instrument is equipped with 4 magnets, which can be attached to the metal casing of the equipment during testing, and the operation is convenient and convenient.
